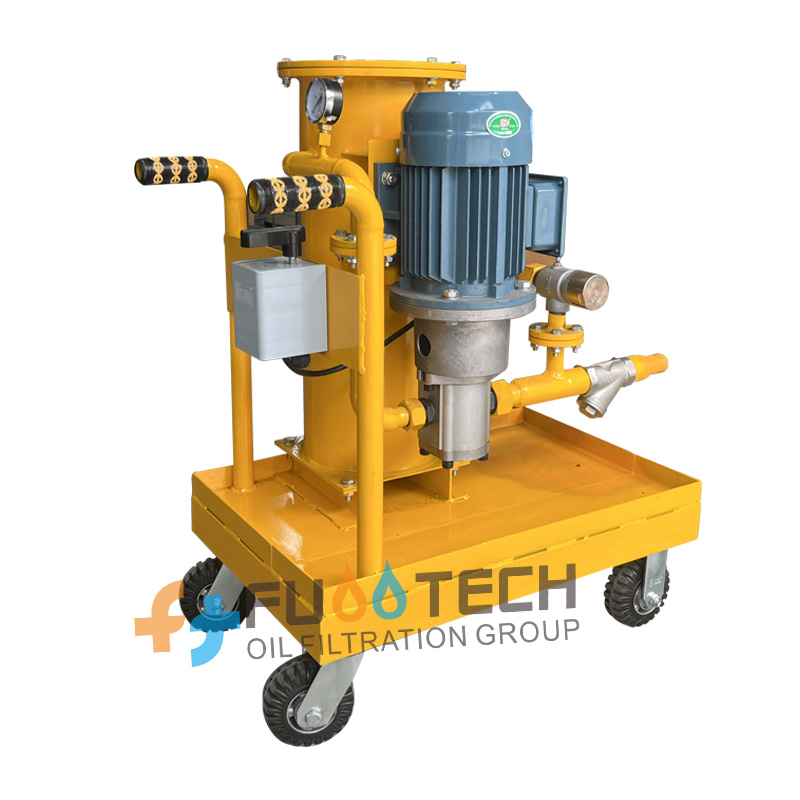

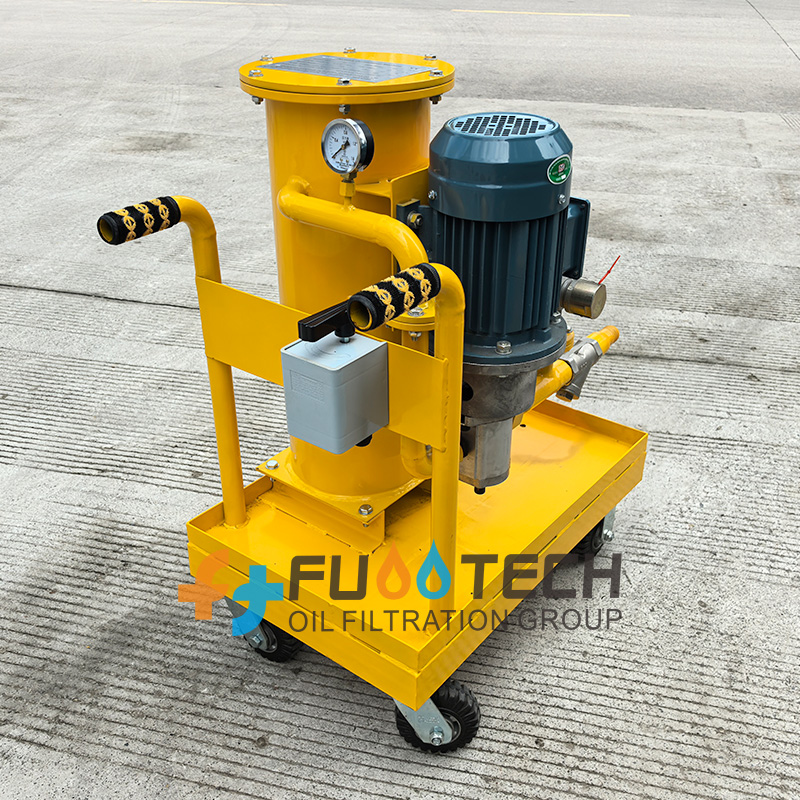

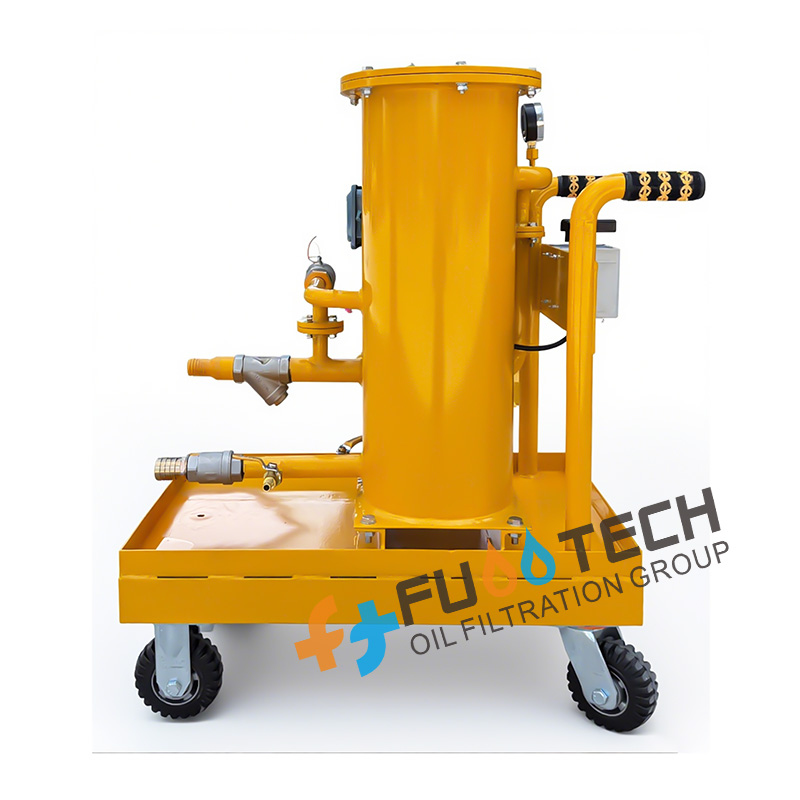

PO-40 40L/min Portable Oil Purifier and Transfer Unit Oil Filtration Cart

PO oil filtration cart developed by FUOOTECH is mainly dealing with unqualified insulating oil, turbine oil, lubricating oil etc., its design is simple, compact, practical and easily to move and maintenance.

PO portable oil purifier and transfer unit consists of motor-driven special gear pump and multi-stage filters for filtering dirty oils by removing various sizes of particles & impurities. Small and flexible size, easy to operate and requires no filter paper and causes no contamination to the ground. It has a wider application than ordinary filter press and has a long lifetime, being a new substitute for frame filter press.

This oil filtration cart also can conveniently filter the oil of venous hydraulic and lubricating systems and also can be connected to the system as a bypass filter.

Features

1). Compact structure, small volume, light weight, easy to carry.

2). Internal use filter element to filter, repeated use, save cost, not contaminated sites.

3). Filtration precision, the product specifications can be free to choose according to need.

 4). Can be made into explosion-proof type, used at dangerous working area.

 5). Hi-Quality & Durable Oil Pump installed with long distance pumping capacity.

 6). has large route, strong capability of holding dirt and can be used for a long time.

7). Stable and safe Operation with low noise.

8). Can be designed to include the oil storage tank, heater, trolley, full stainless steel materials, etc.

Working Principle

Oil suction point is equipped with a coarse filter to protect pump, and prolong the service life of main two filters. Filter precision can be adjusted and changed according to client's actual need.  This machine can do precision filtering, it usually equips three-stage filters, also can equip four or five stage filters as per user's requirements . Light weight, easy operation, it can be used as oiling machine for long distance and high-lift oiling works.

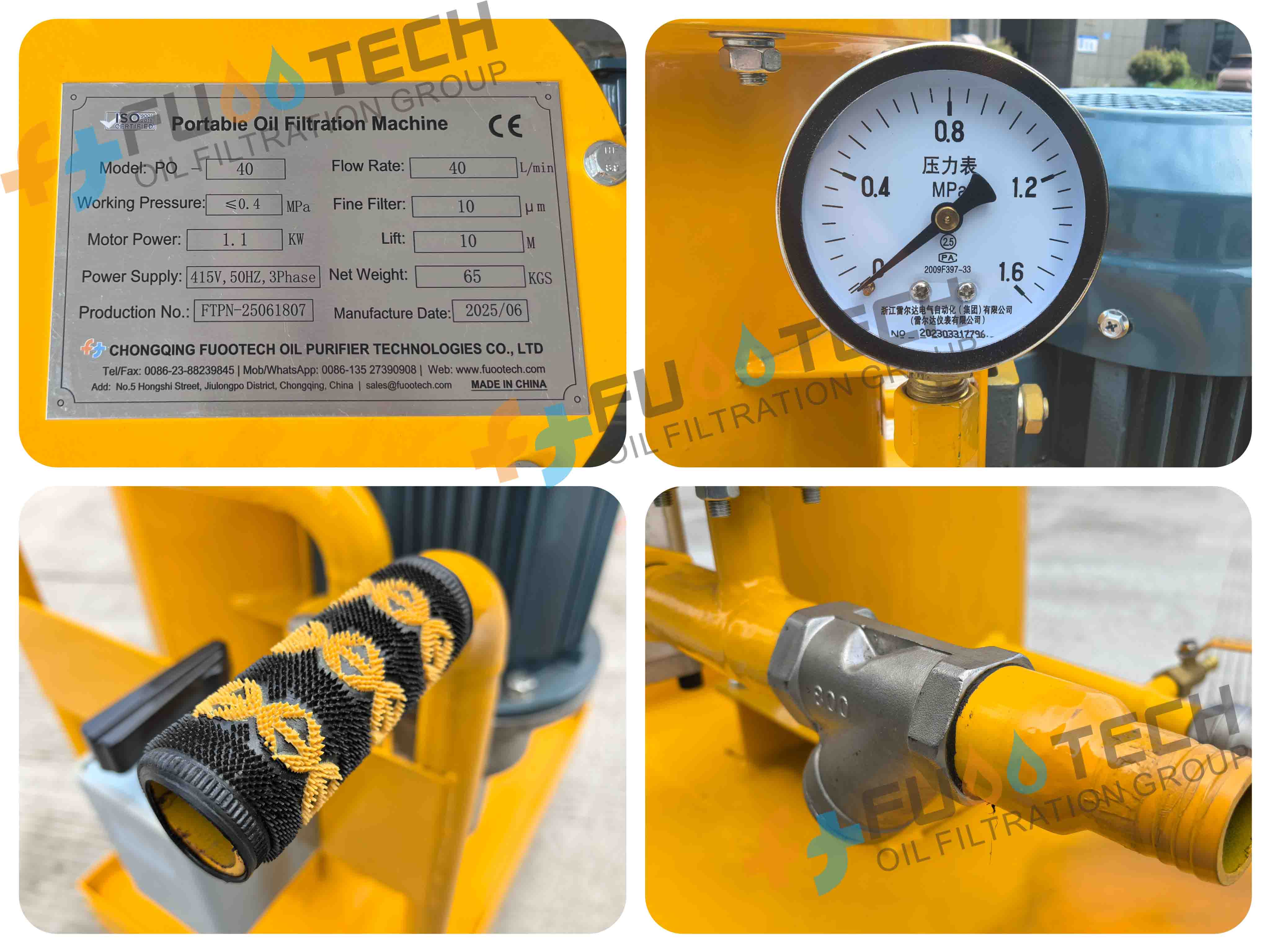

Pressure Gauge monitors the working status of machine and pollution levels continuously. It is also used for oil transferring/ filling at working fields, suitable for field portable assignments and aerial work, while oil filling, filtration is also done at same time.
