Closed Cup Transformer Oil Flash Point Tester

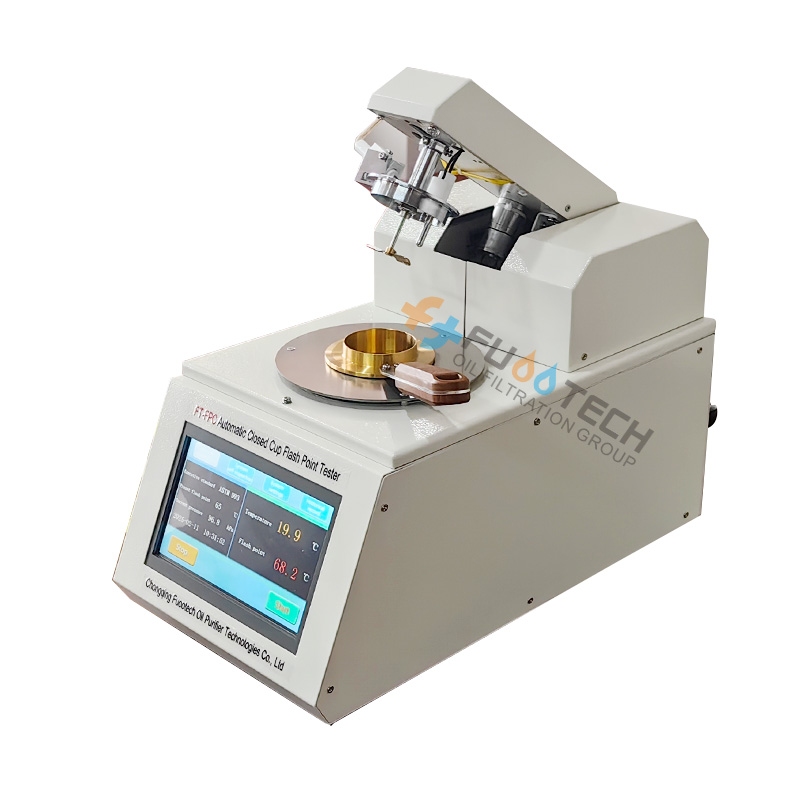

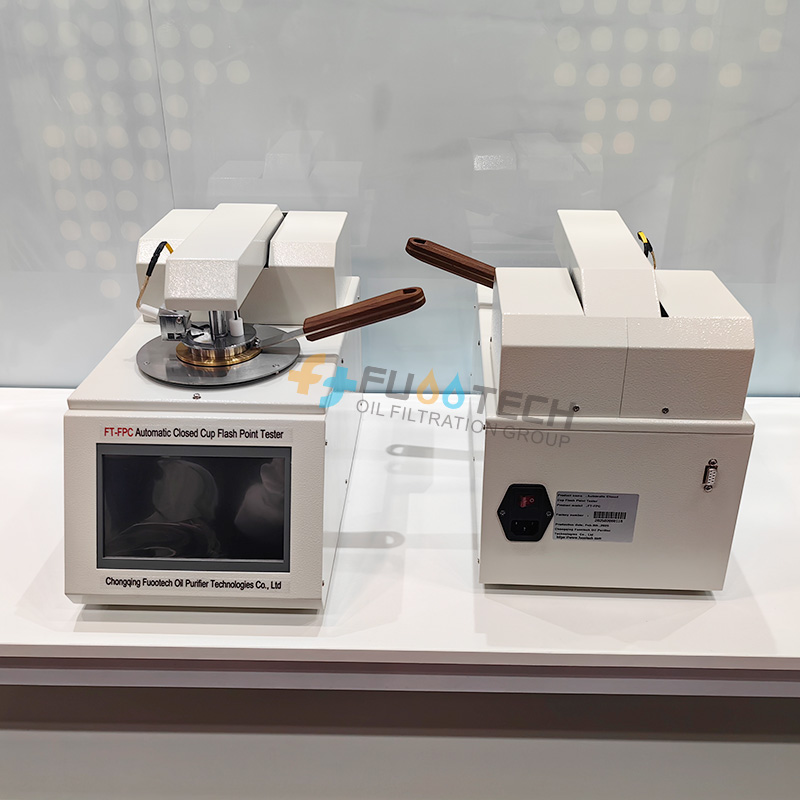

The FUOOTECH’s FT-FPC Automatic Closed Flash Point Tester is designed and made as per the National Standard of People’s Republic of China GB/T261-2008; GB/T21615-2008; European standard ASTM-D93, it is an advanced analytical instrument, mainly used to determine the closed flash point of petroleum products. This Automated Closed Cup Flash Point Tester is controlled by microcomputer. It is automatic electronic ignition without the need of gas source. It is reliable and easy to operate with self-test function, high measurement accuracy, good repeatability and stable performance. It is an ideal instrument for closed flash point testing in electrical power, petroleum, chemical, power, environmental protection, railway and scientific research, etc.

Functions & Features

1). 7-inch industrial color touch screen display, no mechanical contacts, dustproof and waterproof, anti-radio frequency interference, long service life. 2). Equipped with parameter prompt function such as test date and test time. 3). Built-in Germany automatic atmospheric pressure detector: automatic to detect and correct the atmosphere pressure; self-adjust the flash point.

4). Able to store 999 testing data.

5). With imported PT100 sensor for differential detection, automatic correction of system deviation.

6). Cover opening, ignition, detection and printing data are automatically completed.

7). Large-caliber air duct and large air volume fan quickly cools down to shorten the test time.

8). Use built-in battery to ensure that test data can be stored for 5 ~ 8 years even when the external power is off.

9). Built-in high speed thermal printer, quieter, faster and clearer.

Technical Parameters
