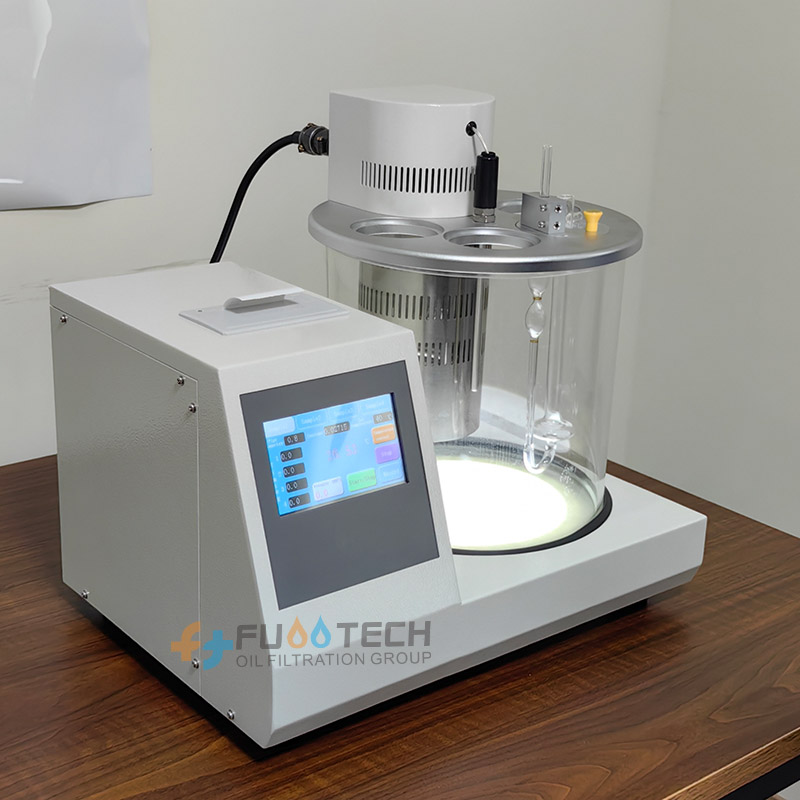

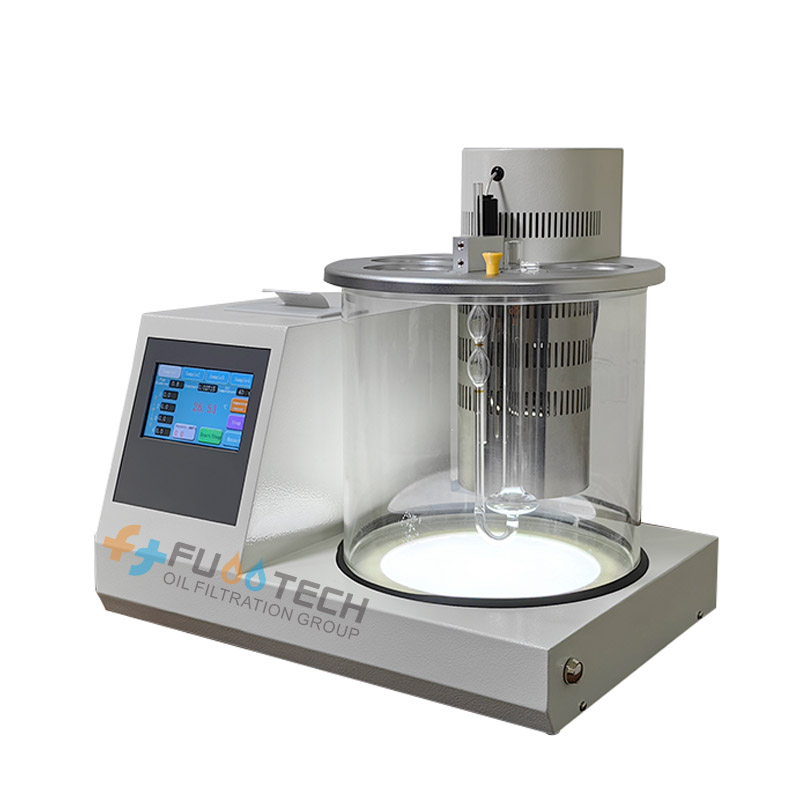

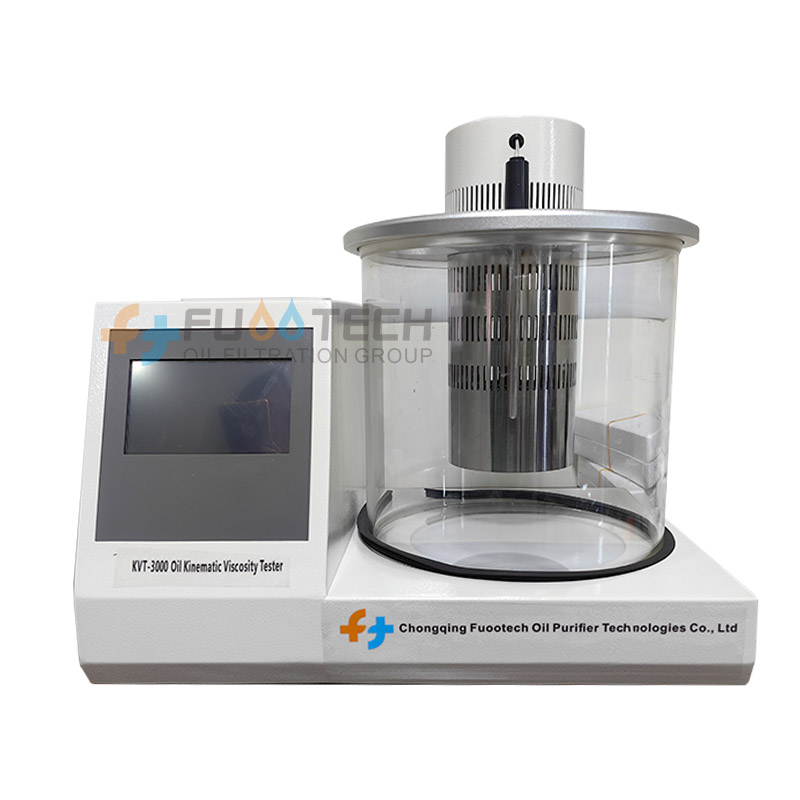

Oil Kinematic Viscosity Tester

Model No.: KVT-3000

KVT-3000 Kinematic Viscosity Tester is designed and made as per GB/T265-88 "Test Methods for Kinematic Viscosity of Petroleum Products and Calculation of Dynamic Viscosity" and ASTM D445 standard. It is suitable to determine kinematic viscosity of liquid petroleum products (Newton liquids) at a certain temperature. It can test various petroleum products such as lubricant oil, diesel oil, fuel oil, waste oil, transformer oil, etc. which widely used in the main industries including petroleum, chemical industry, metallurgy, electric power, transportation, commodity inspection and scientific research, etc.

Inquiry Now

Detailed Description

Inquiry Now

Feature & Functions

1). Adopt high-speed CPU and high-precision AD, unique hardware circuit design;

2). Adopting patch technology, the whole machine has no adjustable potentiometer, which has high reliability and high measurement accuracy;

3). Adopt 5-inch industrial color touch screen, no mechanical contact, dustproof and waterproof, anti-radio frequency interference, long service life;

4). High-precision clock, built-in battery to ensure that external power-down data is stored for 5-8 years;

5). The original imported PT100 sensor is used, and the temperature measurement is fast and accurate;

6). Simultaneously perform asynchronous measurement for 4 samples, automatic constant temperature, automatic timing, and automatic calculation;

Technical Parameters

Performance Standard

GB/T265-88, ASTM D445, IP71, etc.

Liquids to be Tested

lubricant oil, diesel oil, fuel oil, waste oil, transformer oil, etc.

Method of Display

Color LCD touch screen

Temperature Control Range

Room temperature ~ 150ºC

(Another model with refrigeration equipment is required if lower than room temperature)

Temperature control point

20℃, 40℃, 50℃, 80℃, 100℃;

any value (higher than room temperature ~150℃)

Temperature Control Accuracy

±0.1ºC

Timing Range:

0 ~ 999.9S

Timing Accuracy

0.01S

Sample Installing Quantities

4 pcs

Pinkevitch Viscometer

0.4~6.0

Printer

Thermal printer, high-speed and lower consumption

Temperature Testing Components

Imported precise platinum electric resistance (PT100)

Temperature Control Mode

PID control

Auxiliary light

LED

Stirring Speed

(1200±12) r/min

Heating Power

Max. 1000W

Power Supply

AC220V±10%, 50Hz

Ambient Temperature

Room temperature ~ 45ºC

Ambient Humidity

<85% RH

Dimension (L×W×H)

550×360×430mm

Weight

15Kg

Performance Standard	GB/T265-88, ASTM D445, IP71, etc.
Liquids to be Tested	lubricant oil, diesel oil, fuel oil, waste oil, transformer oil, etc.
Method of Display	Color LCD touch screen
Temperature Control Range	Room temperature ~ 150ºC (Another model with refrigeration equipment is required if lower than room temperature)
Temperature control point	20℃, 40℃, 50℃, 80℃, 100℃; any value (higher than room temperature ~150℃)
Temperature Control Accuracy	±0.1ºC
Timing Range:	0 ~ 999.9S
Timing Accuracy	0.01S
Sample Installing Quantities	4 pcs
Pinkevitch Viscometer	0.4~6.0
Printer	Thermal printer, high-speed and lower consumption
Temperature Testing Components	Imported precise platinum electric resistance (PT100)
Temperature Control Mode	PID control
Auxiliary light	LED
Stirring Speed	(1200±12) r/min
Heating Power	Max. 1000W
Power Supply	AC220V±10%, 50Hz
Ambient Temperature	Room temperature ~ 45ºC
Ambient Humidity	<85% RH
Dimension (L×W×H)	550×360×430mm
Weight	15Kg
