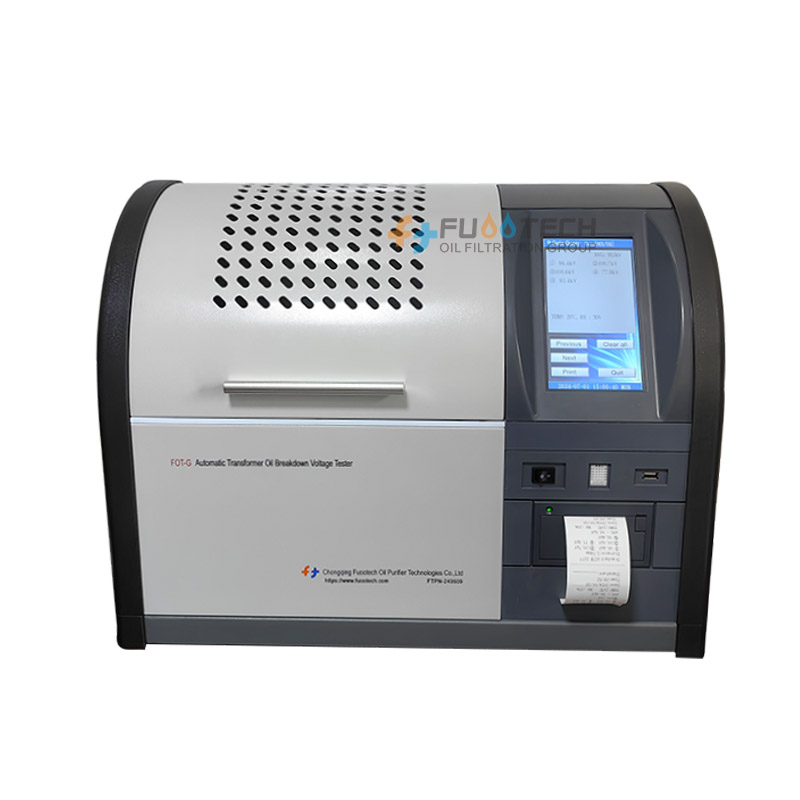

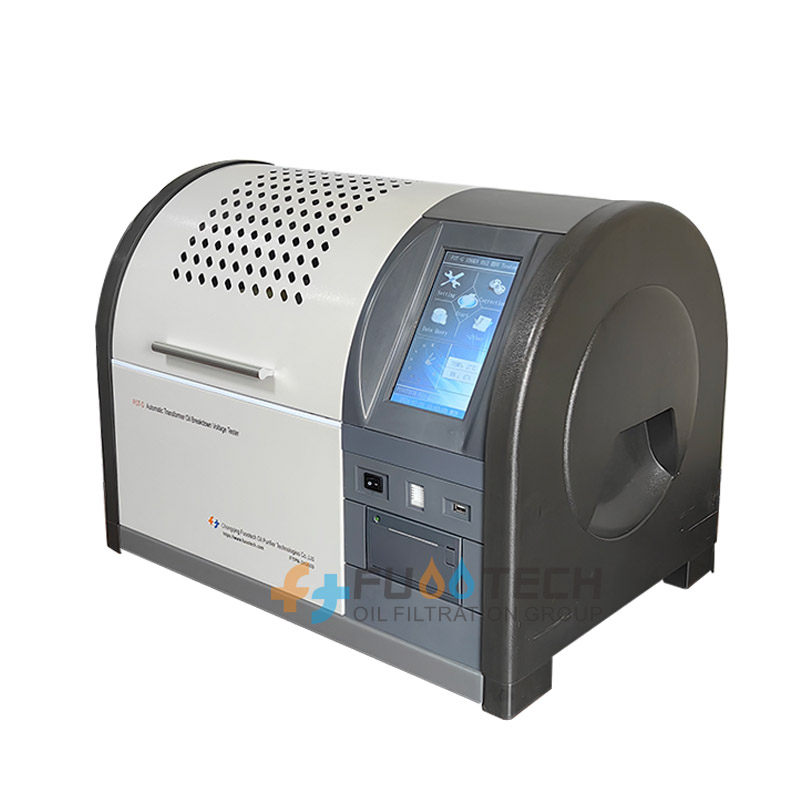

Model No.: FOT-G

Automatic 80KV/100KV Transformer Oil Dielectric Strength Tester Oil BDV Tester is also known as Oil Breakdown Voltage Tester or Oil BDV Tester. Break-down voltage is measured by observing at what voltage, sparking string between two electrodes immersed in the oil, separated by specific gap. low value of BDV indicates presence of moisture content and conducting substances in the oil. Our product FOT-G Fully Automatic Oil Dielectric Strength Test Set (Touch Screen Control Type) meets multi testing standards

Inquiry Now

Detailed Description

Inquiry Now

Automatic 80KV/100KV Transformer Oil Dielectric Strength Tester Oil BDV Tester is also known as Oil Breakdown Voltage Tester or Oil BDV Tester.

Break-down voltage is measured by observing at what voltage, sparking string between two electrodes immersed in the oil, separated by specific gap. low value of BDV indicates presence of moisture content and conducting substances in the oil. Our product FOT-G Fully Automatic Oil Dielectric Strength Test Set (Touch Screen Control Type) meets multi testing standards

There are a large number of electrical equipment in power system factories and mines. Its internal insulation is mostly oil-filed and insulated. The dielectric strength test of insulating oil is a must-test routine test item. In order to meet the needs of the rapid development of the power industry, our company has taken the lead in developing FOT-G Series Fully Automatic Dielectric Strength Oil Analysis Equipment (Touch Screen Control Type) with multi testing standards

TECHNICAL PARAMETERS

Parameters	Specifications
Model	FOT-G
Brand	FUOOTECH
Power supply	AC220V±22V, 50Hz±2.5Hz
Display	Colorful LCD touch screen
Output voltage range	AC 0~80KV (100KV can be designed)
Rate of voltage rise	0.5, 1.0, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0kV/s (selectable)
Max. test times	10
Stir	Yes or No
Wait time	0~15m
Booster capacity	1.5KVA
Resolution	0.1KV
Voltage measurement error	±3%
Total voltage distortion rate	＜3%
Power Consumption	200W
Weight	35kg
Size	590 mm×440mm×430mm
Working environment	Room temperature to 40°C, humidity<85%
Certificate	CE, ISO 9001
Warranty	12 months
Calibration Certificate	Issued by factory

Features

1. Simple operation, fully automatically (can be finished just press on key).


Able to detect the ambient temperature and humidity.

With a microprocessor, automatically fulfill the withstand voltage test for oil circulation with a range of 0 ～ 80kV or 100kV(including boosting, maintaining, mixing, standing, calculation, printing and other operations).

Large colorful touch screen menu controlled, clearly displaying the whole testing status and result.

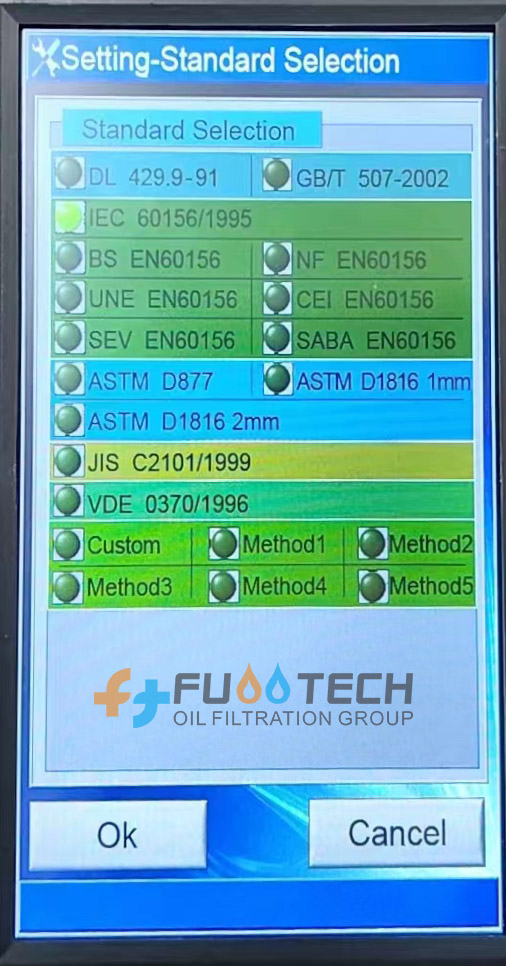

Pre-programmed more than 14 test standards such as DL 429.9-91, GB/T 507-2002, IEC 60156/1995, BS EN60156, NF EN60156, CEI EN60156, SEV EN60156, SABS EN60156, UNE EN60156, VDE 0370, JIS C2101/1999, ASTM D877, ASTM D1816, etc., and there are 5 user-programmed methods and custom test modes. Very convenient for different users to choose freely.

Power-down preservation, system time can go on running under power off.
