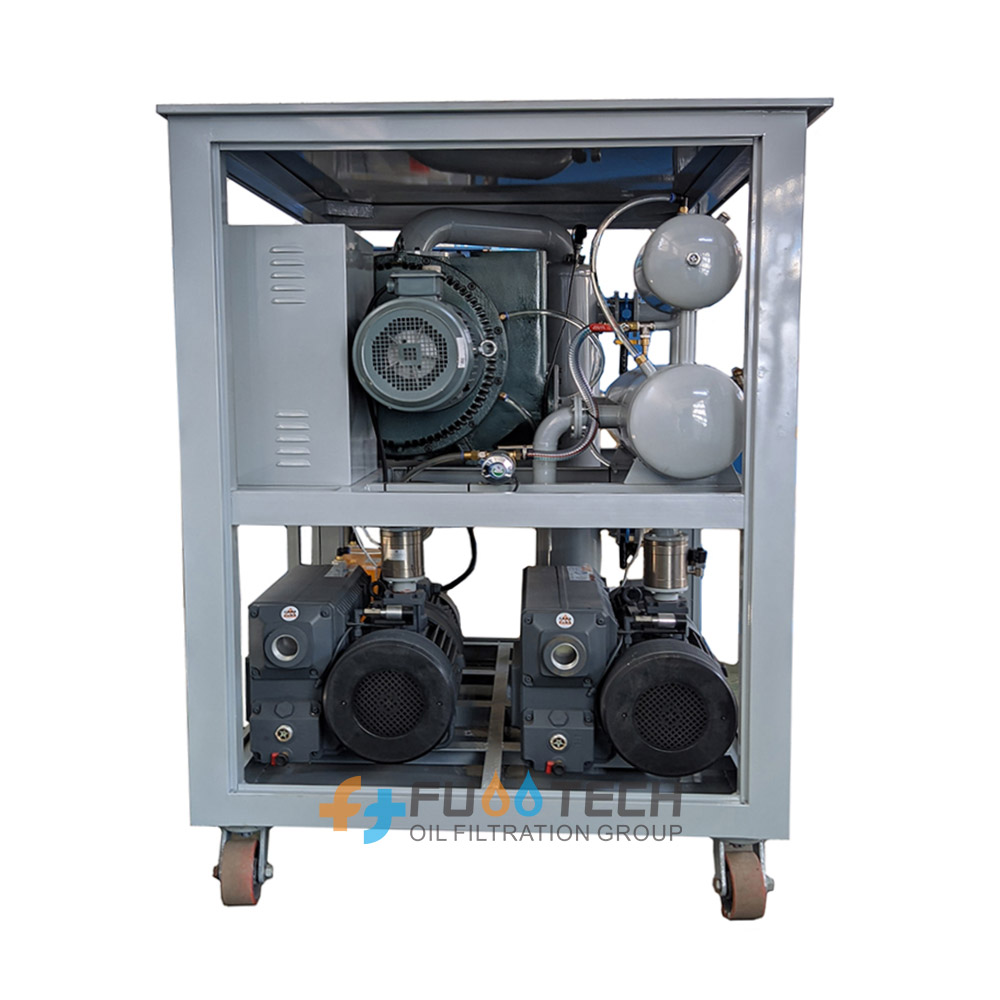

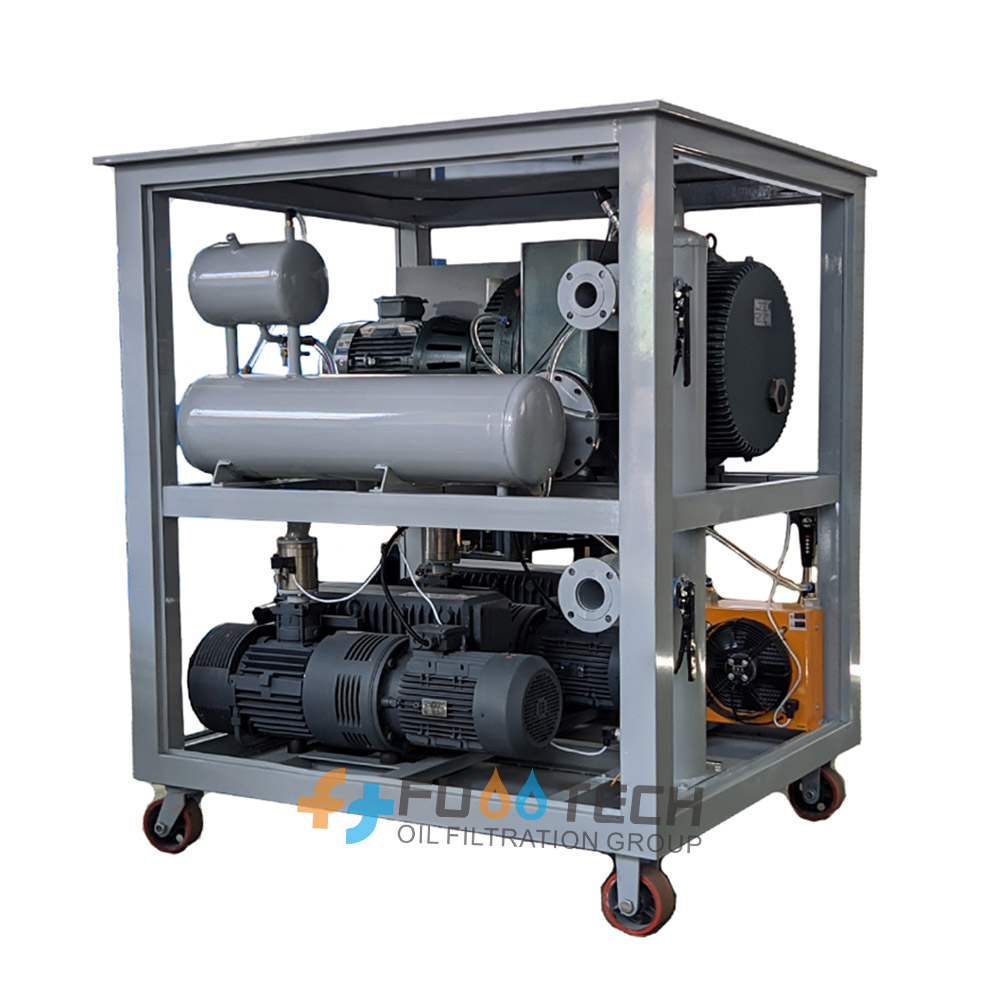

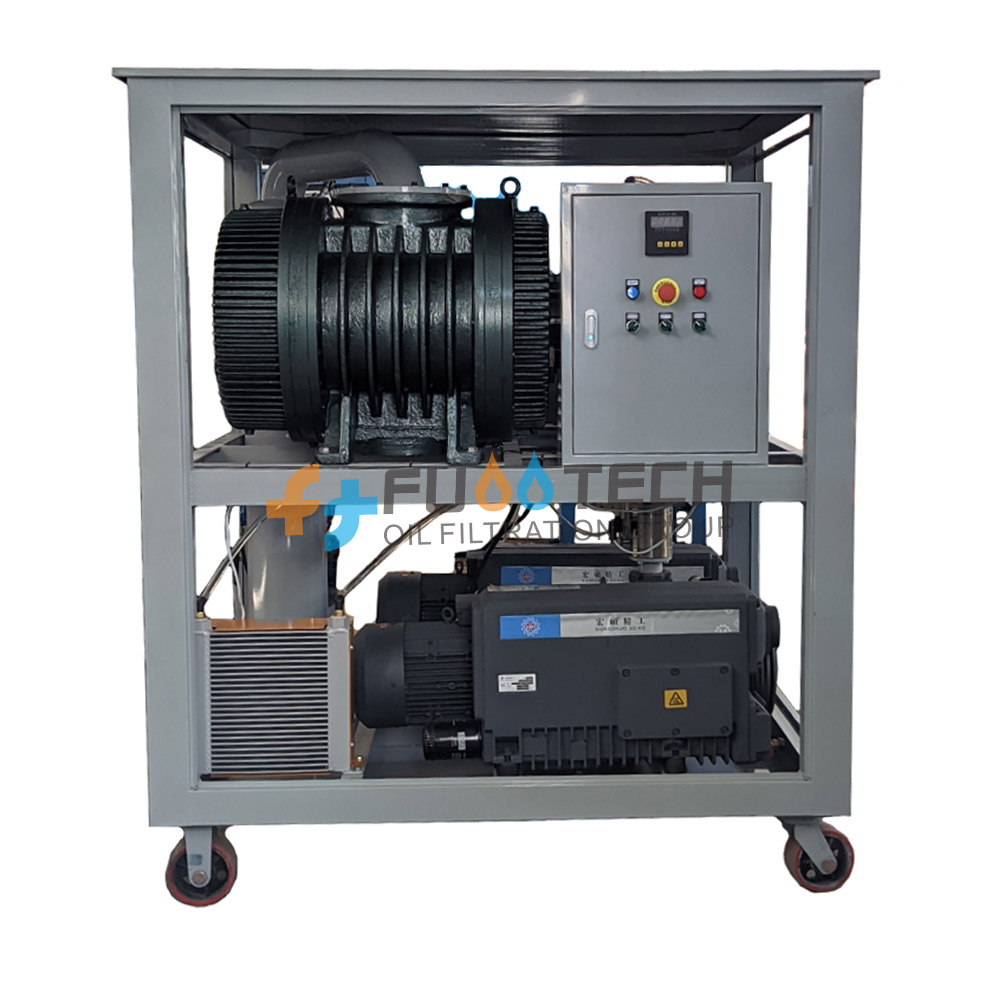

The FTVS series vacuum pump set is composed of a Roots pump (mechanical booster pump) as the main pump and a rotary vane vacuum pump as the backing pump. This unit is mainly used for vacuuming and drying various vacuum systems that require large pumping speeds and medium and high vacuum. It is especially suitable for vacuuming operations on transformers.
Technical Parameters
|
Technical Parameter |
FTVS-30 |
FTVS-70 |
FTVS-150 |
FTVS-300 |
FTVS-600 |
FTVS-1200 |
|
Nominal Pumping Speed (L/s) |
30 |
70 |
150 |
300 |
600 |
1200 |
|
Nominal Pumping Speed (m3/h) |
108 |
252 |
540 |
1080 |
2160 |
3500 |
|
Limited pressure (Pa) for Mechanical Booster Roots pump |
5×10-2 |
|||||
|
Limited pressure (Pa) for rotary vacuum pump |
6×10-2 |
|||||
|
Total Electric Power (kw) |
2.2 |
2.6 |
4.5 |
8.5 |
16.5 |
23 |
|
Roots Pump Type |
ZJP -30A |
ZJP -70A |
ZJP -150A |
ZJP -300A |
ZJP -600A |
ZJP -1200A |
|
Rotary Vacuum Pump Type |
X-25 |
X-40 |
X-100 |
X-202 |
X-300 |
2 sets of X- 300) |
|
Power Supply |
50Hz, 380V, 3 phase – or as per your requirement |
|||||
|
Noise dB (A) |
≤ 80 |
|||||
|
Continuous Working |
≥2000 Hours |
|||||
|
Cooling Method |
Air Cooled |
Air/Water Cooled |
||||
|
Gas Inlet Caliber (mm) |
DN50 |
DN80 |
DN100 |
DN160 |
DN200 |
DN250 |
|
Gas Outlet Caliber (mm) |
DN34 |
DN60 |
DN70 |
DN90 |
DN70 |
DN90 |
|
Overall Dimensions (cm) |
125×100×170 |
140×110×198 |
170×120×210 |
175×135×220 |
175×145×215 |
190×160×269 |
|
Weight (KGS) |
186 |
290 |
480 |
798 |
1160 |
1570 |
Features
1). The system consists of powerful dual vacuum pumping system including special Mechanical Booster Roots Pump - Rotary vane vacuum pump combination of vacuum pumps, so the vacuum pumping speed and pressure are obviously better than any other devices.
2). Working vacuum range and maximum vacuum degree are superior to other products.
3). Equipped with a control panel with buttons and main breaker for controlling the operation of the two pumps.
4). Consist of necessary high quality pipelines and valves to operate the system.
5). It is installed with special vacuum gauge for accurate indication.
6). Stable and reliable operation, low noise.
7). Lightweight and mobile frame.
8). Protection vessels to prevent oil intake into the vacuum booster and the vacuum pump.
9). Fully Enclosed for weather proof, can be used in outside fields (Optional).
10). Single-axle or Double-axle mobile trailer mounted for moving to outside conveniently (Optional).
