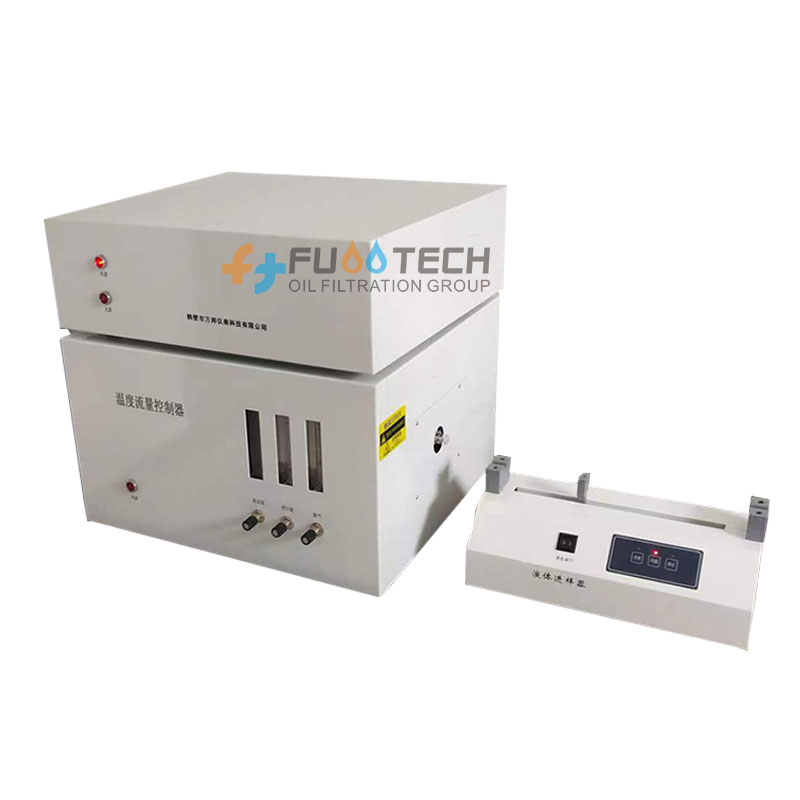

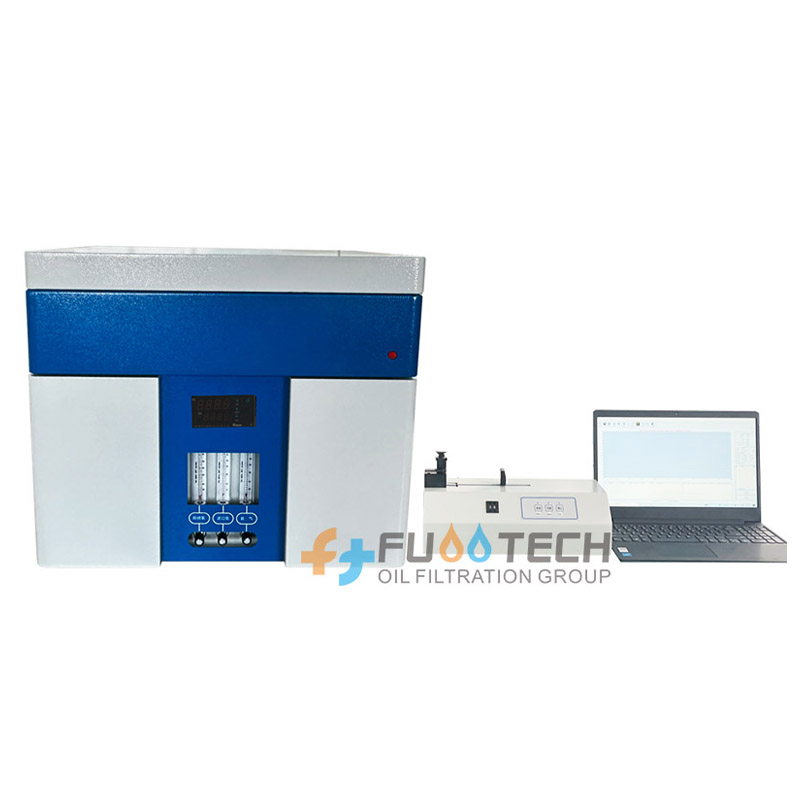

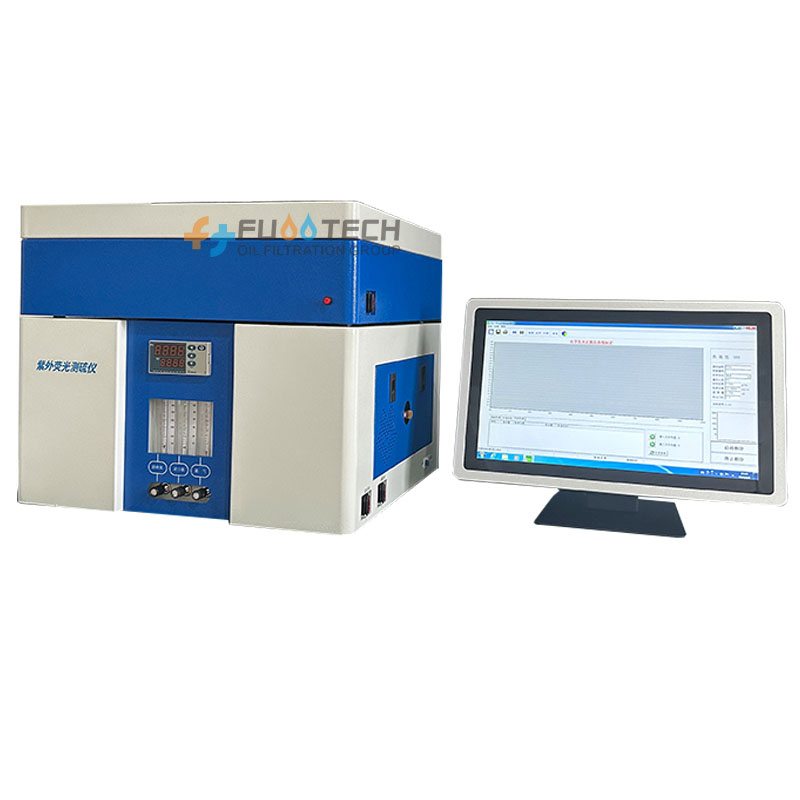

TS-3000 Ultraviolet Fluorescence Sulfur Content Tester is designed and manufactured according to the standards SH/T 0689-2000 Standard test method for determination of total sulfur in petroleum products, light hydrocarbons, automobile fuels and oils by ultraviolet fluorescence, it also comply with the international standards such as ASTM D 5453-2006, GB/T 34100 and EN ISO 20846:2004.
All key components of the instrument are imported from the United States and developed countries, which has the advantages of high sensitivity, low noise, wide linear range, strong anti-interference ability, high analytical precision, simple operation, and stable and reliable results.
This instrument is microcomputer-operated and has simple human-machine dialogue. It is widely used in petroleum, chemical industry, environmental protection, commodity inspection, aviation, electric power and other industries as well as universities and scientific research institutes.
Technical Parameters
Name
Technical indicators
Standard Components
TS-3000 Main Tester
Temperature & flow controller
Liquid injector
Quartz cracking tube
Photomultiplier tube
Data Acquisition Card
Membrane dryer
Optical Filters
UV lamp
Test Method
Ultraviolet fluorescence method to detect sulfur
Sample types
Liquid, solid and gas
Sample injection quantity
Solid sample: 1-20mg, Liquid sample: 5-20ul, Gas sample: 1-5mL
Measurement range
0.2 ~ 10000 ppm
Note: When the sample content is greater than 10000 mg/L, measure after dilution.
Measurement accuracy
Concentration value sample injection qty RSD(%):
0.2ppm 20ul 25
5ppm 10ul 10
50ppm 10ul 5
100ppm 10ul 3
5000ppm 10ul 3
Temperature control range
Room temperature to 1300℃
Air supply requirements
High purity oxygen: 99.9% above
High purity argon: 99.9% above
Power Supply
AC 220V±10% 50HZ±0.5Hz
Power
1500W
Dimension
510 x 460 x 430mm
Net weight
39 KGS
Features
1. Widely used to test the sulfur content in Liquid, solid and gas.
2. Connected with external desktop computer, Windows system, man-machine direct conversation platform, It can set all parameters and make the test by the keyboard operation.
3. Adopts the control technology of the computer to automatically collect, process, store and print all data. With the wide linearity range of measurement, strong capacity of resisting disturbance, easy operation and reliable test results.
4. With USB communication port, standard 24-bit data acquisition, and the minimum detection signal is less than 1 microvolt.
5. Data can be stored, retrieved, and printed at will, and related problems encountered can be solved based on on-site data files.
6. With the imported fluorescence excitation source,membrane desiccator,optical filter,metal encapsulated photomultiplier, It has the features of the high sensitivity,fast,stability,high precision,good consistency.
7. With the advanced temperature control system,fast and steadily warming rate,long service.
8. The high voltage of the photomultiplier tube (PMT) can be adjusted arbitrarily, and the standard curve calibration can adopt single-point or multi-point calibration, which is easy to operate.
9. Applicable for sulfur content in paraffin oil, diesel, gasoline, lubricating oil, fuel oil, liquefied gas and natural gas, and other oil products, chemical raw materials or finished products.
