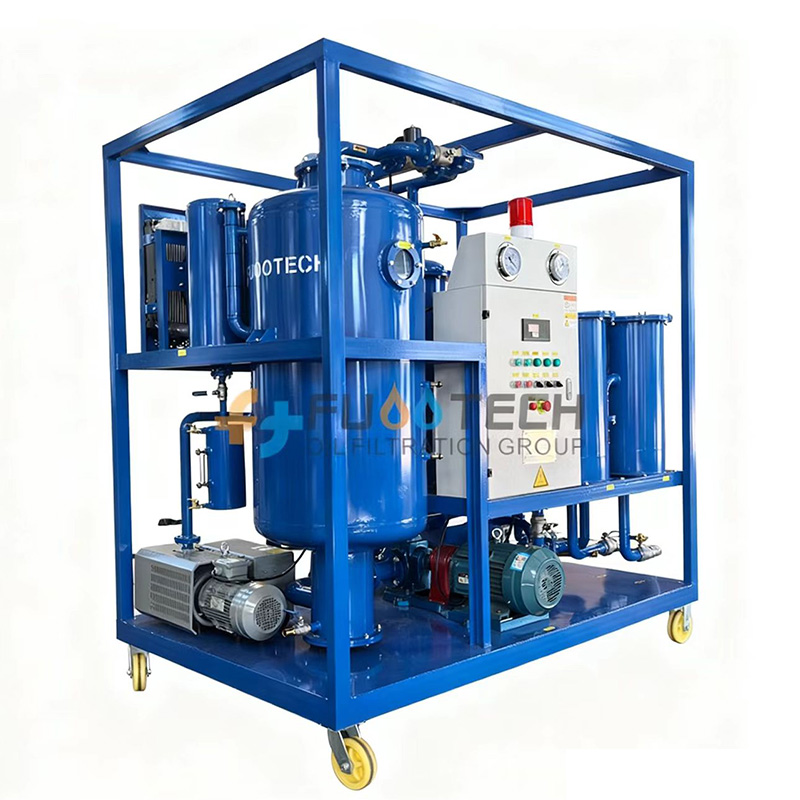

FUOOTECH COP Cooking Oil Filtration Machine for Biofuel & Biodiesel

Model No.: cop
Series COP Used Cooking Oil Recycling Machine is special for filtering waste cooking oil, dirty vegetable oil, palm oil, trench oil, swill oil, animal oil etc. It effectively removes particles, water, acid and other waste residues etc. from the waste oil. Series COP is a good recycling machine for fried food factory, food industry, restaurant, cooking oil factory, vegetable oil factory, and waste oil collecting store.
Detailed Description
Inquiry Now

Series COP Used Cooking Oil Recycling Machine is special for filtering waste cooking oil, dirty vegetable oil, palm oil, trench oil, swill oil, animal oil etc. It effectively removes particles, water, acid and other waste residues etc. from the waste oil.  Series COP is a good recycling machine for fried food factory, food industry, restaurant, cooking oil factory, vegetable oil factory, and waste oil collecting store.


According to the treated oil usages, we can choose different machine body for you. For edible usage, we suggest choosing stainless steel body; for industrial usage, we suggest choosing carbon steel body.

Two primary filters and fine filter combined for removing various sizes of impurities thoroughly. Next, the machine adopts highly vacuum system to dewater and degas. In addition, this machine use stainless steel filter element, it resists the acid in oil strongly. So, the used cooking oil was recycled by machine and become clean.

According cooking oil nature, the used cooking oil contains high water, lots of impurities and carbons. This type machine dewaters, particles removal and eliminates impurities highly effectively.

Oil Result Before and After Treatment:

Moisture (water content)

≤80 PPM

 (remove 100% of free water and 99%of dissolved/emulsified water)

Gas Content

≤0.01%

Suspended Particles (Filtration precision)

≤ micron

Demulsification

New oil≤15min, running oil≤30min

Cleanliness

≤NAS 1638-Grade 5

Cooking Oil Purifier Features:

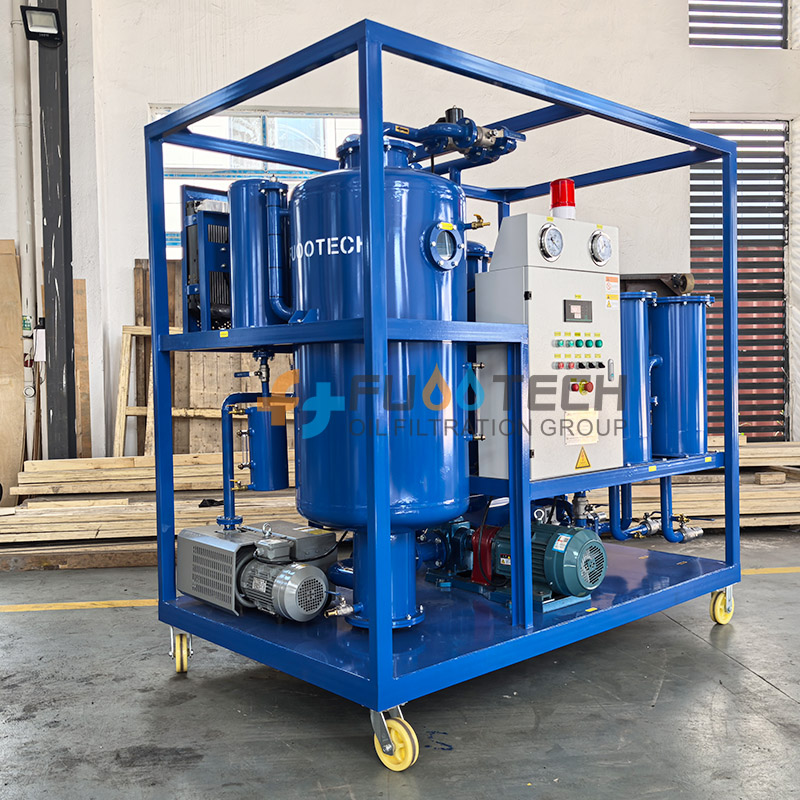

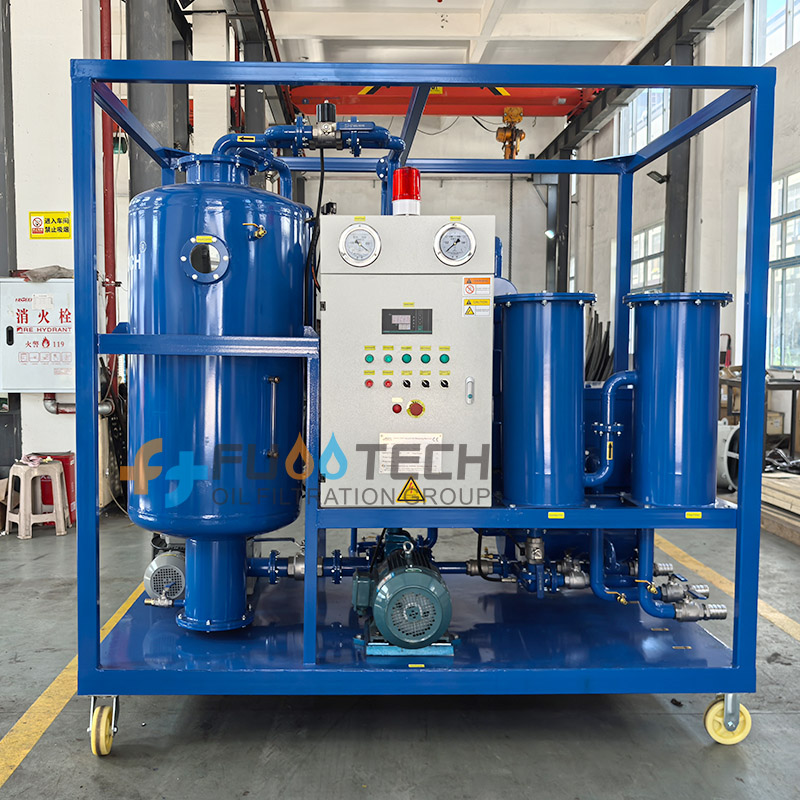

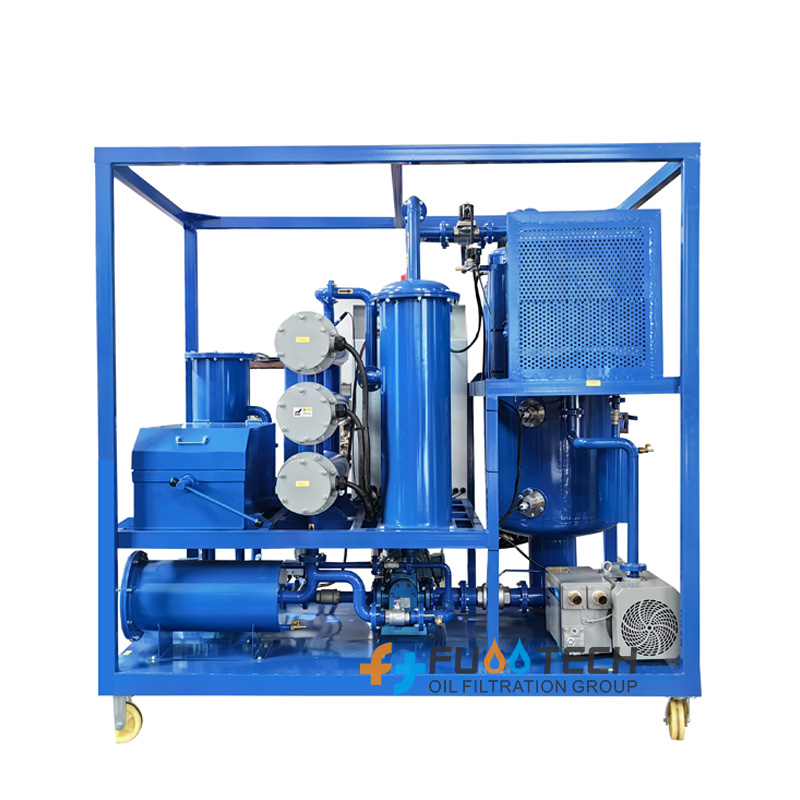

1.This plant is composed of two parts, one is the press filter, and the other is the vacuum oil purifier system. The press filter can remove the big or tiny impurities; The precision of purification can reach to 3 Micro. The vacuum system is equipped with filters of three grade (primary filter, mass water separator, and fine filer). All processes is under vacuum condition.


2.The primary filters, which are made of the stainless steel, is anti-rust and anti-corrupt. It mainly removes the residual impurities which escape from the press filter, making sure the treated oil won't have any impurity when it goes into the water separator and vacuum separator.

3.The water separator filter, which is equipped with a special filter, mainly removes the mass water from the oil. Usually the waste cooking oil contains much water and it need to be removed from the oil. After the water separator, the oil just contains the tiny water and soluble water.

4.After the process of the water separator filter, the oil will goes into the vacuum separator which adopts three-dimensional duplex evaporation and film evaporation. For protecting the oil nature, it is better that the oil temperature is lower than 80°c. Because our machine works under the vacuum and low pressure condition, so the oil doesn't need to be heated to 100 °c and usually it just need to be heated to 60 °c.  Then the tiny water, soluble water, acid, alcohol, other volatility liquid and so on can be removed completely and effectively.

5.For the fine filter, which is equips with the stainless steel filter, the purification hole is less than 1 Micro, which can make sure the filtered oil is completely clear without any impurity.

6.High quality filtering components, large capacity for holding particles, anti-corrosion, good mechanical performance, long lifetime. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.

7.Adopt interlocked protective system, connecting oil discharge pump, heater and liquid level sensor, avoids blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.

8.Adopts interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.

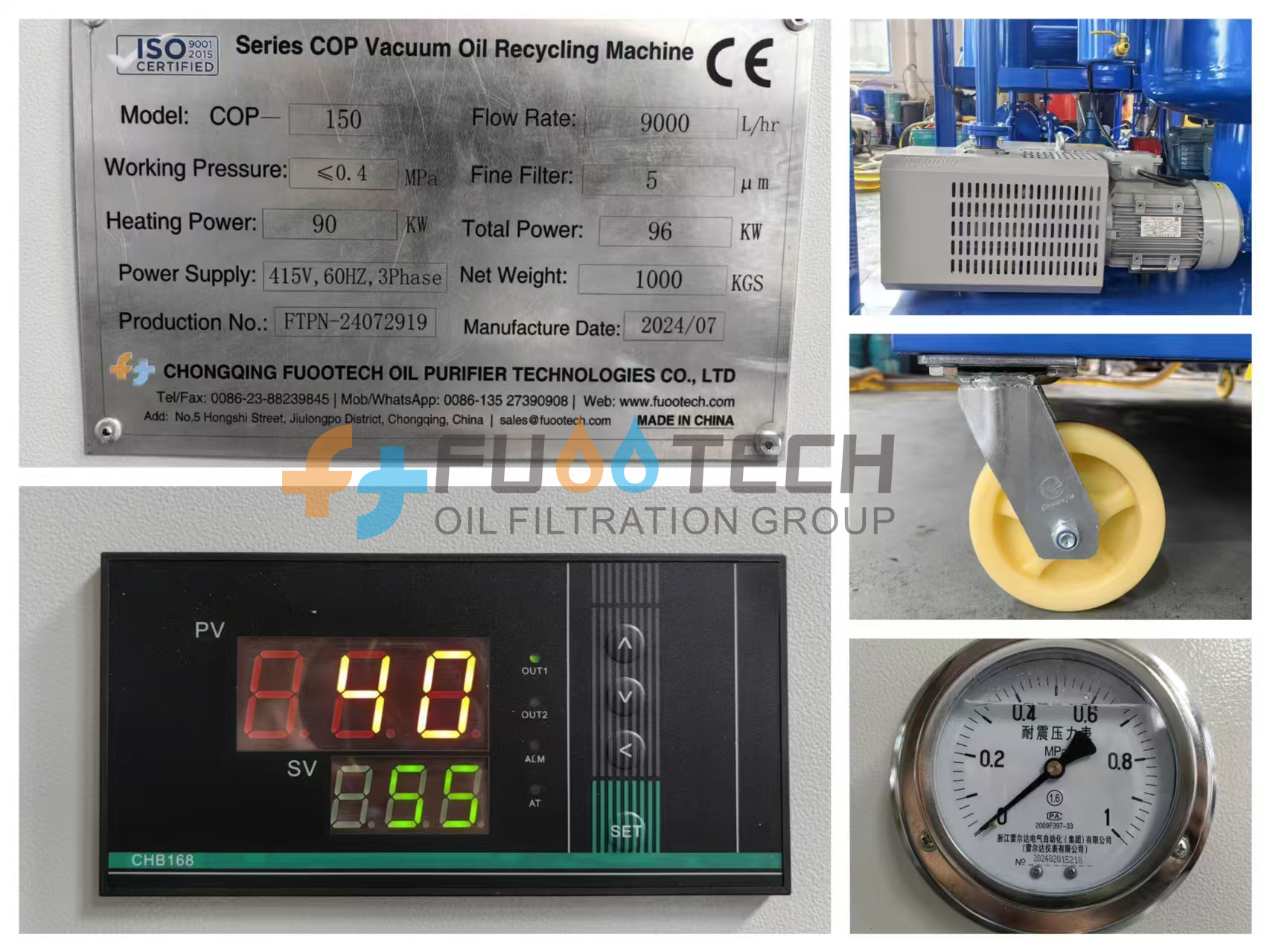

Technical Parameters:

Item

Unit

COP-10

COP-20

COP-30

COP-50

COP-100

COP-150

COP-200

COP-300

Flow rate

L/H

600

1200

1800

3000

6000

9000

12000

18000

Vacuum degree

Mpa

-0.06 ~ - 0.095

Working pressure

Mpa

≤0.4


0 ~ 100

Operation Temperature

50 ~ 70

Demulsification

Min

New oil≤15min, running oil≤30min

Power supply


380 VAC, 50 Hz, 3 Phase (or as per required)

Working noise

DB (A)

≤ 65 ~ 90

Electric heating power

KW

30

36

48

60

72

90

120

135

Total electric power

KW

32.5

39

51

69

80

96

134

147

Inlet (outlet) caliber

mm

Ф25

Ф25

Ф25

Ф32

Ф42

Ф50

Ф50

Ф60

Dimension

 (L × W × H)

mm

1630

x1050

1730

1700

x1090   x1790

1780

x1150

x1850

1800

1200

x1900

1930

x1450

1960

1940

x1600

x2060

1980

x1700

x2100

2100

x1760

x2200

Weight

Kg

580

660

700

750

850

1000

1200

1500
