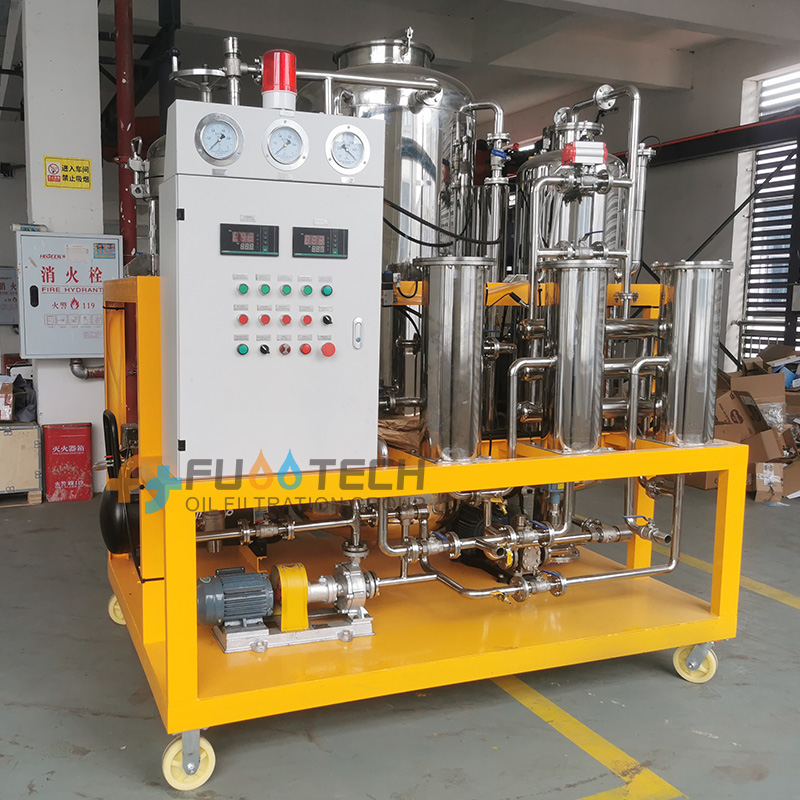

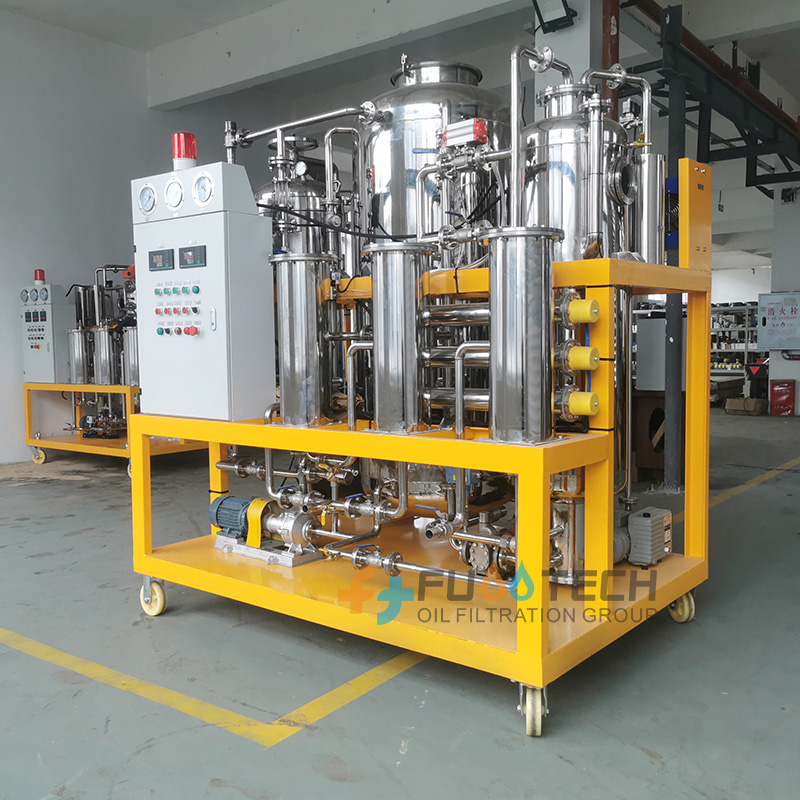

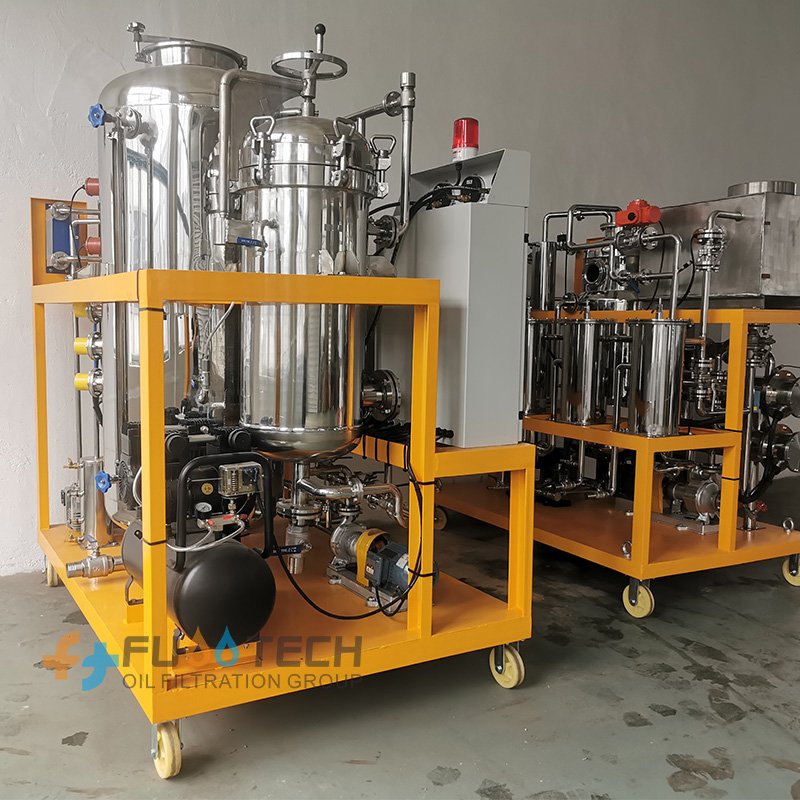

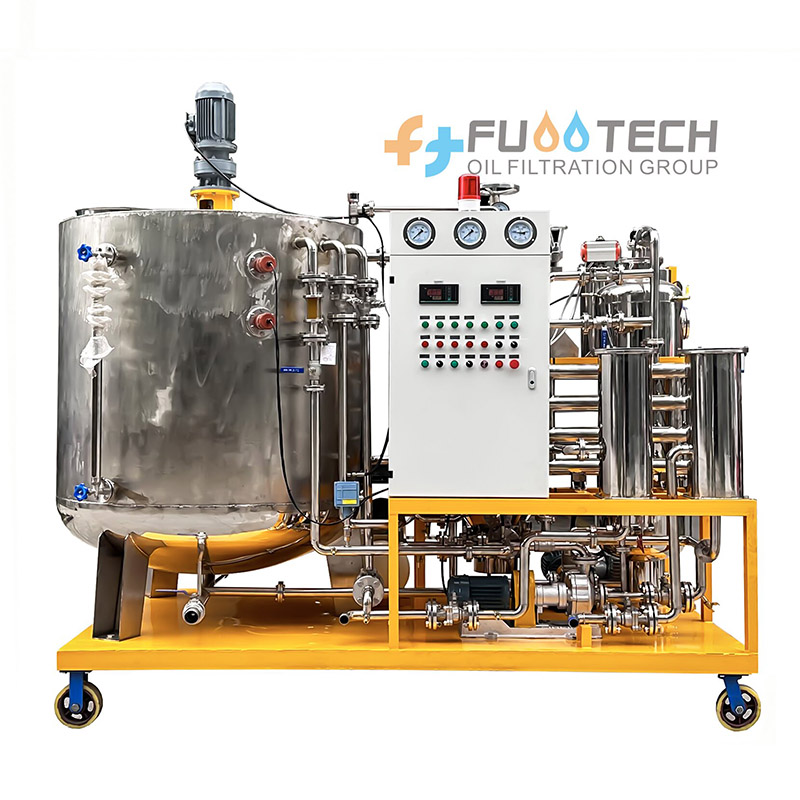

Food Grade Oil Filtration and Decoloration Machine

Food Grade Oil Filtration and Decoloration Machine

Model No.: TYS

FUOOTECH TYS series Food Grade Oil Filtration and Decoloration Machine is specially designed to clean the new and used cooking oil, coconut oil, palm oil, dirty vegetable oil, trench oil, swill oil and animal oil, edible rapeseed oil, tea oil, peanut oil, grease etc., It can effectively remove water, particles, alcohol etc.

Inquiry Now

Detailed Description

Inquiry Now

FUOOTECH TYS series Food Grade Oil Filtration and Decoloration Machine is specially designed to clean the new and used cooking oil, coconut oil, palm oil, dirty vegetable oil, trench oil, swill oil and animal oil, edible rapeseed oil, tea oil, peanut oil, grease etc., It can effectively remove water, particles, alcohol etc.

Further more, it can also recover the oil color from black to original yellow. This is combined with our special brand food grade decoloring sands, which is pure natural and has high efficiency. The treated oil is clean, limpidity, and good quality.

TYS is a good filtration machine for biodiesel production factory, soap factory, fry food factory, oil restaurant, cooking oil factory, vegetable oil factory, and waste oil collecting store etc.

This equipment is widely used to process palm oil made from palm fruit whose color and impurity and moisture cannot meet the use requirements. After processing by TYS oil purification and decoloring equipment, the moisture, gas, impurities and harmful pigments in the oil can be quickly and effectively removed so as to restore the performance indicators of oil quality. The treated oil has a transparent color, low emulsification value, very little water content, and high impurity accuracy.

Therefore, this system is widely used in processing and purification in catering industry, food industry, oil chemical industry and other industries.

Technical Specifications

Parameters		Unit	TYS-1	TYS-2	TYS-3	TYS-5	TYS-10	TYS-15	TYS-20	TYS-30	TYS-50
Treatment Capacity		Ton/day (8 hr)	1	2	3	5	10	15	20	30	50
Power Supply			380V, 50HZ, 3Phase (or as per actual request)
Working Noise		dB(A)	≤65
Working Vacuum		MPa	-0.06～-0.095
Working Pressure		MPa	≤0.5
Working Temperature		℃	30～90
Inlet (outlet) caliber		mm	Ф25	Ф25	Ф25	Ф32	Ф42	Ф42	Ф50	Ф50	Ф60
Weight		kg	1500	2000	2500	3000	3500	4000	4500	5000	5500
Size	Length	mm	1800	1850	1900	1950	2000	2200	2300	2400	2500
	Width	mm	1300	1350	1400	1450	1500	1600	1600	1700	1800
	Height	mm	2300	2300	2300	2400	2500	2700	2700	2700	2700
After treated	Color	L	≤ 1-3
	Impurity	μm	≤1 (Customizable)
	Water	ppm	≤100
	Demulsification	min	≤15(GB/F 7305)
	Cleanliness	grade	≤6(NAS1638)

Note: The dimension and weight will be changed with changing of technical specs.

FUOOTECH reserves the rights to any upgrading without notification.

		Main Functions & Features


1.Integrate precision filtration of oil, efficient dehydration, degassing, performance improvement, oil color change, vacuum three-dimensional short-range thin film evaporation technology and electrical control system.

		2.Simple to operate, safe and reliable in operation. It can effectively ensure the normal operation of oil-using  equipment and  avoid accidents.

		3.Advanced decolorization processes technology specially for palm oil.

		4.Sophisticated particles removal and filtration system.


		5.Safe and reliable external oil heating system, optimized pipeline design


The industry-leading intelligent liquid level automatic control system

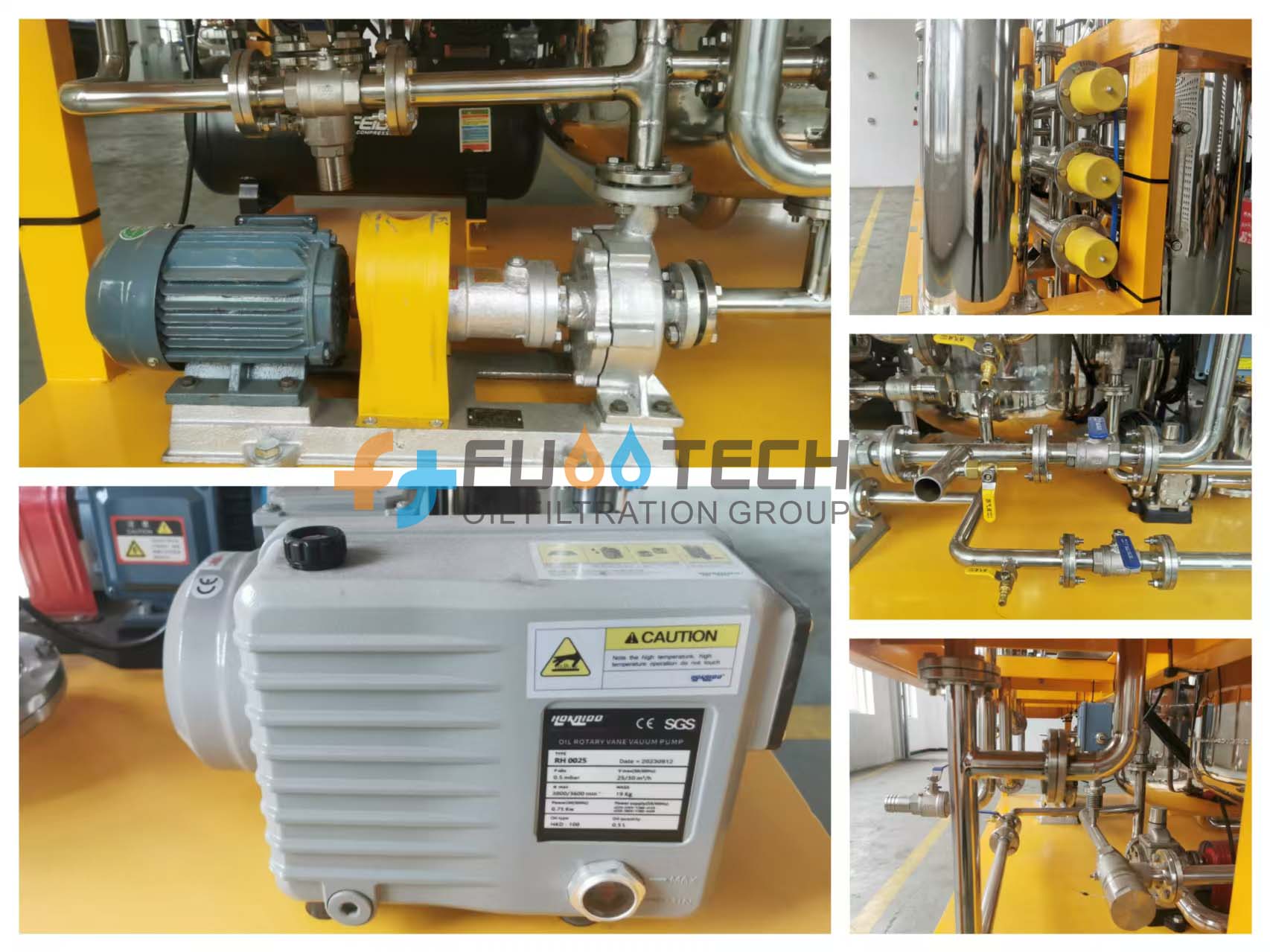

Adopts special precision oil pump
Advanced electrical interlocking safety protection control system.
Equipped with an automatic audible and visual pressure difference alarm device.
Reasonable in structure, easy to install, use and maintain
