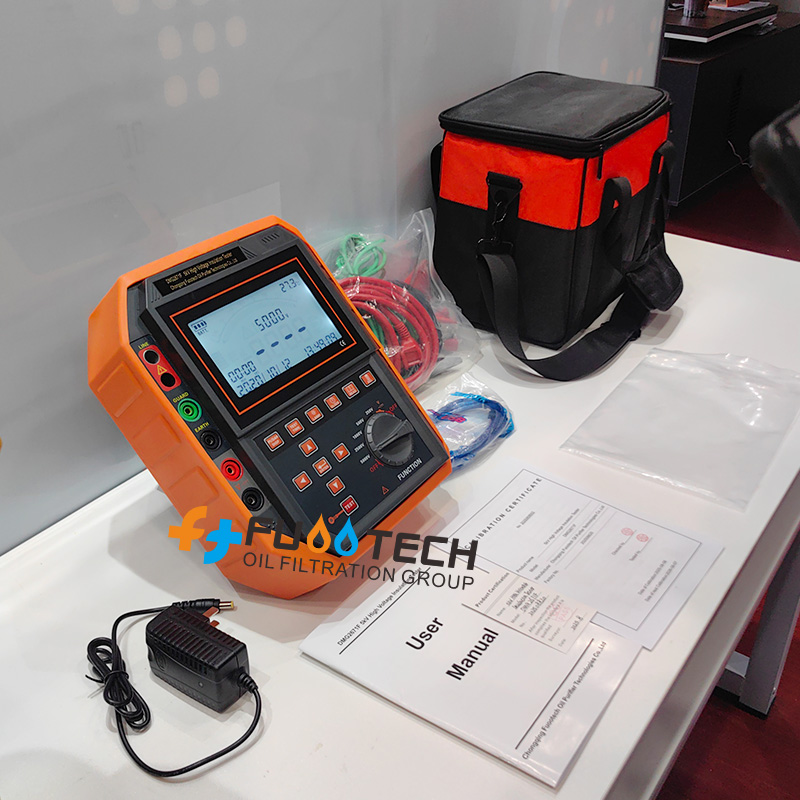

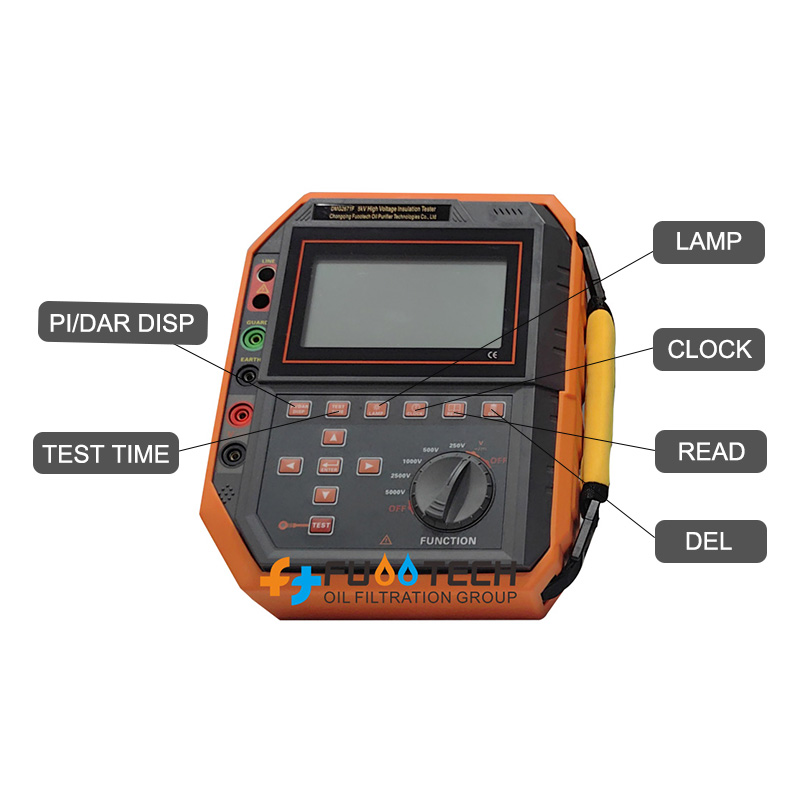

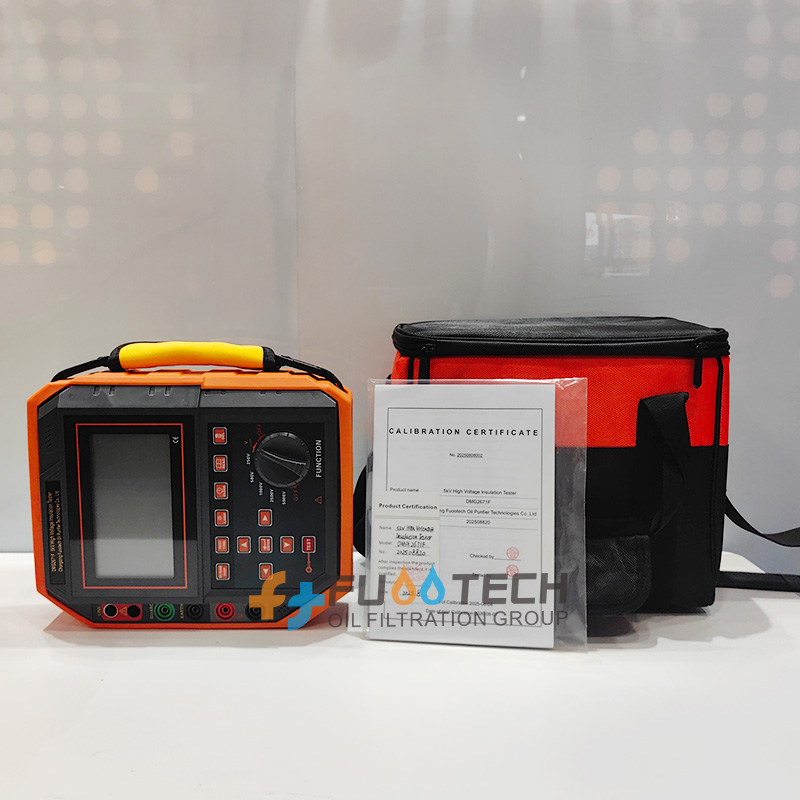

DMG2671F High Voltage Insulation Tester or named Megohmmeter,Digital Megohmmeter Insulation Resistance Tester,High Voltage Insulation Resistance Tester etc. Specialize in laboratory or various of construction area. The instrument has the functions of LCD large screen gray-white backlight display, data storage, data reference and so on.
Moreover, it has the structure of shockproof, dust-proof and moisture-proof. It is a common and indispensable instrument for telecommunication, electric power, meteorology, machine room, oil field, mechanical and electrical installation and maintenance,as well as the industrial enterprise departments using electric power as industrial power or energy.
It is suitable for measuring the resistance of various insulating materials and the insulation resistance of transformers, motors, cables and electrical equipment.
|
Function |
Insulation resistance, polarization index, absorption ratio, AC and DC voltage test; automatic discharge function; environmental temperature test; clock function |
|
Power |
DC 14.8V 2200mAh rechargeable Li-Battery，full battery volt approx. 16.8V |
|
Voltage |
Range：250V、500V、1000V、2500V、5000V |
|
Currrent |
≥5mA(≥10mA、≥3.5mA、≥1.5mA option) |
|
Battery Voltage |
Display the remaining power of the battery. When the battery is low, please charge it in time |
|
Working Current |
Stand by：25mA Max(backlight off)；backlight：25mA Max(only backlight on)； working：450mA Max(backlight off) |
|
Backlight |
Controllable white screen backlight, suitable for dark field |
|
LCD |
4bite LCD display，white screen back light |
