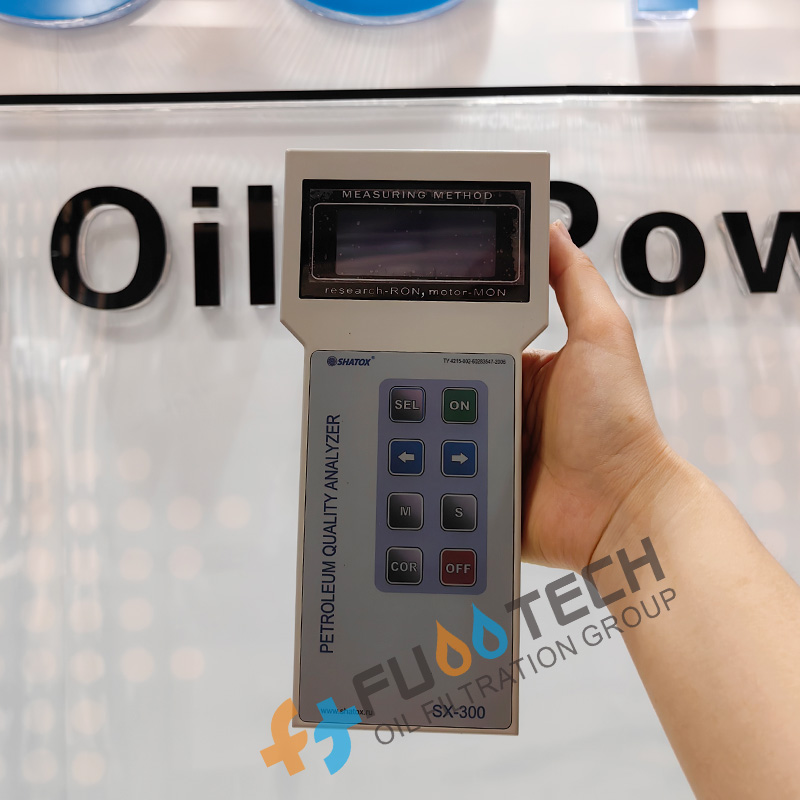

Handheld Diesel Octane Number Cetane Number Tester ASTM D2699

Handheld Diesel Octane Number Cetane Number Tester ASTM D2699

Model No.: SX-300

SX-300 Handheld Diesel Octane Number Cetane Number Tester are often used for on-site analysis of octane number of power gasoline, motor gasoline, corresponding to the motor method and research method (RON and MON), as wll as suitable for cetane number analysis of diesel fuels. In addition, the temperature of the analyzed liquid and the freezing point of diesel fuel can also be measured. The measuring results are displayed on the LCD liquid crystal display.

Inquiry Now

Detailed Description

Inquiry Now

SX-300 Handheld Diesel Octane Number Cetane Number Tester is widely used all over the world. Its measurement method conforms to international standards:
Octane measurement complies with: ASTM D 2699-86, ASTM D 2700-86.
Diesel cetane measurement complies with: ASTM D 4737- 03, ASTM D 613, EN ISO 5165.

Function / Feature	SX-150	SX-300
Octane/Cetane Number Measurement	x	x
Diesel mixed type measurement (Winter/Summer/Arctic)	x	x
Condensing point temperature (diesel)	x	x
With built-in memory	x	x
PC / RS-232 interface
PC / USB interface	x	x
Oil purity measurement		x
Transformer oil fission voltage measurement		x
Transformer oil dielectric dissipation measurement		x
Fuel oil conductivity measurement		x
Anti-knock parameter measurement		x
Diesel pour point depressant content	x	x
Kerosene content in diesel	x	x
Gasoline oxidation stability	x	x
Measurement of failure tangent angle of circuit breaker oil, engine oil		x
Clear level measurement of engine oil and circuit breaker oil		x
Engine oil brand		x
Engine oil base		x
Electric permeability of oil		x
Oil volume resistivity		x
Measurement of mechanical impurities in oil		x
Percentage of water in oil		x

Measurement Principle
The principle of SX-300 portable octane cetane number tester lies in the analysis of the insulation permeability of the octane number of gasoline and the cetane number of diesel oil and the charge characteristics of electromagnetic induction.

	 By measuring the dielectric properties of the sample and comparing with the known parameters in the memory, the result is determined. The instrument is very sensitive and can measure small changes in dielectric parameters. It can detect octane number, cetane number and other petroleum product parameters.
