FUOOTECH Series ZYD-T-O Transformer Oil Filtration Systems is also suitable for the treatment of new oil and reconditioning of used transformer oil in EHV class transformers, shunt reactor and other oil filled equipment in power plant, power station, electric power company, power transmission equipment, transformers, industrial and mining enterprises, especially suitable for on-site installation, maintenance and purifying high level new oil, or running oil from big power transmission and distribution equipment and transformers on national main power transformation grid, which is above 110-750KV.
It can shorten the oil treatment period for transformer installation and maintenance, and achieve properties of treated oil within specified limits at the rated capacity.

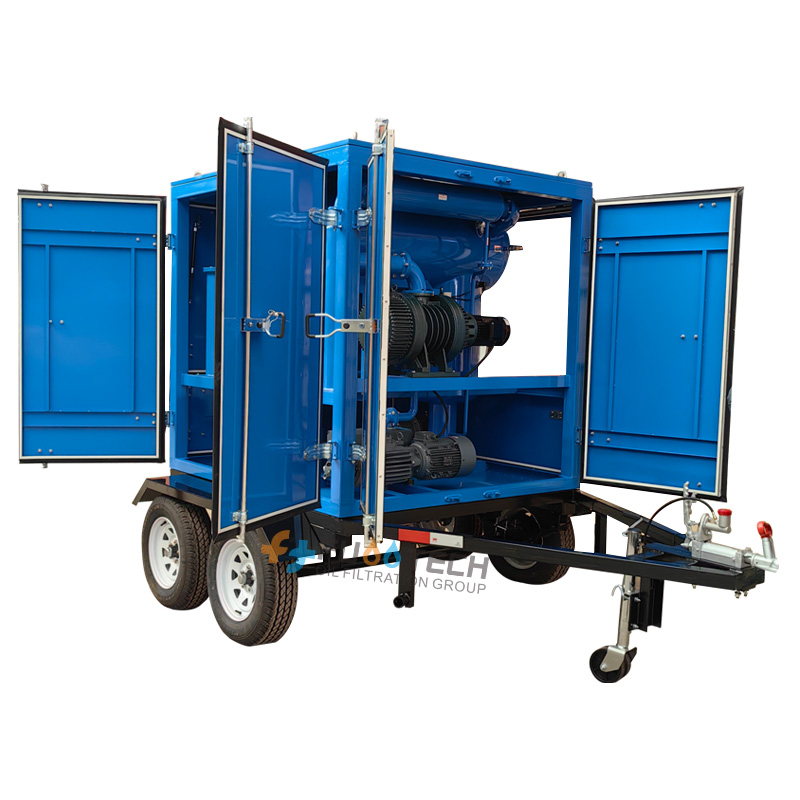

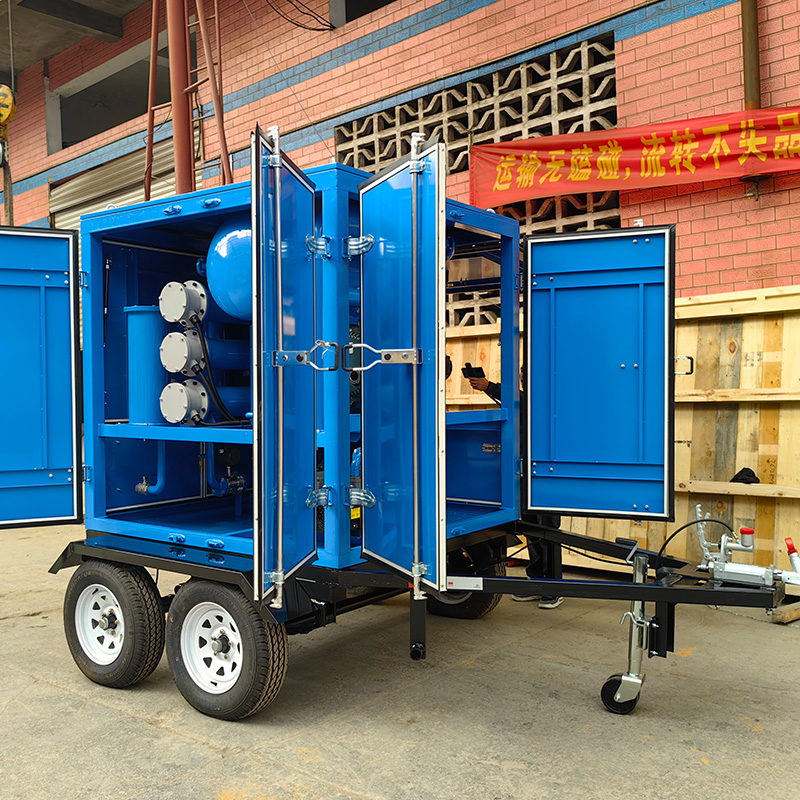

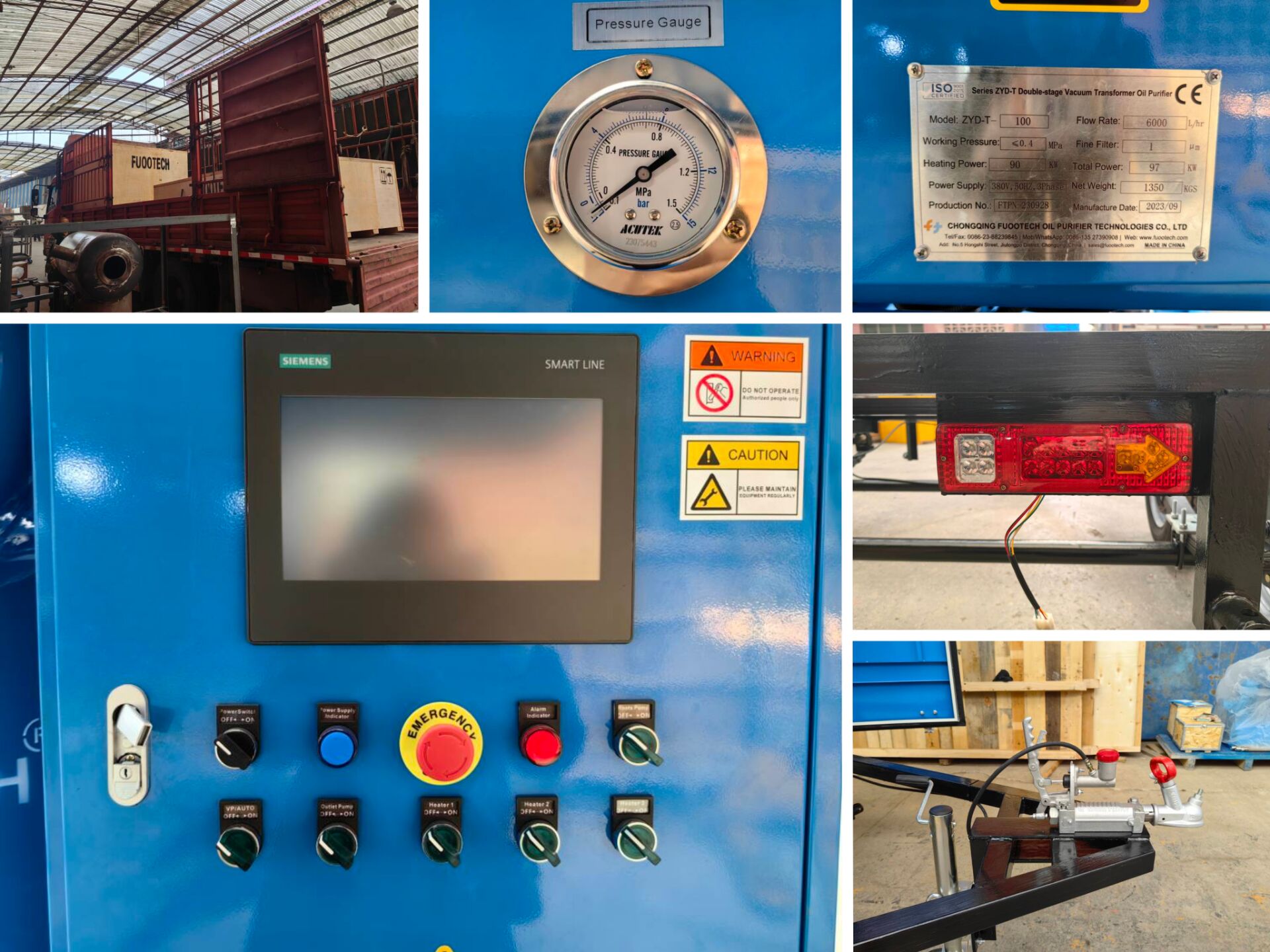

The ZYD-T-O Transformer Oil Filtration Systems is equipped with mobile trailer mounted and fully enclosed doors & cover installed for outdoor usage, weather proof, sand proof, wind proof, etc.
Basic Information of ZYD-T-O Transformer Oil Filtration Systems
- Flow Rate: 6000LPH
- Double Stage Vacuum Dehydration
- Double Stage Vacuum Degassing
- Three Stage Filter to 1micron
- Fully Automatic PLC System & Touch Screen
- Working Vacuum: -0.085 ~ -0.099MPa
- Ultimate vacuum: less than 10Pa
- Working Pressure: less than 0.4MPa
- Dimension (L*W*H): 1850 * 1780* 1780mm
- Net Weight: 1350KGS
- Heater Power: 90KW
- Total Power: 101KW
- Power Supply: 220V/240V/380V/400V/415V/440V/480/, 50/60Hz, 3Phase (or as per request)
Technical Parameters
|
Parameters |
Model Unit |
ZYD-T-O-30 | ZYD-T-O-50 | ZYD-T-O-100 | ZYD-T-O-150 | ZYD-T-O-200 | ZYD-T-O-250 |
ZYD-T-O-300 |
|
|
Flow Rate |
L/H |
1800 | 3000 | 6000 | 9000 | 12000 | 15000 |
18000 |
|
|
Recommended Max. oil volume in one storage tank |
Tons |
7 | 12 | 22 | 30 | 42 | 50 |
66 |
|
|
Working Vacuum Degree |
MPa |
-0.08 ～ -0.099 |
|||||||
|
Working Discharge Pressure |
MPa |
≤ 0.4 |
|||||||
|
Temperature Control Range |
℃ |
20 ～ 100 |
|||||||
|
Operation Temperature |
℃ |
40 ~ 65 (60 ~ 65℃ is best) |
|||||||
|
Power Supply |
|
380V, 50Hz, 3 phases, 4 wires (or as per your requirements) |
|||||||
|
Working hours without Trouble |
Hour |
4000 |
|||||||
|
Continuous Working Hours |
Hour |
150 |
|||||||
|
Ambient Temperature |
|
-25 ～ 55℃ |
|||||||
|
Working Noise |
dB(A） |
65 ~ 85 |
|||||||
|
Heating Power (adjusted available) |
KW |
30 | 60 | 90 | 120 | 135 | 150 |
180 |
|
|
Total Power |
KW |
33 | 66 | 101 | 135 | 152 | 168 |
208 |
|
|
Inlet/Outlet |
mm |
φ25 | φ32 | φ42 | φ50 | φ50 | φ60 |
φ60 |
|
|
Weight |
Kg |
850 | 1160 | 1350 | 1500 | 1680 | 1800 |
2000 |
|
|
Dimension |
Length |
mm |
1600 |
1780 |
1850 |
2050 |
2100 |
2300 |
2500 |
| Width | mm | 1150 | 1260 | 1350 | 1430 | 1550 | 1660 |
1750 |
|
| Height | mm | 1780 | 1830 | 1900 | 1960 | 2060 | 2100 |
2250 |
|
Note: The dimension and weight will be changed with changing of technical specs.
FUOOTECH reserves the rights to any upgrading without notification.
Oil Performance Before and After Purification
|
Moisture (Water Content) |
≤ 5 PPM |
|
Gas Content |
≤0.03% (Vol) |
|
Impurities Degree (Filtration precision) |
≤ 1 micron (no free carbon) |
|
Breakdown Voltage (Dielectric Strength) |
≥70 ~ 80 KV |
|
Flash Point |
≥135℃ |
|
Cleanliness |
≤NAS 1638 Grade 6 |
Special Features & Advantages
Double-stage high vacuum improve the effect and efficiency of oil dehydration and degasification.
Multi-stage filtration ensures the high oil filtering accuracy.
Multifunctional integrated equipment, can be used oil treatment, vacuum oil filling and vacuum drying. (*More functions can be customized according to your requirements.)
The uniquely designed “T” vacuum chamber enlarges the oil evaporation area more than the traditional design, so as to achieve a better dehydration and degassing effect.
Model ZYD-T-100 Transformer Oil Purifier can work offline or online under the safe operation after a special design.
A standalone oil regeneration device can be mounted or connected on its basis for transformer oil regeneration.
Online oil measuring kits (mainly including to monitor oil's ppm, particle counter, flow rate, temperature, etc. ), trailer type with road-worthy wheels, weather-proof enclosure and other spare parts are available for selection.
