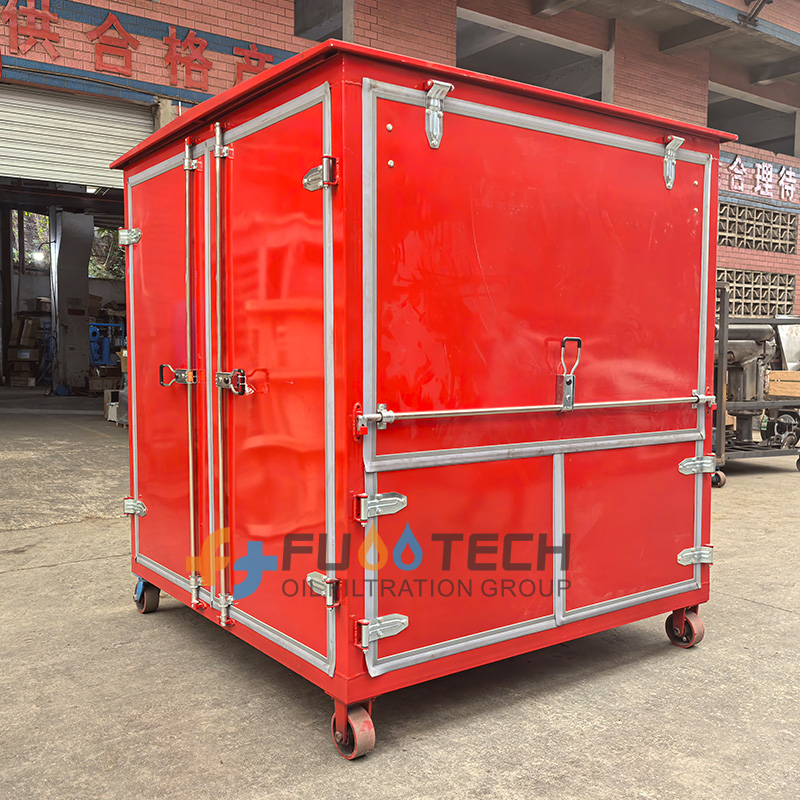

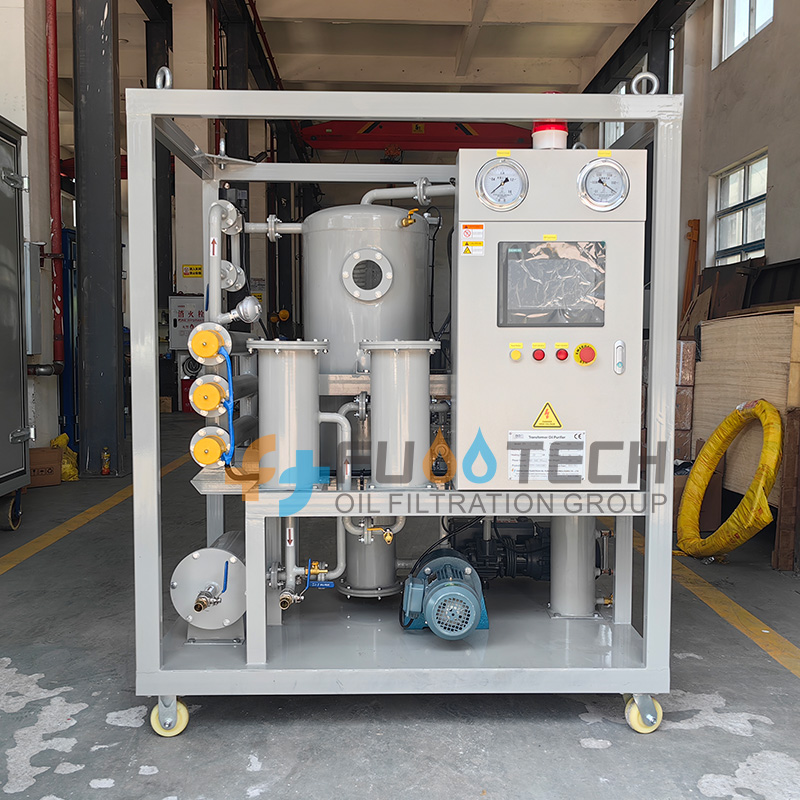

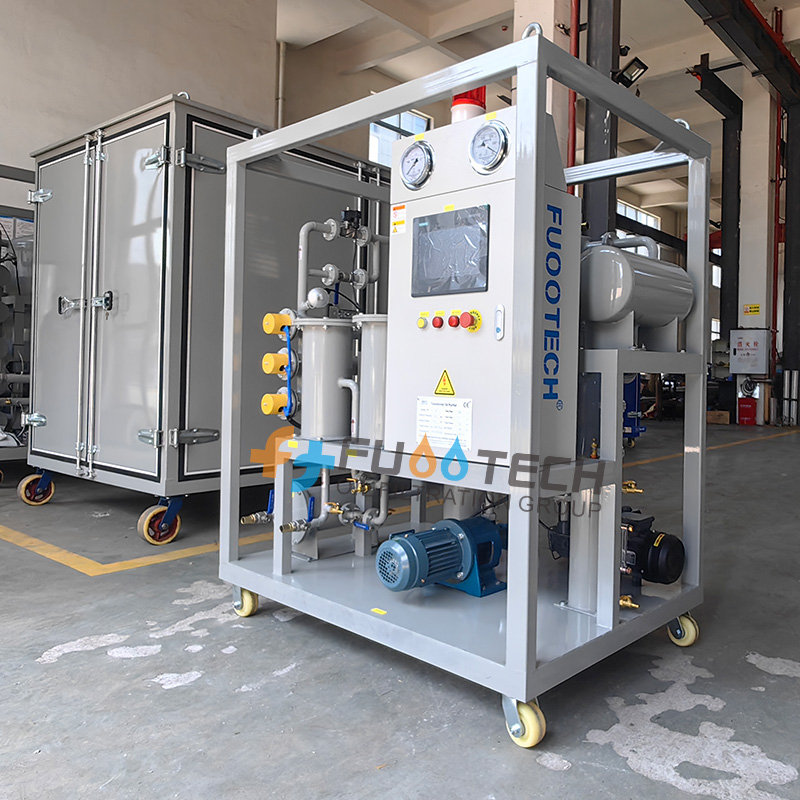

FUOOTECH ZYD-T-W Fully Enclosed Vacuum Transformer Oil Filtration Machine Oil Purifier

FUOOTECH ZYD-T-W Fully Enclosed Vacuum Transformer Oil Filtration Machine Oil Purifier

Model No.: ZYD-T-W

Inquiry Now

Detailed Description

Inquiry Now

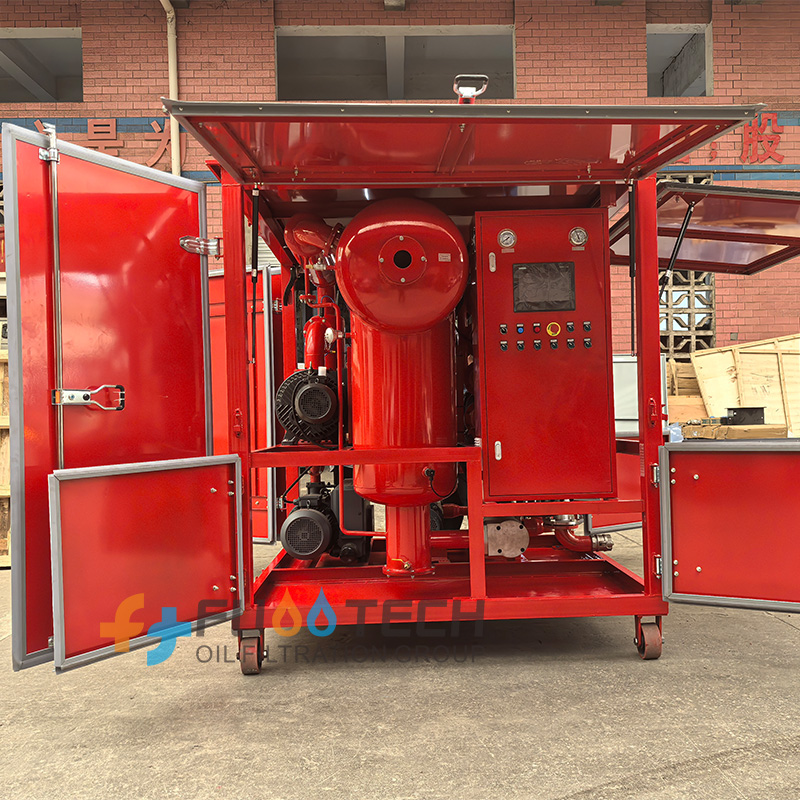

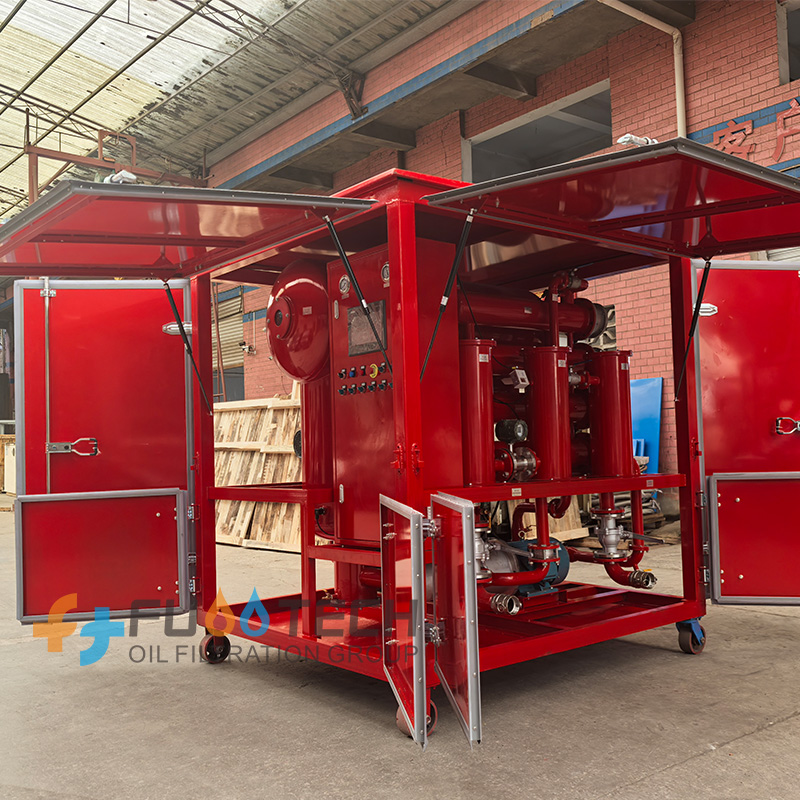

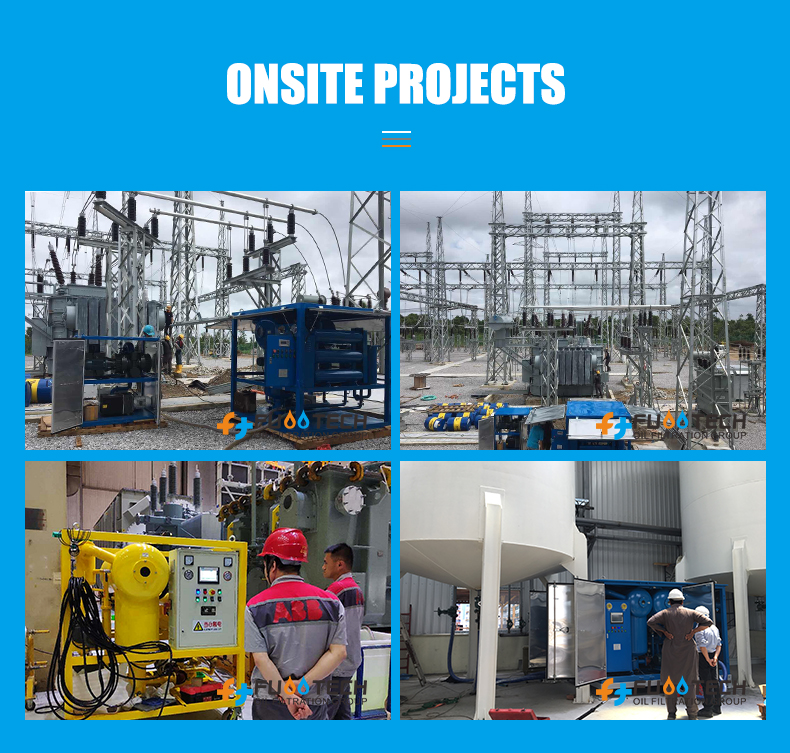

Fully enclosed double-stage vacuum oil purifier is an excellent machine, with excellent features, very suitable for outdoor work.The device is designed to prevent wind, dust and rain from interfering with its operation and is ideal for use in adverse weather conditions.

ZYD-T-W insulating oil treatment plant also has the functions of dehydration of transformer oil, filtering of transformer oil particles and pumping vacuum of transformer. The device will give an alarm signal when it is abnormal or needs maintenance.

Expectations and Benefits on ZYD-T-W Fully Enclosed Vacuum Transformer Oil Filtration Machine

■ Elimination of residual gas from the insulation.

■ Drying of transformer insulation.

■ Easy and failsafe operation.

■ On-line measuring and recording of process parameters.

■ Flexibility in application (various oil types and oil volumes)

■ Purify your transformer oil high efficiently

■ Maintain your transformer oil always in good status, extend the oil’s lifespan

■ Reduce and save oil costs in terms of consumption, replacement and inventory

■ Solve your waste transformer oil disposal problem

■ Ensure your transformers working normally with qualified oil properly

■ Protect your transformers and power equipment from oil pollution problems

■ Reduce your maintenance time, energy and cost on transformers and power plant

■ Create safety and cleaning oil-using environment for your transformers of power station

Technical Parameters

Parameters		Model Unit	ZYD-T-W-30	ZYD-T-W-50	ZYD-T-W-100	ZYD-T-W-150	ZYD-T-W-200	ZYD-T-W-250	ZYD-T-W-300
Flow Rate		L/H	1800	3000	6000	9000	12000	15000	18000
Recommended Max. oil volume in one storage tank		Tons	7	12	22	30	42	50	66
Working Vacuum Degree		MPa	-0.08 ～ -0.099
Working Discharge Pressure		MPa	≤ 0.4
Temperature Control Range		℃	20 ～ 100
Operation Temperature		℃	40 ~ 65 (60 ~ 65℃ is best)
Power Supply			380V, 50Hz, 3 phases, 4 wires (or as per your requirements)
Working hours without Trouble		Hour	4000
Continuous Working Hours		Hour	150
Ambient Temperature			-25 ～ 55℃
Working Noise		dB(A）	65 ~ 85
Heating Power (adjusted available)		KW	30	60	90	120	135	150	180
Total Power		KW	33	66	101	135	152	168	208
Inlet/Outlet		mm	φ25	φ32	φ42	φ50	φ50	φ60	φ60
Weight		Kg	850	1160	1350	1500	1680	1800	2000
Dimension	Length	mm	1600	1780	1850	2050	2100	2300	2500
	Width	mm	1150	1260	1350	1430	1550	1660	1750
	Height	mm	1780	1830	1900	1960	2060	2100	2250

Note: The dimension and weight will be changed with changing of technical specs.
FUOOTECH reserves the rights to any upgrading without notification.

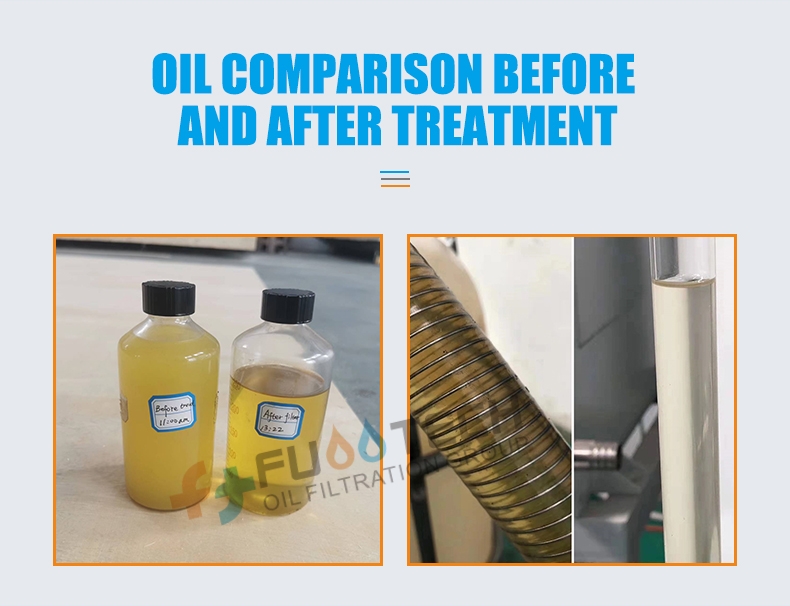

Oil Performance Before and After Purification

Moisture (Water Content)	≤ 5 PPM
Gas Content	≤0.03% (Vol)
Impurities Degree (Filtration precision)	≤ 1 micron (no free carbon)
Breakdown Voltage (Dielectric Strength)	≥70 ~ 80 KV
Flash Point	≥135℃
Cleanliness	≤NAS 1638 Grade 6

Special Features & Advantages

1.ZYD-T-W adopt double vacuum separation technology, double stages thin film drying degassing technology, double evaporation area and degassing time.

2.Patented degassing tank: anti-foam structure & dual electronic foam monitoring system ( key components are from
Switzerland),completely eradicating oil entering into vacuum pump.

3.Reliable Control System: Optimized design of control interlock protection device, over-pressure alarm and protection, phase sequence protection, to ensure whole machine working stably for a long time. Automatic pressure alarm system, automatic overload protection system, automatic constant temperature system, automatic foam elimination system, automatic protection of oil blowout prevention and other advanced technologies, ensures the safe and stable operation of unattended operation.

4.Oil atomized particles size is less than 50μm, largely increasing efficiency for water molecules and gas molecules escaping from oil molecules.

5.High density electrical heaters with surface efficiency below 1.5 W/cm2, with indirect heating to prevent local overheating and oil cracking & aging.

6.Install liquid level and temperature protector on the heater system to prevent instantaneous high temperature of heater and blank heating without oil.

7.Vacuum pump cooler preposition, to reduce water or vapor entering into vacuum pump, reduce the frequency to change vacuum pump oil and extend vacuum pump lifetime.
