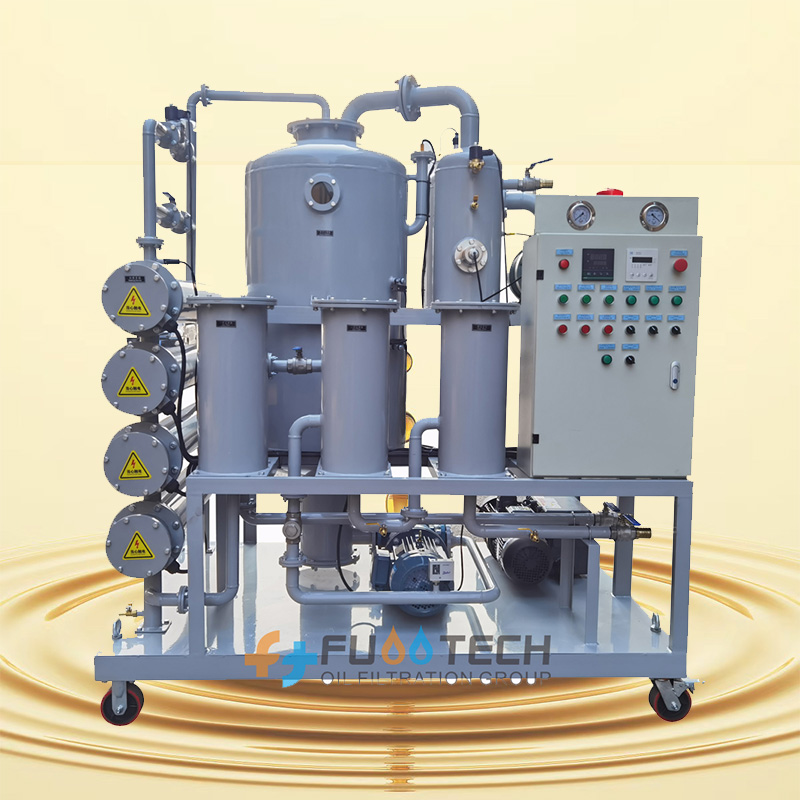

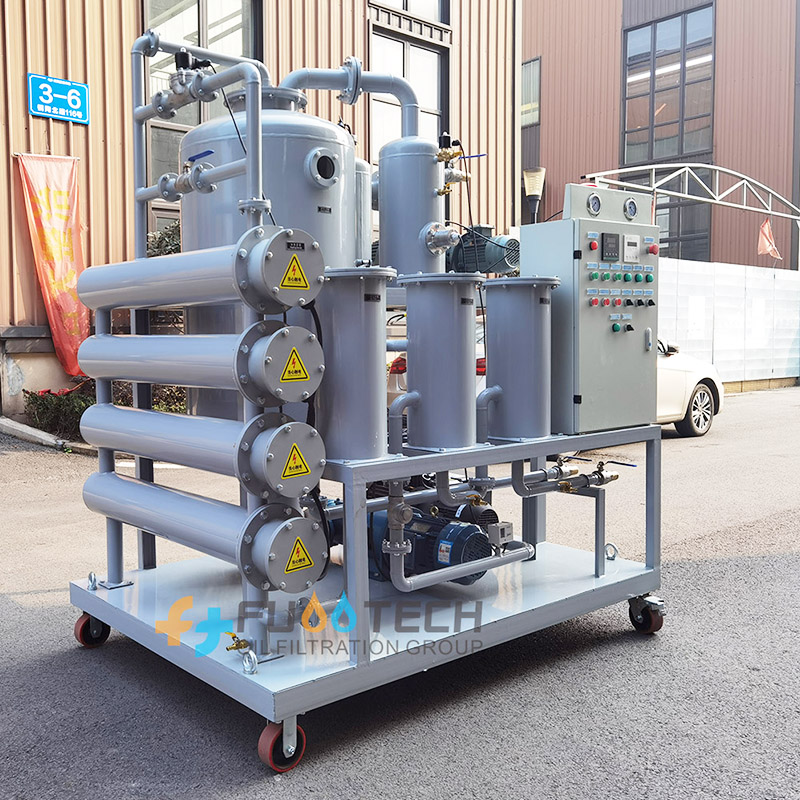

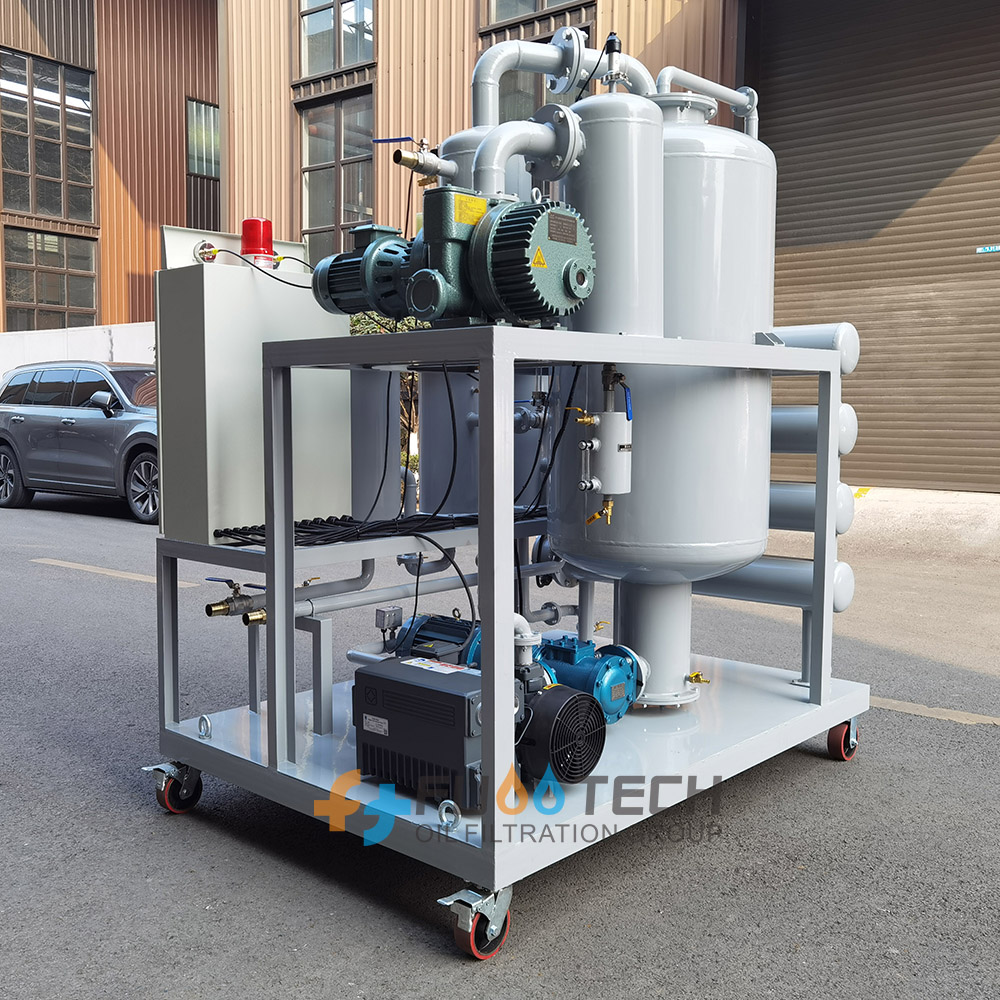

6000L/H Vacuum Oil Purifier

Model No.: ZYD-100 6000L/H

The 6000L/H Vacuum Oil Purifier is a special oil filter for double-stage vacuum high-efficiency transformer oil. It can quickly remove moisture, Gases and impurities can be removed to improve the quality of transformer oil.

Inquiry Now

Detailed Description

Inquiry Now

	The 6000L/H Vacuum Oil Purifier is a special oil filter for double-stage vacuum high-efficiency transformer oil. It can quickly remove moisture, Gases and impurities can be removed to improve the quality of transformer oil.

ZYD Series 6000L/H Vacuum Oil Purifier is mainly used for for maintenance of power transformer by purifying the oil used in transformer, circuit breakers, mutual inductors, cable and capacitors. It can effectively improve the properties of transformer oil from 11KV to 800KV.

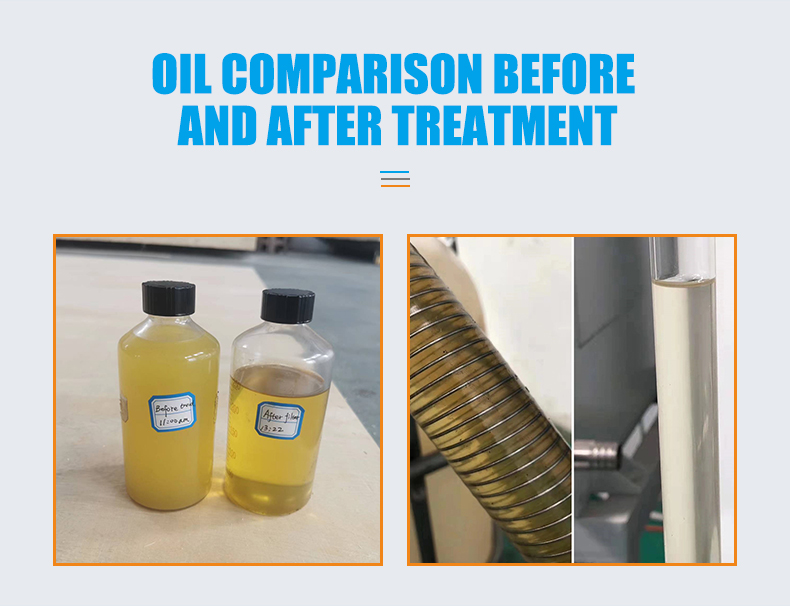

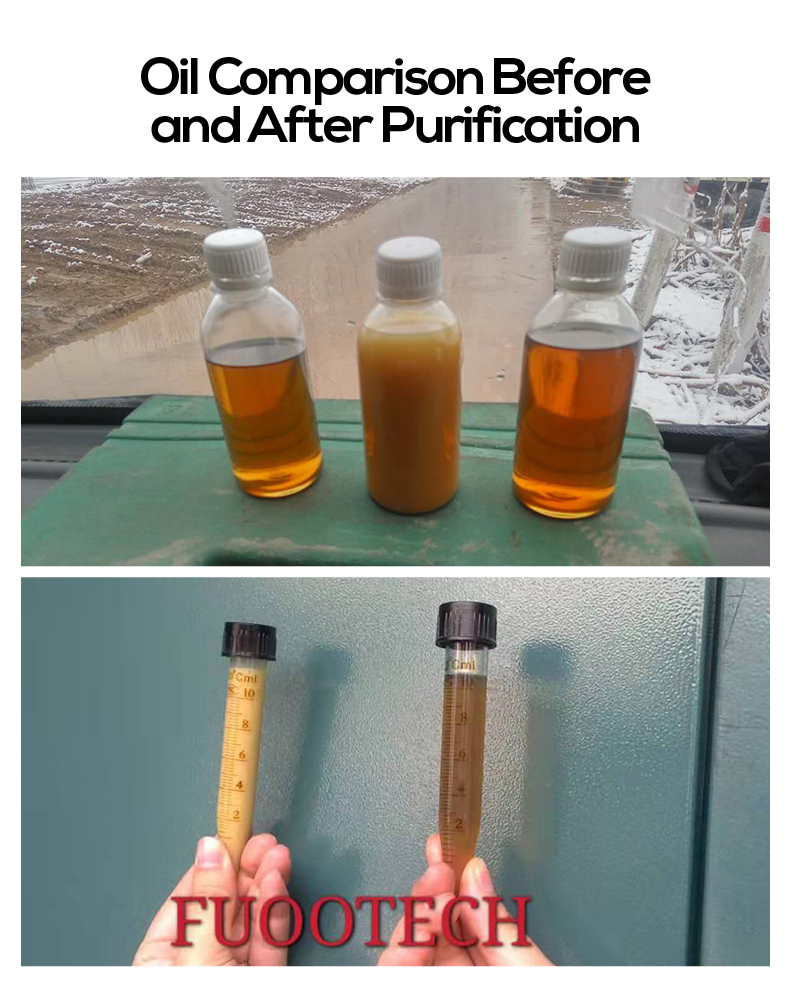

Oil Results after Filtered by ZYD Series

Moisture (Water Content)	≤ 3 ~ 5 PPM
Gas Content	≤0.1% (Vol)
Impurities Degree (Filtration precision)	≤ 1 micron (no free carbon)
Breakdown Voltage (Dielectric)	≥68 ~ 80 KV
Flash Point	≥135℃
Cleanliness	≤NAS 1638 Grade 6

Features

1.Double-stage high vacuum pumping system, strong power of vacuum evacuating, ultimate vacuum value≤ 5Pa.

2. Big capacity of moisture ands gas separating chamber, efficient oil film evaporation, increasing separating size and separating time to ensure the dry-level and dielectric strength of oil improving greatly.

3. Duplex-Stereo film evaporation technology, combined with unique and advanced dewatering, degassing components, rapidly and effectively separate water, gas from oil.

4. Multi-stage precision filtration system, mesh filtration combined with molecular adsorption technologies, maximum remove the particles and impurities.

5. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.

6. Double-safety liquid level controller, pressure protective system and foaming elimination system to ensure machine operating easily and safely.

7. Adopt interlocked protective system, connecting oil discharge pump, heater and liquid level sensor, avoids blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.

8. Can be used independent device for vacuuming transformers and vacuum oil filling for power equipment.

9. Can work online for over 150 hours continuously, high reliable and long time running.

Technical Parameters

Parameters		Model Unit	ZYD-30	ZYD-50	ZYD-100	ZYD-150	ZYD-200	ZYD-250	ZYD-300
Flow Rate		L/H	1800	3000	6000	9000	12000	15000	18000
Working Vacuum Degree		MPa	-0.08 ～ -0.099
Working Discharge Pressure		MPa	≤ 0.3
Temperature Control Range		℃	20 ～ 80
Operation Temperature		℃	40 ~ 70 (65℃ is best)
Power Supply			380V, 50Hz, 3 phases (or as per your requirements)
Working hours without Trouble		Hour	4000
Continuous Working Hours		Hour	150
Ambient Temperature			-25 ～ 55℃
Working Noise		dB（A）	65 ~ 90
Heating Power (adjusted available)		KW	30	36	48	60	72	80	120
Total Power		KW	35.5	42	52.5	68	82	93	135
Inlet/Outlet		mm	φ25	φ32	φ42	φ50	φ50	φ60	φ60
Weight		Kg	600	700	1050	1150	1450	1600	1950
Dimension	Length	mm	1380	1610	1750	1850	1950	2050	2200
	Width	mm	1020	1250	1350	1400	1500	1600	1750
	Height	mm	1760	1950	2150	2200	2300	2400	2550

Note: 1. The dimension and weight will be changed with changing of technical specs.

2. All the specs can be customized according to client's requirements.
