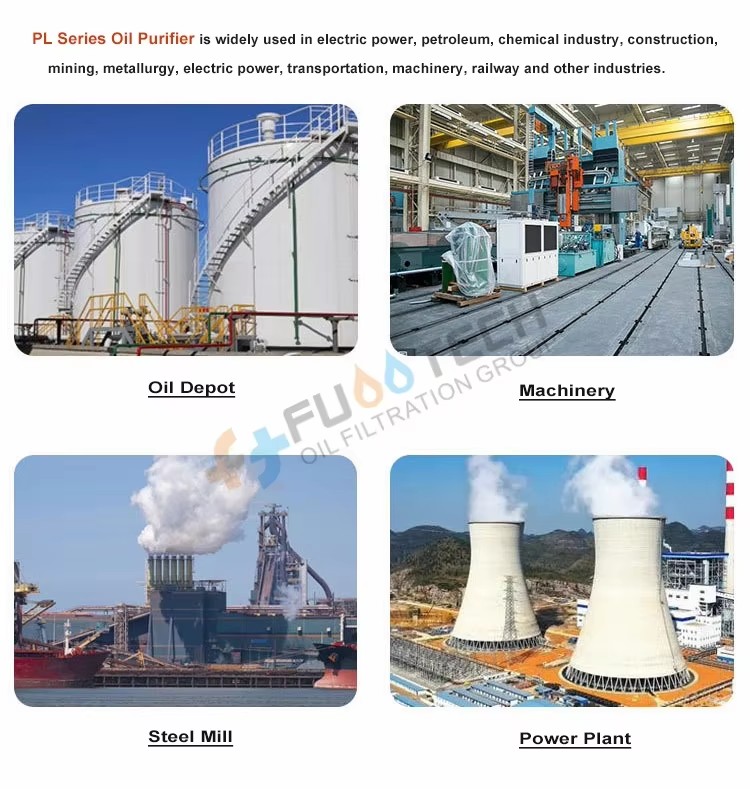

Plate Frame Pressurized Type Oil Purifier is specially designed for power station, electricity factory, power electrical substation of industrial and mining enterprise, lube oil depot, tractor station, petroleum, chemical engineering, metallurgy, national defense industry, etc, filtering water content and impurities of transformer oil, turbine oil, engine oil, EP gear oil, machine oil, diesel oil, hydraulic oil and as well as filtering edible oil while using stainless steel plates. It’s a great choice as pre-treatment equipment prior to high vacuum oil purifier machines.

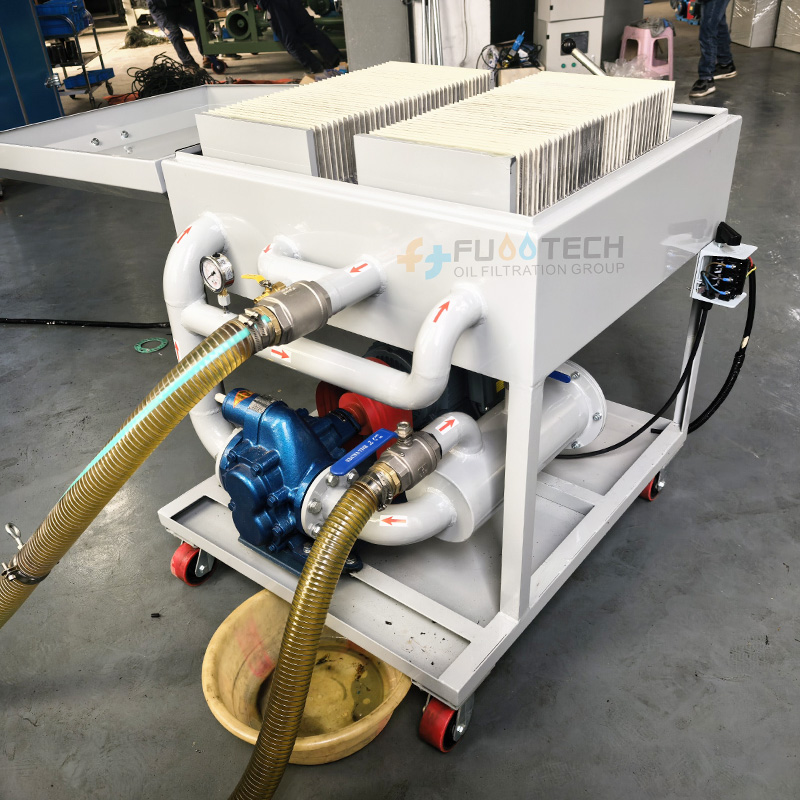

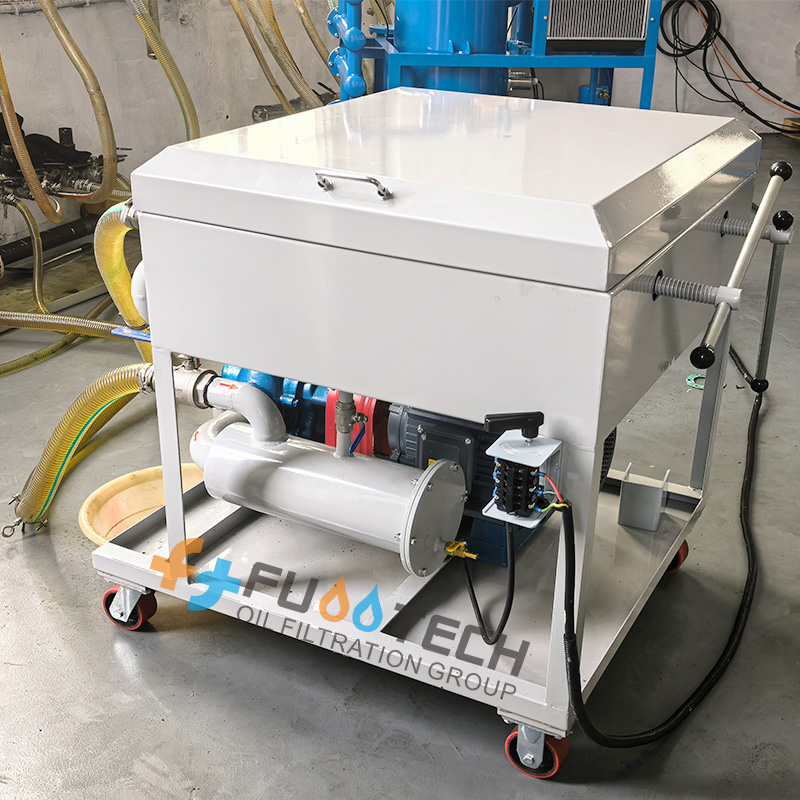

Plate Frame Pressurized Type Oil Purifier Series PL is made up of filtering bed, boosting type oil pump and rough filter. There are filtering media, such as filtering paper or filtering fuse, installed between the steel filter board and filter plate that will be fixed to form a single filtering room under the pressure of the packing device. The filtering paper or filtering fuse packed between the filter board and filter plate will play a role of filtering.
Plate Frame Pressurized Oil Purifier Machine Features
1. Plate pressure type filtering method, filter paper or filter cloth as filter media.
2. No need heating, the additives in the oil are well prevented from degradation or deterioration.
3. Simple structure, small volume, light weight, easy to carry and operate.
4. Low operation cost, Low maintenance time and cost.
5. Special boosting type oil pump has strong suction ability and make the machine to be used in more oil types.6. Low noise, Quick
and convenient to replace filter paper.
7. Can effectively remove the tiny and fine mechanical impurity from oil.
Technical Data
|
Model |
PL -50 |
PL-100 |
PL-125 |
PL-150 |
PL -300 |
PL-500 |
||||||||
|
Flow Rate |
m3/h |
3 |
6 |
7.5 |
9 |
18 |
30 |
|||||||
|
Working Pressure |
MPa |
0 ~ 0.5 |
||||||||||||
|
Filtering Area |
≥m2 |
0.39 |
1.3 |
1.54 |
1.89 |
2.01 |
3.1 |
4.6 |
||||||
|
Board Frame Size |
mm |
180×180 |
280×280 |
|||||||||||
|
Press Manner |
Screw Manually |
|||||||||||||
|
Filter Frame Number |
10 |
10 |
12 |
14 |
18 |
23 |
29 |
|||||||
|
Filter Plate Number |
11 |
11 |
13 |
15 |
19 |
24 |
30 |
|||||||
|
Gear Oil Pump |
Flow |
L/min |
>50 |
>100 |
>125 |
>150 |
>200 |
>300 |
>500 |
|||||
|
|
Safe Pressure |
MPa |
0.6 |
|||||||||||
|
Power supply |
380V, 3Phase, 50hz (or as per user’s option) |
|||||||||||||
|
Viscosity (mm2/S) |
≤46 |
|||||||||||||
|
Motor |
Power |
kW |
3 |
3 |
5 |
8 |
||||||||
|
|
Rotation Speed |
r/min |
1400 |
1440 |
1440 |
|||||||||
|
Filtering precision |
≤ 3 µm |
|||||||||||||
|
Noise dB(A) |
≤ 55 |
|||||||||||||
|
Filter paper size |
mm |
185*190 |
285*290 |
|||||||||||
|
Diameter |
Inlet |
mm |
25 |
32 |
32 |
44 |
44 |
50 |
50 |
|||||
|
|
outlet |
mm |
32 |
44 |
44 |
50 |
50 |
65 |
65 |
|||||
|
Dimension |
Length |
mm |
700 |
750 |
1120 |
1200 |
1620 |
|||||||
|
|
Width |
mm |
300 |
600 |
||||||||||
|
|
Height |
mm |
720 |
920 |
1260 |
|||||||||
|
Weight |
Kg |
115 |
180 |
250 |
270 |
300 |
330 |
600 |
||||||
