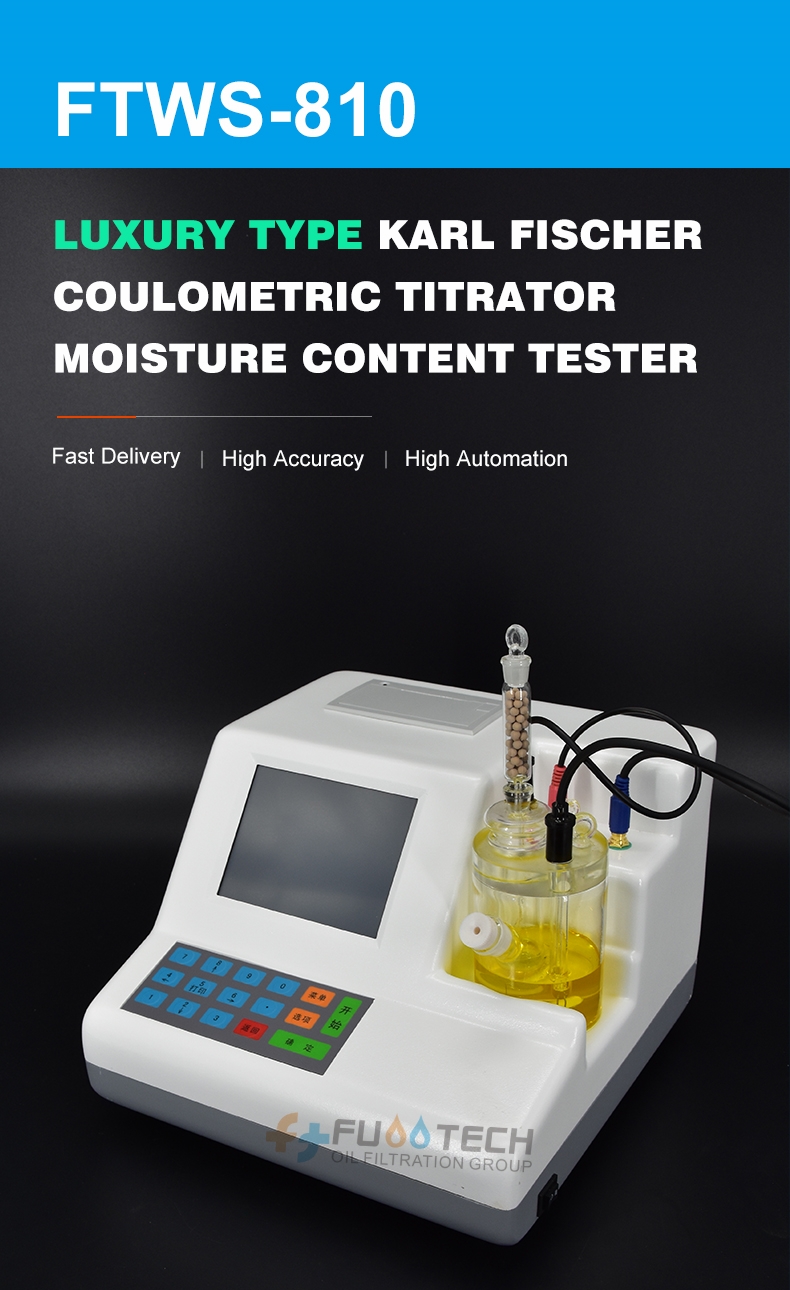

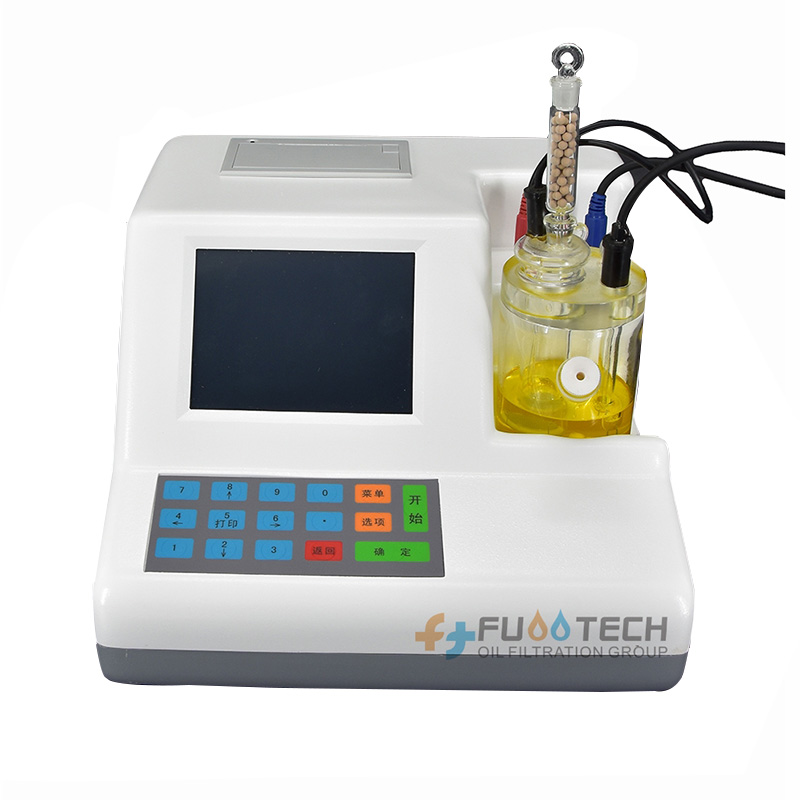

FTWS-810 Luxury type Automatic Karl Fischer Water Content tester is used for Coulometric water determination of the trace moisture content in solids, liquids, and gases with different properties according to Karl Fischer as per ASTM D1533, ASTM D6304, GB/T1600, GB7600, B/T 18619.1, GB/T 11133, SH/T 0246, SH/T 0255, etc.
Karl Fischer Coulomb titration is the most reliable method to detect trace moisture for different substances, which was utilized successfully by FTWS-810 trace moisture titrator.
This trace water tester, with its successful application of the method and utilization of computer aided control system, enables a fast determination and higher accuracy while titrated findings are directly displayed on a digital screen. Its self-diagnosis for fault and information display functions help to achieve a more efficient automatic operation.
This Karl Fischer Oil Trace Water Content Analyzer adopts new processor and circuit, excellent low-power consumption. Use measuring electrode signal as the criterion for the end of electrolysis. The stability and accuracy are the critical factor of effect on measurement accuracy. Due to use advanced components and method, make it possible to accurately measure electrode signal and further understand the characteristics of electrolyte. Accurately measure the trace water in liquid, solid and gas, applied to electric power, petroleum, chemical, pharmaceutical and food industries.
1. Application fields:
1). Liquids:
l Chemical industry: alcohols, ethers, esters, acids, alkanes, benzene, amines, organic solvents, phenols and other organic products suitable for determination by the Karl-Fischer method.
l Petroleum and electric power industry: insulating oil, transformer oil, turbine oil and other oil products
l Pharmaceutical industry: pharmaceutical raw materials, etc.
l Pesticide industry: emulsifiers, etc.
l Other industries: lithium battery electrolyte, etc.
2). Solids: Soluble solids such as inorganic salts, citric acid, explosives, paraffin, etc.
3). Gas: natural gas, liquefied gas, Freon, butadiene, methyl chloride and other gases.
Technical Parameters
|
FTWS-810 Luxury Type Coulometric Karl Fischer Oil Water Content Tester |
|
|
Titration method |
Coulometric titration（Coulomb analysis） |
|
Display |
Color LCD touch screen display |
|
Electrolytic current control |
0～400mA automatic control |
|
Measurement scope |
1ug～200mg |
|
Resolution |
0.1µg H2O |
|
Accuracy |
10µg～1000µg: ±3µg above 1mg: ≤0.3% |
|
Control |
Touch screen + Keypad |
|
Communication interface |
With RS232 interface, available to connect to PC |
|
Printer |
Built-in micro thermal printer |
|
Power supply |
220V±10%、50Hz |
|
Power |
＜ 40W |
|
Ambient temperature |
Room temperature ～40℃ |
|
Ambient humidity |
≤ 85% |
|

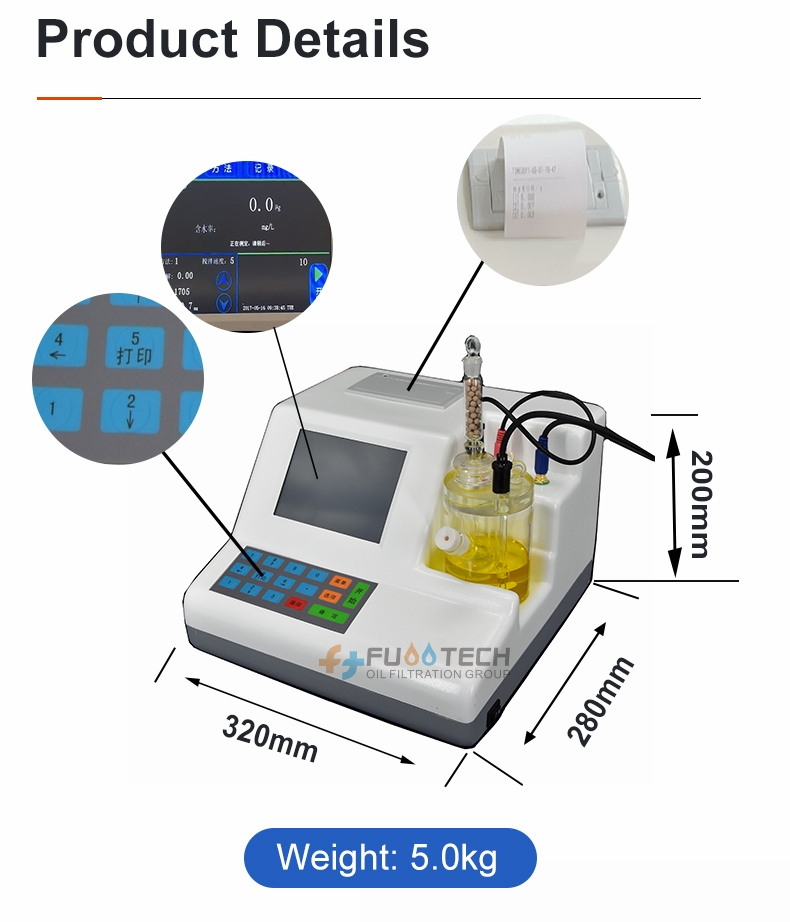

Dimension |
320×280×200mm |
|
Weight |
About 5kg |
Functions & Features
1). Utilizing 32 bit embedded micro-controller processor as the master control core and embedded mini operating system.
2.) High accuracy of constant current detection, fast measurement speed, stable and reliable.
3). Real-time electrolysis curve to observe reagent status at any time.
4). Double-layer PCB motherboard uses high-quality SMD components, with high integration, simple operation and long life.
5). Contains 6 calculation methods, the measurement results are automatically converted to the required units, and can be converted to each other.
6) . Touch screen and physical keypad are available, simple operation and super long service life.
7). Upto 1,000 groups of data can be stored, and the operator’s name can be set for easy search, and the reagent failure prompt is available as well.
8). Built-in micro thermal printer.
9). With time records for convenience checking.
10). equipped with automatic discharge and liquid addition function, which can greatly improve the working environment.
11). RS232 interface included, enable to connect with PC.
