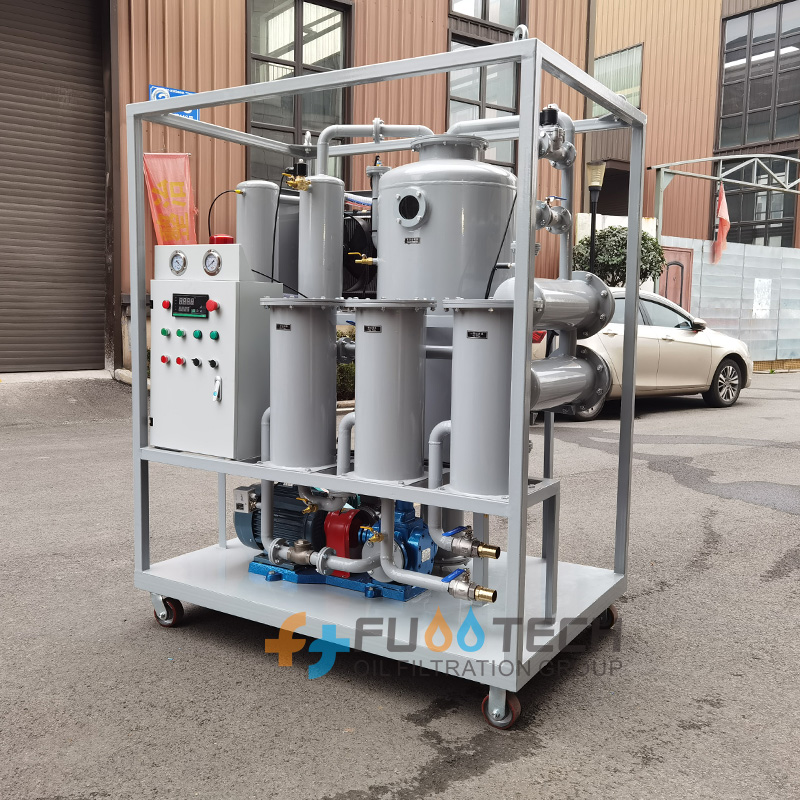

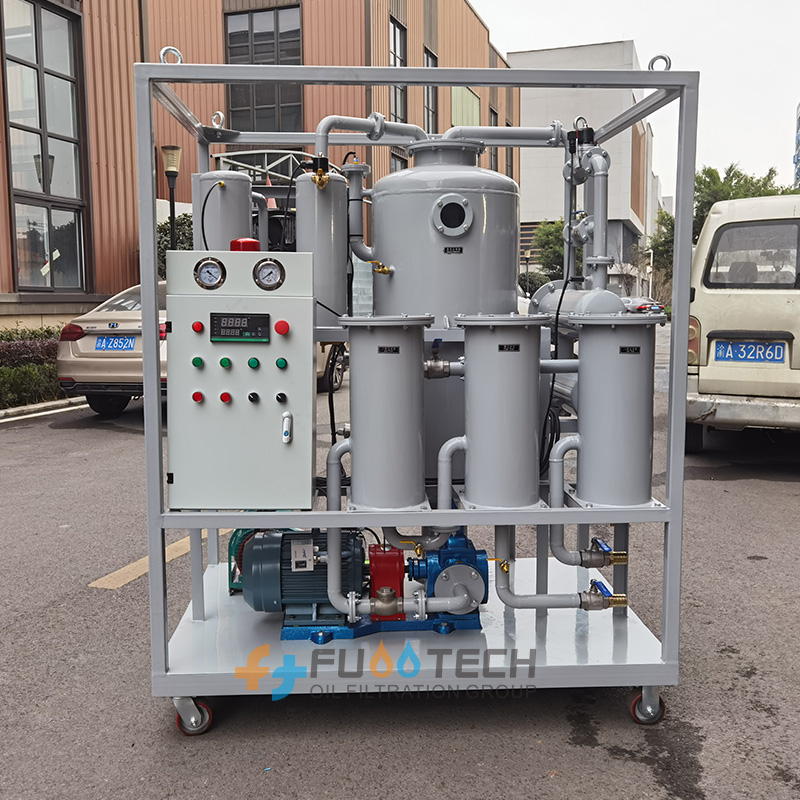

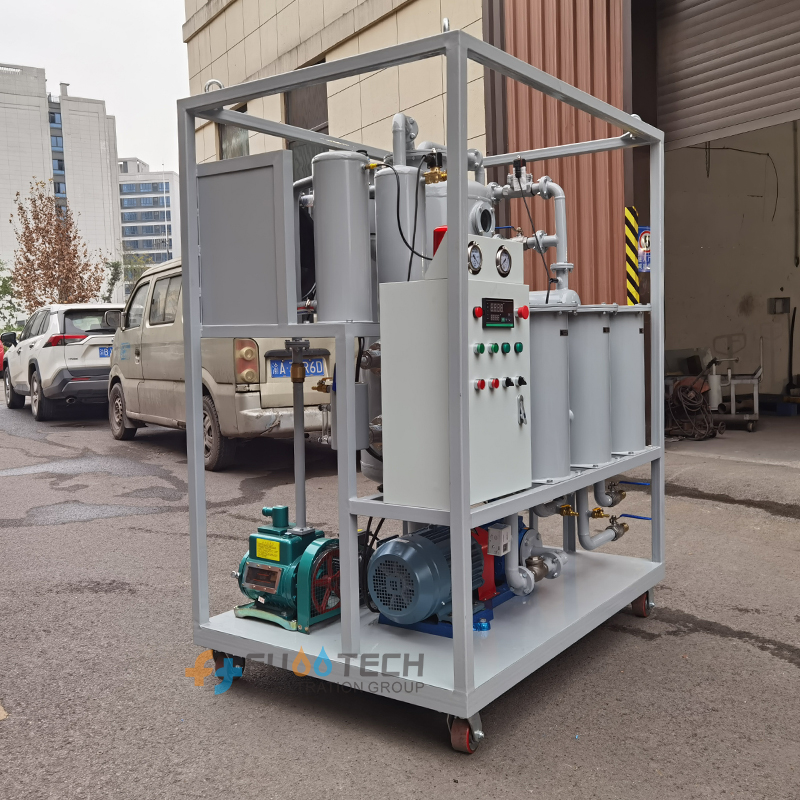

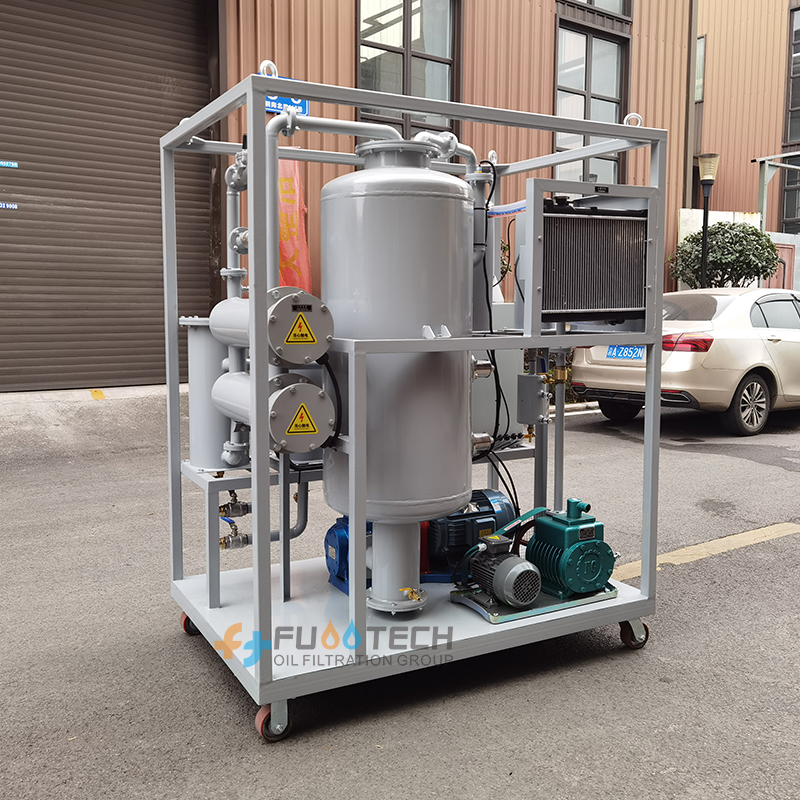

Model No.: LOP-300 18000l/h

Lube Oil Filter Machine can quickly remove moisture, gas, impurities and volatiles from oil. Improve oil quality, restore lubricating oil viscosity, flash point and performance. Guarantee the normal operation of the hydraulic system, power system and lubrication system, especially suitable for the purification and regeneration of hydraulic oil, mechanical oil, cooling oil and other lubricating oil in oil fields, mines, metallurgy, electric power, transportation, manufacturing and other industries.

Inquiry Now

Detailed Description

Inquiry Now

Technical Parameters

Item	Unit	LOP-10	LOP-20	LOP-30	LOP-50	LOP-100	LOP-150	LOP-200		LOP-300
Flow rate	L/H	600	1200	1800	3000	6000	9000	12000		18000
Vacuum degree	Mpa	-0.06 ~ - 0.095
Working pressure	Mpa	≤0.4
Temperature Control Range	℃	0 ~ 100
Operation Temperature	℃	50 ~ 70
Power supply		380 VAC, 50 Hz, 3 Phase (or as per required)
Working noise	DB (A)	≤ 65 ~ 90
Electric heating power	KW	18	24	26	30	48	60		96		135
Total electric power	KW	19.3	25.3	27.6	32.6	56	69		106.5		147
Inlet (outlet) caliber	mm	Ф25	Ф25	Ф25	Ф32	Ф42	Ф50		Ф50		Ф60
Dimension (L × W × H)	mm	1190 x1000 x 1400	1550 x1050 x1600	1600 x1050 x1650	1600 x 1150 x1700	1750 x1250 x 1800	1900 x1600 x1950		1900 x1700 x2000		2100 x1700 x2100
Weight	Kg	450	550	600	750	850	1000		1200		1500

Note: 1. The dimension and weight will be changed with changing of technical specs.

2. All the specs can be customized according to client's requirements.

Dehydration System :

The free water quickly forms water vapor and passes through the coalescence separation device (mainly using lipophilic and hydrophobic high-tech materials), The main purpose is to allow the oil to pass smoothly and the water to be automatically separated; for dissolved water and emulsified water, a high score is used. Sub-emulsification system, German three-dimensional flash evaporation technology, for micro water, an atomization generating device, three-dimensional Three-dimensional evaporation device, thin film vaporization, Bowel surface expansion device, truly realize binary one-time dehydration and rapid separation The water in the oil is separated and deeply dehydrated, reaching ≤5PPM.

High-quality filtration and impurity removal system :

We know that various filter elements made of various filters, filter cloths or filter papers can only use their pore sizes to to filter out impurities, but not for impurities smaller than the pore size. For this reason, we use dual-system impurity removal method, that is, first remove all impurities in the oil with a particle size ≥5 μm through a mesh filter element; Then the FH type filter element is made of molecular adsorption material (H.D.M) imported from Germany to pass impurities ≤5μm through It removes 1-5μm impurities in the oil through adsorption to ensure the cleanliness of the oil reaches NSA6 level.

Vacuum Lubricating Oil Purifier :

1. Strong ability to filter out impurities. The large-area and deep-level precision filter material can remove fine particles in the oil.

	2. The German H.P.M polymer material is used for demulsification, so that the demulsification filter element is not only more thorough in demulsification, but also the life of the filter element can reach ten years without replacement.

	3. Advanced medium heat-absorbing condensation system.

	4. The machine is equipped with pressure protection, automatic temperature control and heating, automatic separation of condensed water device, and drainage during line operation. The operation is simple, safe and reliable.

	5. High-quality filter material is used, which has a large amount of dirt holding capacity, corrosion resistance, high temperature resistance, high mechanical strength, high precision of impurity removal, and long service life.

	6. Unique degassing and dehydration system: It adopts three-dimensional evaporation technology and multi-layer oil-water separation technology to quickly separate water, gas and impurities in oil.

	7. The combination of double mesh filtration and molecular adsorption is used to remove impurities, which can not only ensure the cleanliness of the oil, but also ensure the particle size of the oil.

	8. The use of dual infrared liquid level control completely avoids the phenomenon of oil leakage, completely achieves the separation of man and machine, and realizes online operation and continuous work for more than 150 hours under the condition of unmanned monitoring.

	9. The German 3UG3 phase relay and trinity interlocking protection device are adopted, so that the equipment can be perfectly protected in any state.

	10. This lubrecating oil purifier has the characteristics of small size, high efficiency, and convenient movement, and is especially suitable for on-site online operation.
