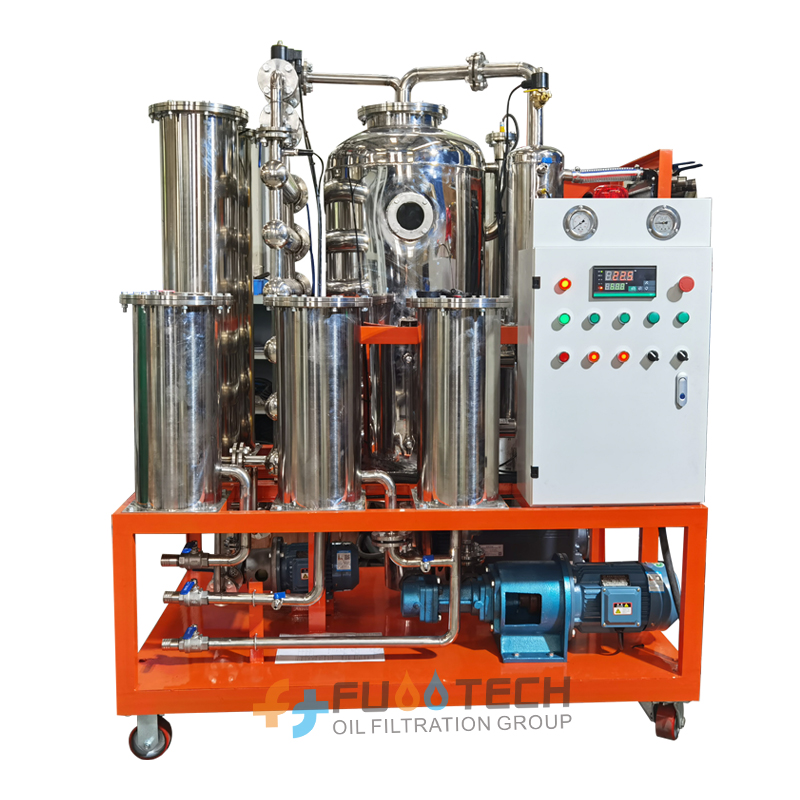

Phosphate Ester Anti-Fuel Oil Purifier

Model No.: LOP-I

Series LOP-I EH oil purification machine can treat and regenerate the degenerative fire-resistant oil, removing acid, pigment, gas, water and particles from oil effectively. This machine’s body is made of acid and dissolving resistant special full stainless steel materials, which are compatible with fire-resistant oil, combined with technologies of vacuum dewatering, multi-stage filtration system and new adsorbent to ensure treated oil to achieve new fire-resistant oil properties.

Inquiry Now

Detailed Description

Inquiry Now

Series LOP-I is the necessary purifying equipment for the sectors which use fire-resistant oil, it can be online working and oil-filling.

Technical Parameters

Parameter		Unit	LOP-I-10	LOP-I -20	LOP-I -30	LOP-I -50	LOP-I -70	LOP-I -100
Flow rate		L/h	600	1200	1800	3000	4200	6000
Working vacuum		MPa	-0.07~-0.095
Working pressure		MPa	≤0.4
Power supply			380V 50HZ 3Phse (or As per user’s option)
Working noise		dB(A)	≤65~80
Operation Temperature		℃	40 ~ 60
Heating power		KW	12	18	24	30	36	54
Total power		KW	17	20	26	33	39	59
Diameter of inlet and outlet		DN	25	25	25	32	32	40
Dimension	L	mm	1000	1100	1250	1400	1500	1700
	W	mm	800	850	900	1100	1250	1300
	H	mm	1200	1400	1500	1600	1700	1800
Weight		KGS	250	350	550	750	900	950

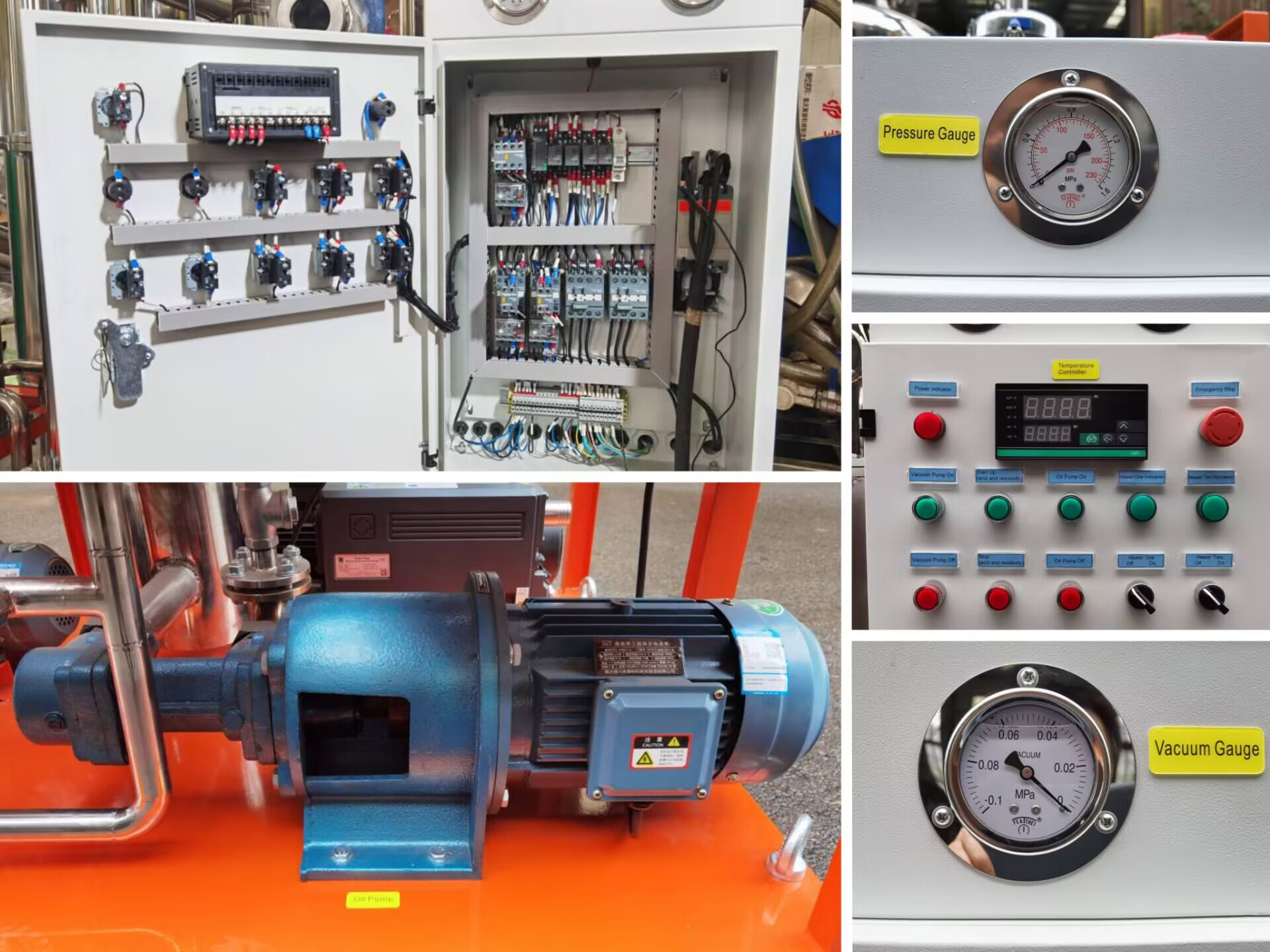

Features

1). This machine’s body is made of acid and dissolving resistant special full stainless steel materials, which are compatible with fire-resistant oil, combined with technologies of vacuum dewatering, multi-stage filtration system and new adsorbent to ensure treated oil to achieve new fire-resistant oil properties.

2). Stainless steel machine body, pipes and filtering components, reliable, anti-corrosion, durable.

3). Duplex 3D Stereo-evaporation technology, equipped with unique and advanced dewatering, degassing components, can rapidly and effectively remove water, gas, particles and volatile matter

4). Advanced medium cooling system

5). High quality filtering components, large capacity for holding particles, anti-corrosion, good mechanical performance, long lifetime.

6). Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.

Oil Result after Purification

Moisture (Water Content)	≤ 100 PPM
Gas/air Content	≤0.1%
Filtering Accuracy	≤ 1 micron
Resistivity value	≤6×109 Ω.cm
Acid Value	≤0.05 mg KOH/g
Cleanliness	≤NAS 1638 Grade 5
