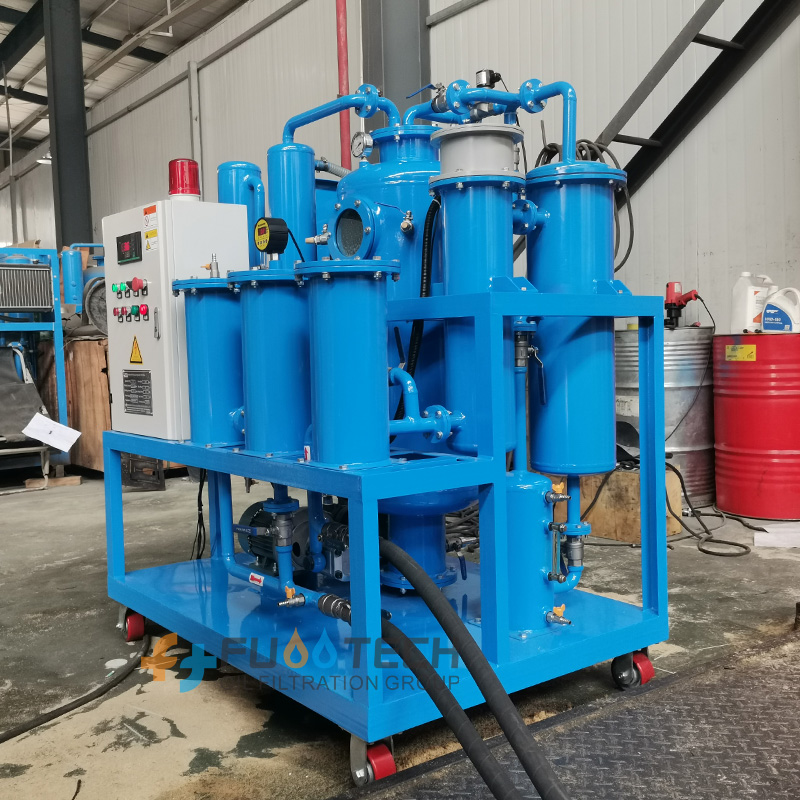

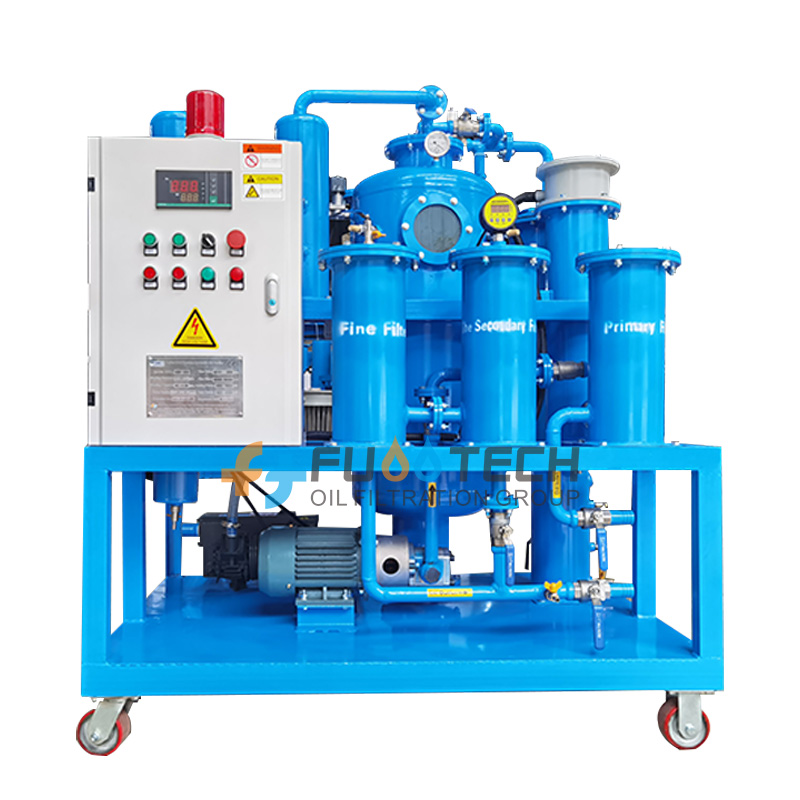

Vacuum Hydraulic Oil Purifier

Model No.: HOC

Series HOC HVacuum Hydraulic Oil Purifier manufactured by FUOOTECH is capable of effectively purifying all types of hydraulic oils at grade ISO-VG-32, 46, 68, 100, etc… by reducing the water content from 500 ppm downto 80 ppm, and separating (removing) the free water, dissolved water, sludge, gas content and carbon from hydraulic oil.

Inquiry Now

Detailed Description

Inquiry Now

		Our HOC Series Vacuum Hydraulic Oil Purifier is also used for cleaning and filtering the other industrial lube oils such as gear oil, compressor oil, conduction oil, heavy duty gear oil, refrigerator oil, etc.. used in the power generation, hydraulic system, machinery, metallurgy, mining, petroleum, chemical industry and other fields.


Technical Parameters

Item	Unit	HOC-10	HOC-20	HOC-30	HOC-50	HOC-100	HOC-150	HOC-200		HOC-300
Flow rate	L/H	600	1200	1800	3000	6000	9000	12000		18000
Vacuum degree	Mpa	-0.06 ~ - 0.095
Working pressure	Mpa	≤0.4
Temperature Control Range	℃	0 ~ 100
Operation Temperature	℃	50 ~ 70
Power supply		380 VAC, 50 Hz, 3 Phase (or as per required)
Working noise	DB (A)	≤ 65 ~ 90
Electric heating power	KW	18	24	26	30	48	60		96		135
Total electric power	KW	19.3	25.3	27.6	32.6	56	69		106.5		147
Inlet (outlet) caliber	mm	Ф25	Ф25	Ф25	Ф32	Ф42	Ф50		Ф50		Ф60
Dimension (L × W × H)	mm	1190 x1000 x 1400	1550 x1050 x1600	1600 x1050 x1650	1600 x 1150 x1700	1750 x1250 x 1800	1900 x1600 x1950		1900 x1700 x2000		2100 x1700 x2100
Weight	Kg	450	550	600	750	850	1000		1200		1500

Note: 1. The dimension and weight will be changed with changing of technical specs.

2. All the specs can be customized according to client's requirements.

Features

1) Fast dehydration and gas separating system, effectively separate and remove the trace water and dissolved gas content from the hydraulic oil.

2) Strong ability of breaking emulsification, remove more free water and dissolved water content.

3). ultra-large area cylindrical precision filter element, with high filtration accuracy, easy installation and replacement.

4). Excellent heating system with long service life, low heating surface load, linear temperature rise, preventing oil cracking, keeping oil uniform heating.

5) Automatic control to realize unattended, safe and stable working.

6) Innovative automatic defoaming, automatic liquid level control, automatic constant temperature, automatic pressure protection and sophisticated configuration, high degree of automation, sensitive and reliable operation, to ensure the high-performance operation of the equipment.

7). low noise, long maintenance interval, low energy consumption, low operating cost, high oil filtration efficiency, long lifetime, etc.

8). Compact in structure, simple in operation.
