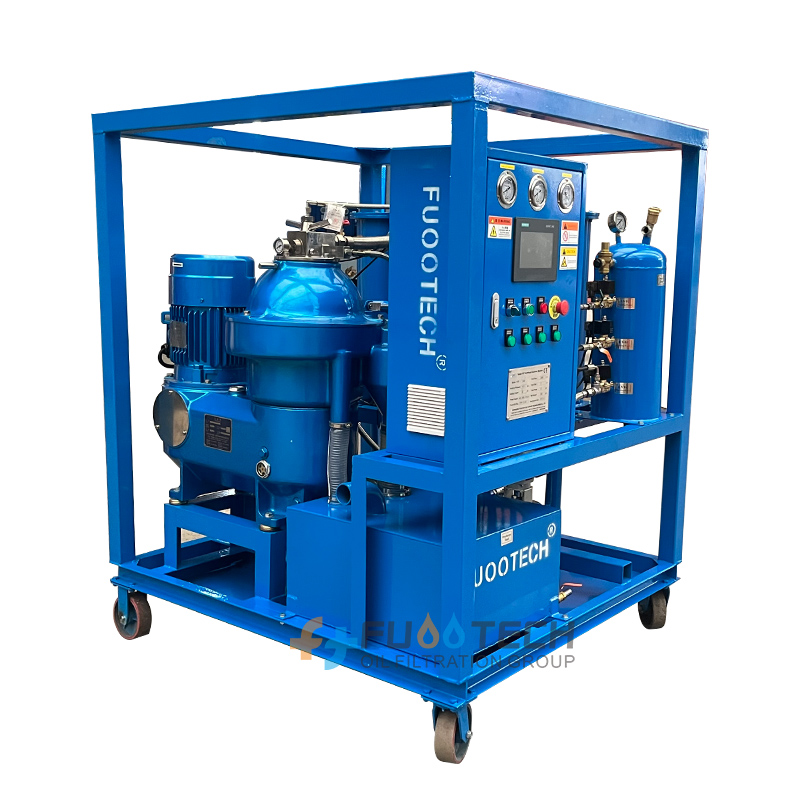

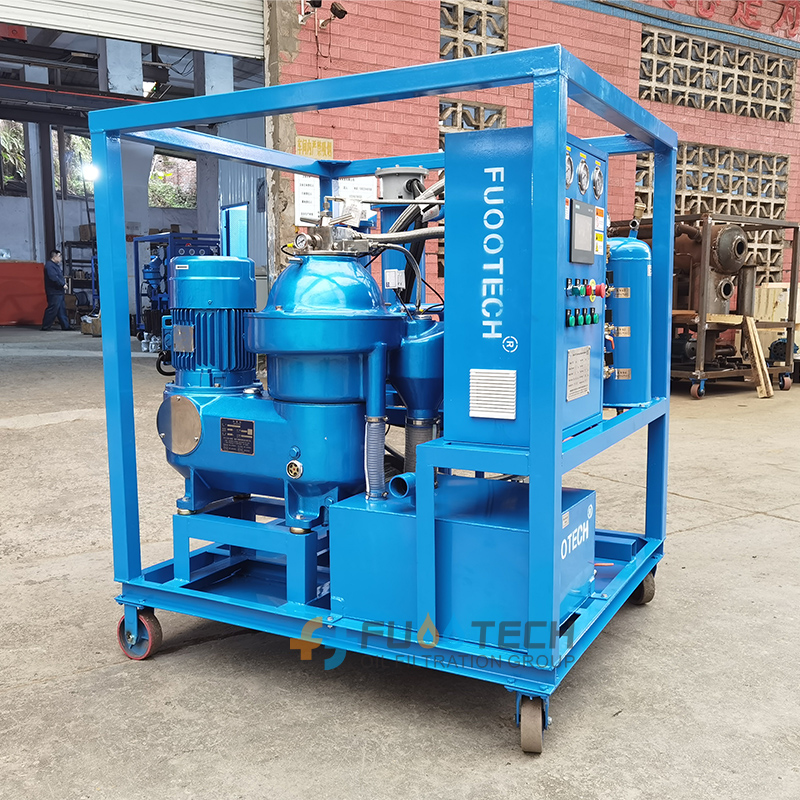

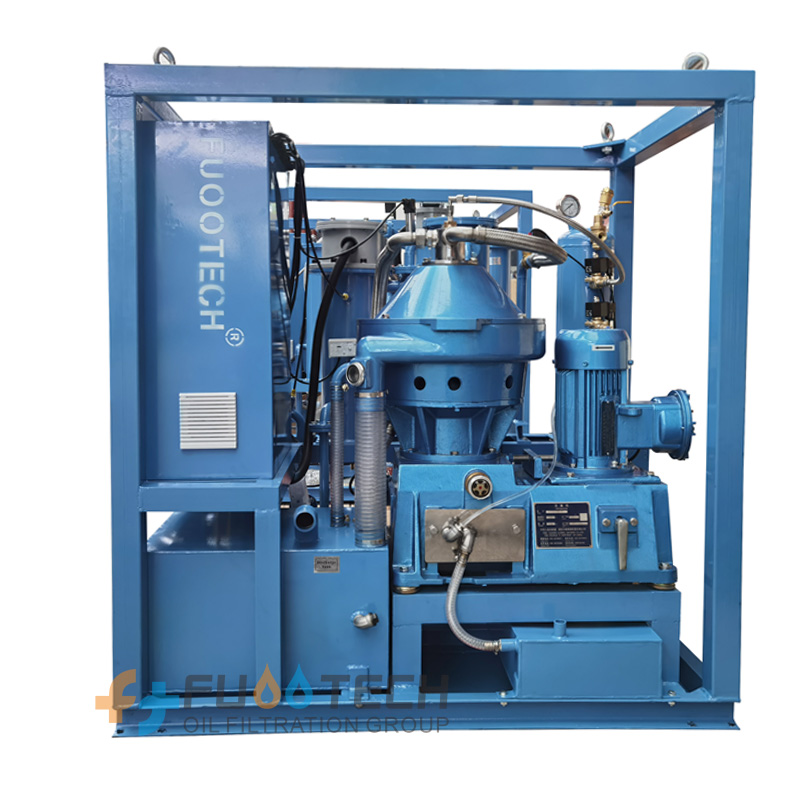

Centrifugal Oil Water Separator

Model No.: FCF

FCF Series Centrifugal Oil Water Separator is mainly used for separation of free water and impurities from oil, it is wildly used for the clarification and purification of gasoline oil, ship heavy diesel oil, and turbine oil, reduce operating costs and extend the life of the engine.

Inquiry Now

Detailed Description

Inquiry Now

FCF Series Disc-type Centrifugal Oil Separator Purifier is mainly used for separation of free water and impurities from oil, it is wildly used for the clarification and purification of gasoline oil, ship heavy diesel oil, and turbine oil, reduce operating costs and extend the life of the engine.

FCF Series Centrifugal Oil Water Separator also can be applied to high viscosity lubricating oil, hydraulic oil clarification and purification to slow wear of diesel engine or other types of machines, and extend the service life of the machine and oil. This model can also be used for the separation of heterogeneous suspensions or emulsions in other fields.

Technical Parameters

Model		Unit	FCF-1000	FCF-1500	FCF-2000	FCF-3000	FCF-4000	FCF-6000	FCF-8000
Capacity		L/hr	1000	1500	2000	3000	4000	6000	8000
Running speed		r/min	8000 ~ 9500
Working Pressure		MPa	≤0.3
Temperature		℃	0 ~ 100
Power Supply			380V, 50HZ, 3PH (Customized)
Sludge-discharge			Automatic
Water-discharge			Manual/Automatic
Continuous working time			≥150h
Trouble-free working time			≥5000h
Noise		dB(A)	≤80
Heater Power (if included)		kW	24	30	36	42	60	78	90
Total Power		kW	27	33	39	46	66	86	101
Inlet & Outlet Diameter		mm	DN20	DN20	DN25	DN32	DN32	DN42	DN50
Weight		Kgs	580	650	760	850	980	1100	1400
Dimension	L	mm	1300	1380	1400	1450	1550	1660	1750
	W	mm	900	1000	1100	1150	1230	1350	1400
	H	mm	1400	1460	1500	1580	1650	1750	1800

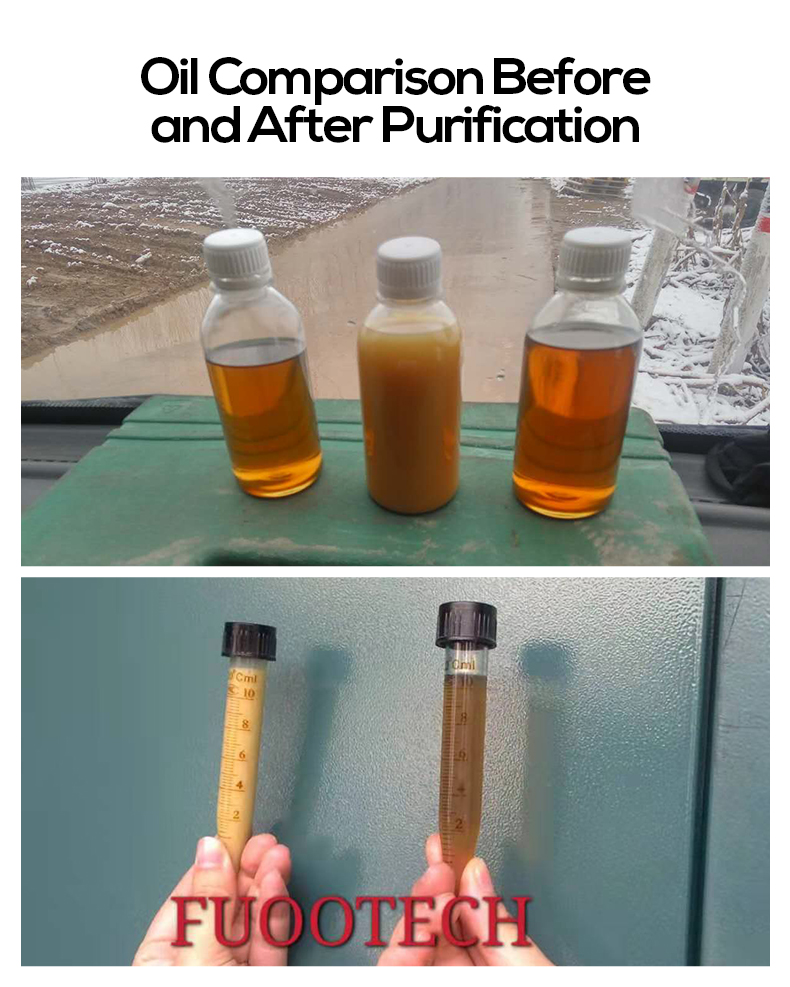

After treatment			Water content: ≤ 100ppm
			Particles: ≤ 5μm
			Cleanness: NAS 6 grade

Note: 1. The dimension and weight will be changed with changing of technical specs.

2. All the specs can be customized according to client's requirements.

Centrifugal Oil Water Separator Features :

1) High effective Filtration System. Adopting progressive filtering tech, the best precision can be upto 0.5 micron, which can remove more than 99.99% of impurities from the oil.

2) High density heater system, which can speed up water removal by increasing oil temperature that can help water molecule get away from oil molecule more quickly after get heating. But over-heating may damage the oil’s quality, FUOOTECH choose the high density heater system to solve this matter, making the heating load less than 1.5W/cm2, stable temperature controller controls the oil heating temperature automatically, safe and reliable.

3). With famous brands of Electrical components and protection system for over-voltage, over-current, over-load, phases lacking, etc., any problems happen, the whole machine stops automatically.

4). Advanced protection for blockage on oil inlet point where vacuum transmitter is installed, if it’s blocked, machine will stop automatically.

5). Continuous unmanned operation.

6) High separating efficiency.

7) Electric control panel with vacuum indicator, pressure indicator, digtal type temperature controlling system with indicator and automatic shut-down system.
