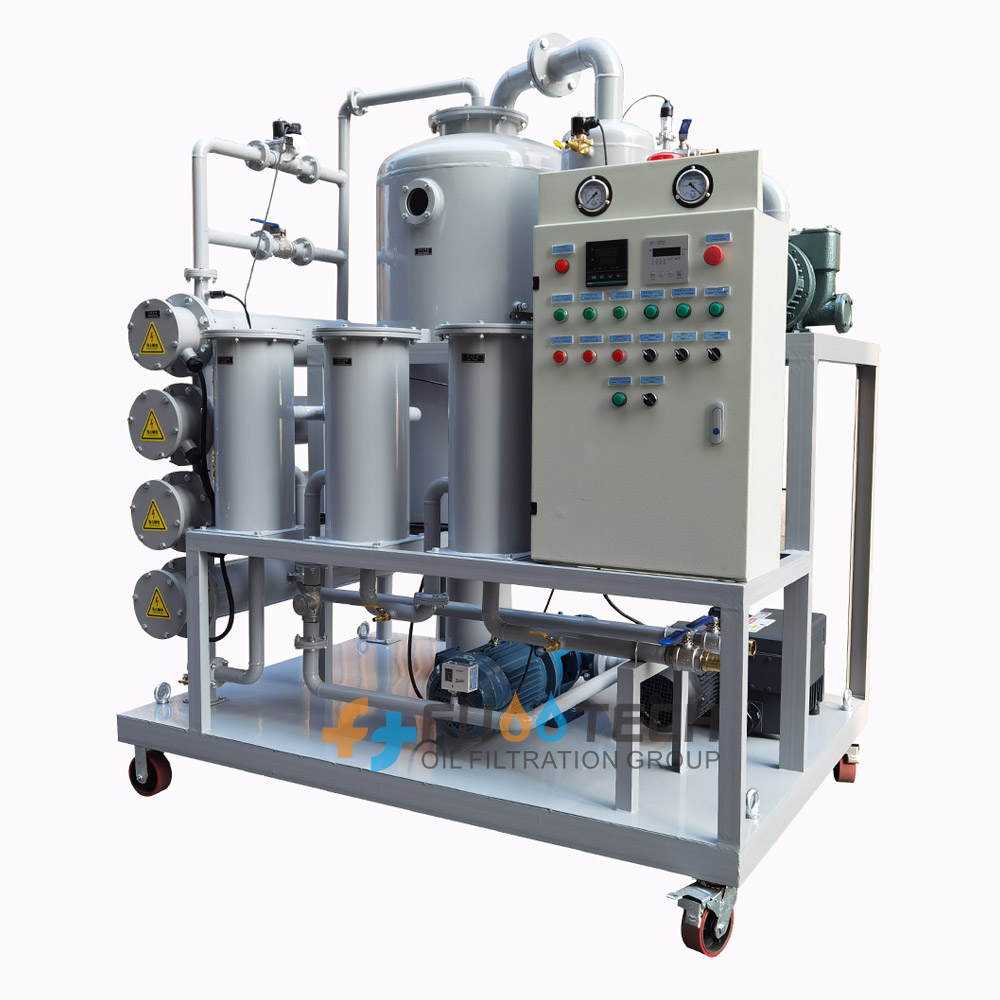

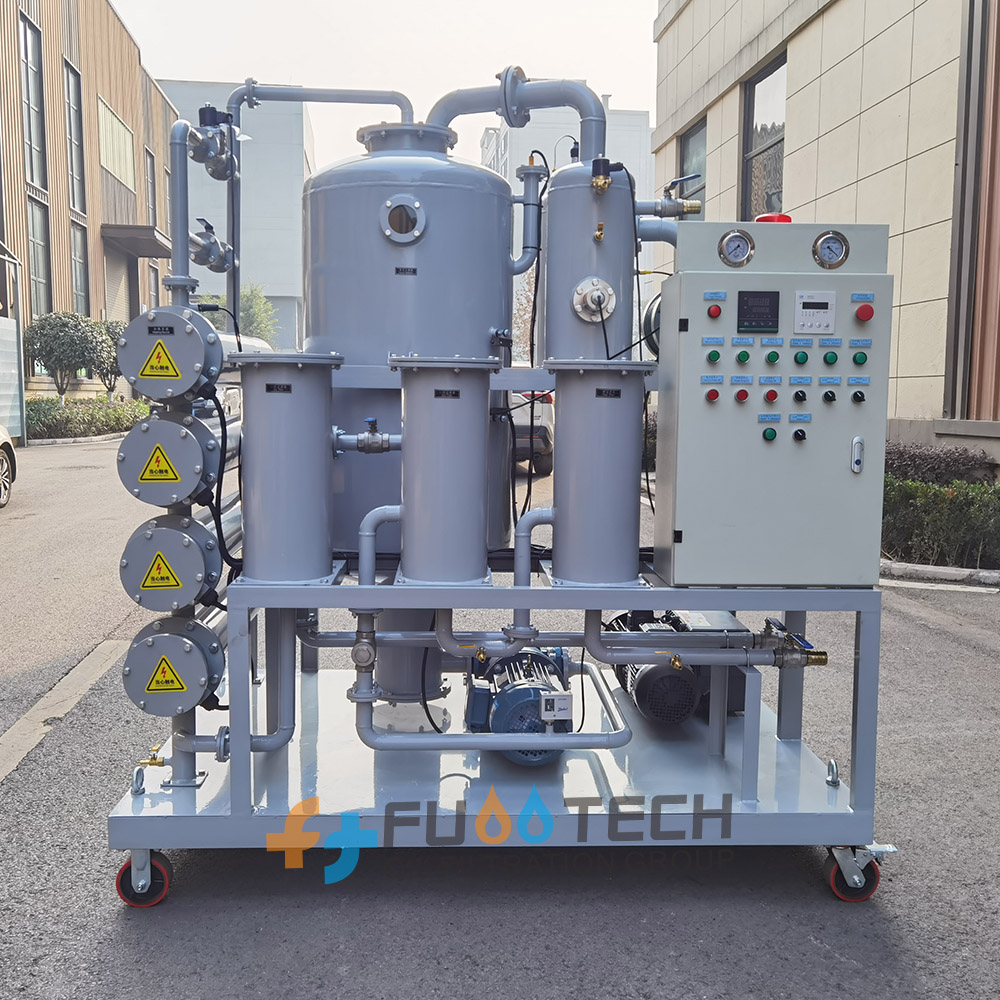

Fully Automatic ZYD Double Stage Oil Purifier Machine Vacuum Transformer Oil Purifier

Fully Automatic ZYD Double Stage Oil Purifier Machine Vacuum Transformer Oil Purifier

Model No.: ZYD

The ZYD series double-stage vacuum transformer oil purifier can quickly and deeply effectively remove harmful components such as moisture, gas and impurities in the transformer oil, and improve the insulation performance of the oil. The filtered oil can effectively ensure the safety and normality of power equipment.

Inquiry Now

Detailed Description

Inquiry Now

	The ZYD series double-stage vacuum transformer oil purifier can quickly and deeply effectively remove harmful components such as moisture, gas and impurities in the transformer oil, and improve the insulation performance of the oil. The filtered oil can effectively ensure the safety and normality of power equipment.

	ZYD vacuum dehydration oil purification system is widely used in oil purification treatment for customers in power supply, power generation, power transmission and transformation, power equipment manufacturing, power engineering, electrical equipment maintenance, power testing, electrical scientific research and other industries. It is especially suitable for in-depth treatment of high-grade transformer oil and ultra-high-grade transformer oil, and can be used for on-site live oil filtering operations in substations above 110KV/220KV/500KV.

This transformer oil purifier has the functions of vacuum drying, vacuum oil filling, hot oil circulation, etc. It can also be used as a separate vacuum pumping unit to vacuum transformers and power equipment.

Transformer Oil Purifier Features:

1.Double-stage high vacuum pumping system, strong power of vacuum evacuating, ultimate vacuum value≤ 5Pa.



Big capacity of moisture ands gas separating chamber, efficient oil film evaporation, increasing separating size and separating time to ensure the dry-level and dielectric strength of oil improving greatly.



Duplex-Stereo film evaporation technology, combined with unique and advanced dewatering, degassing components, rapidly and effectively separate water, gas from oil.



Multi-stage precision filtration system, mesh filtration combined with molecular adsorption technologies, maximum remove the particles and impurities.



Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.



Double-safety liquid level controller, pressure protective system and foaming elimination system to ensure machine operating easily and safely.



Adopt interlocked protective system, connecting oil discharge pump, heater and liquid level sensor, avoids blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.



Can be used independent device for vacuuming transformers and vacuum oil filling for power equipment.



Can work online for over 150 hours continuously, high reliable and long time running.

Technical Parameters

Parameters		Model Unit	ZYD-30	ZYD-50	ZYD-100	ZYD-150	ZYD-200	ZYD-250	ZYD-300
Flow Rate		L/H	1800	3000	6000	9000	12000	15000	18000
Working Vacuum Degree		MPa	-0.08 ～ -0.099
Working Discharge Pressure		MPa	≤ 0.3
Temperature Control Range		℃	20 ～ 80
Operation Temperature		℃	40 ~ 70 (65℃ is best)
Power Supply			380V, 50Hz, 3 phases (or as per your requirements)
Working hours without Trouble		Hour	4000
Continuous Working Hours		Hour	150
Ambient Temperature			-25 ～ 55℃
Working Noise		dB（A）	65 ~ 90
Heating Power (adjusted available)		KW	30	36	48	60	72	80	120
Total Power		KW	35.5	42	52.5	68	82	93	135
Inlet/Outlet		mm	φ25	φ32	φ42	φ50	φ50	φ60	φ60
Weight		Kg	600	700	1050	1150	1450	1600	1950
Dimension	Length	mm	1380	1610	1750	1850	1950	2050	2200
