FUOOTECH ZY-M Mobile Trailer Mounted with Weather Proof Type Vacuum Transformer Oil Purifier

FUOOTECH ZY-M Mobile Trailer Mounted with Weather Proof Type Vacuum Transformer Oil Purifier

Model No.: ZY-M-30

ZY-M is outdoor usage mobile type transformer oil purifier equipped with trailer which can move long distance, and equipped with weather proof, dust and water resistance enclosure. It is specially designed for purifying transformer oil, mutual inductor oil, switch oil, capacitor oil in field of power transmission and transformation equipment, electric power department and mining enterprises.

Capacity: 1800 Liters per Hour

Power Supply: 380 V, 50 HZ, 3 Phase (or as per request)

Packing Details: In Standard Exportation Wooden Case

Delivery Time: 10 days

Payment Terms: T/T, L/C, Cash, Negotiable

Certification: CE, CCC, ISO

Inquiry Now

Detailed Description

Inquiry Now

Description:

ZY-M is outdoor usage mobile type transformer oil purifier equipped with trailer which can move long distance, and equipped with weather proof, dust and water resistance enclosure . It is specially designed for purifying transformer oil, mutual inductor oil, switch oil, capacitor oil in field of power transmission and transformation equipment, electric power department and mining enterprises. The process recovers the oil’s dielectrics strength, removes water, gases and particulate matter etc.

Features:

1. ZY-M Series is outdoor usage mobile type machine, small and hi-efficient. Equipped with trailer, it moves easily and is convenient for outdoor use.

2. New type of electric heating system with high efficiency, low heating load, uniform heating, low energy consumption.

3. Multistage precise filtration system; Decontamination technology combining the molecular adsorption filtration and mesh filter.

4. This machine is highly efficient with stereo multistage vacuum system whose efficiency is higher than that of ordinary vacuum oil purifier by 3-5 times. It is able to remove the water, gases and other mechanical impurities out of the insulating oil, and improve the voltage withstanding strength and oil quality, making sure the power equipment works safely. It also has the function of vacuum oiling.

5. Adopting the automatic infrared liquid level control system, automatic constant temperature control system, automatic bubble elimination control system, automatic pressure protection system, automatic interlock protection system and efficient degassing and water removal system to ensure the equipment working safely with high performance.

6. With novel design, compact structure, easy operation and online oil purification. It can work with nobody watching and be used under any environment.

7. Capable of testing the voltage withstanding condition and printing the results. (ZYA series).

8. It can be used together with BZ regeneration device to discolor, remove acid, free carbon and lower the dielectric loss. (ZYB series)

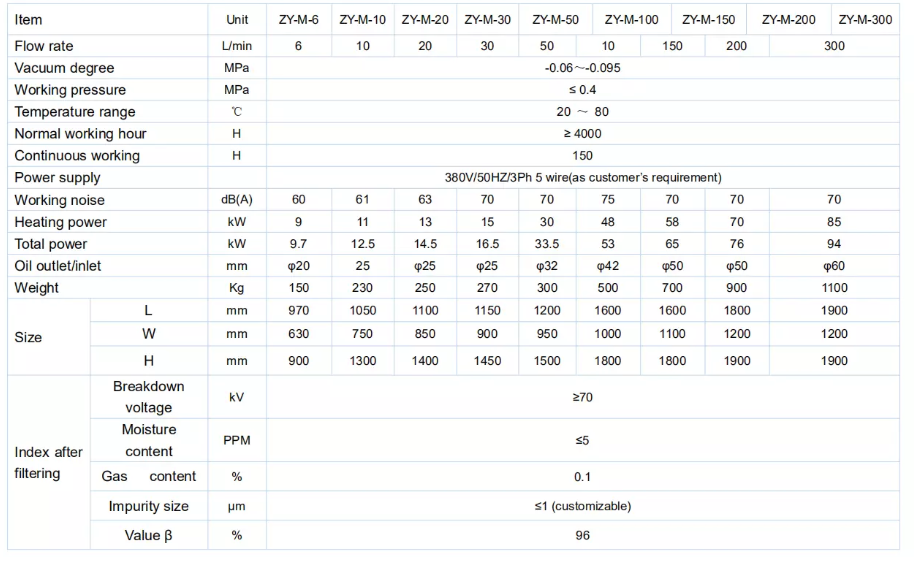

Technical Specification:

Note: 1. The dimension and weight will be changed with changing of technical specs.
2. All the specs can be customized according to client's requirements.

For more info, pls don't hesitate to contact us.
