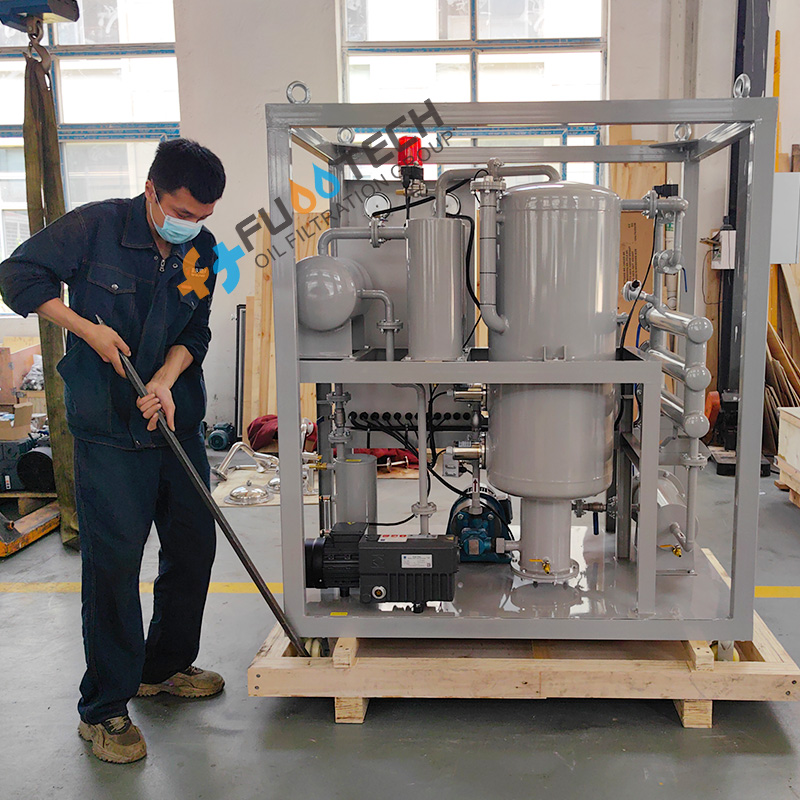

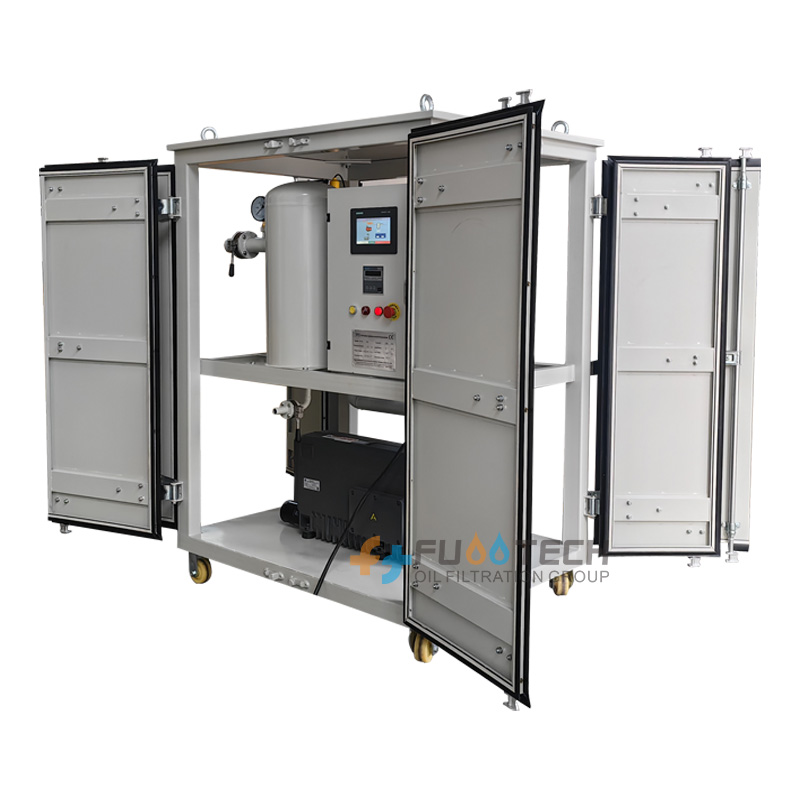

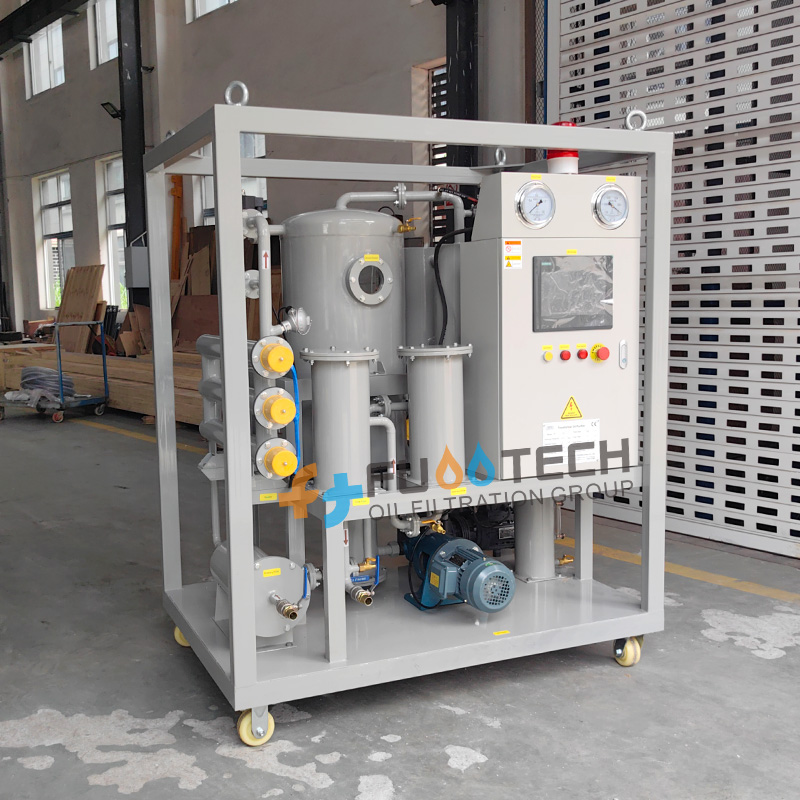

ZY Series Automatic Single Stage Transformer Oil Purifier With PLC Touchscreen

ZY Series Automatic Single Stage Transformer Oil Purifier With PLC Touchscreen

Model No.: Transformer Oil Purifier

Series ZY Transformer Oil Purifier is mainly designed for the power station, industrial andmining enterprises purifying the unqualified transformer oil when powertransformer below 110 kV, mutual inductor oil, switch oil and so on. Oil filter machine can remove liquid water, trace water, gas, particles fromoil quickly and effectively, improving oil dielectric strength. Also, it can beused to power equipments to vacuum drying, vacuum oiling, and vacuumpumping.

Inquiry Now

Detailed Description

Inquiry Now

Fuootech ZY Single-stage Transformer Oil Purifier is mainly designed for the power station, industrial and mining enterprises purifying the unqualified transformer oil when power transformer below 110 kV, mutual inductor oil, switch oil and so on.

		ZY Single-stage Transformer Oil Purifier can remove liquid water, trace water, gas, particles from oil quickly and effectively, improving oil dielectric strength. Also, it can be used to power equipments to vacuum drying, vacuum oiling, and vacuum pumping.


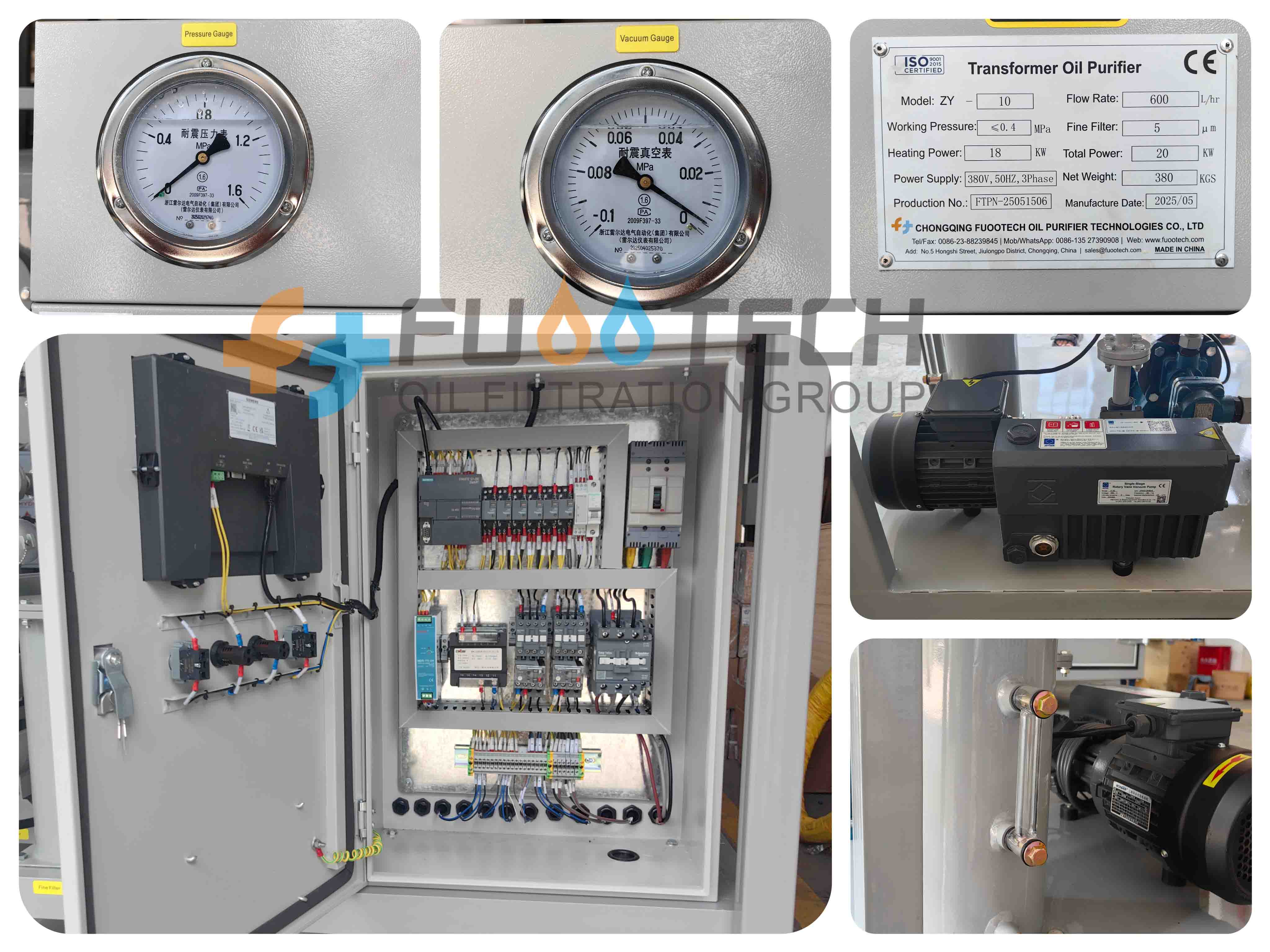

Features

1). Duplex-Stereo 3D film evaporation technology, combined with unique & advanced dehydration and degassing elements, can rapidly and effectively separate water, gas from oil.

2). Multi-stage precision filtration system, stainless steel filters’ filtration combined with molecular adsorption technologies, remove different sizes of impurities and particles thoroughly.

3). Efficient High density electrical heating system adopts special indirect heating method, heating uniformity, less power consumption, safe, and reliable.

4). Double-safety liquid level controlling system and pressure protective system ensure the machine operation easy and safely.

5). Adopts interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak.

6). Fully automatic temperature controlling system, digital type temperature gauge and temperature sensor, monitoring and controlling oil’s actual heating condition and temperature.

7). Small volume, light weight, easily movable, low maintenance cost and time.

Technical Parameters

Parameters

Unit

ZY-10

ZY-20

ZY-30

ZY-50

ZY-100

ZY-150

ZY-200

ZY-300

Flow rate

L/H

600

1200

1800

3000

6000

9000

12000

18000

Working vacuum

MPa

-0.06 ～ -0.095

Working pressure

MPa

≤0.4

≤0.5

Working without Trouble

H

≥4000

Continuous Working

H

≥150

Temperature range

℃

20 ～ 80

Power supply

380V, 3 phase, 50 Hz (or as per your requirements)

Working noise

dB(A)

≤ 80

Heating power

KW

12

13

15

30

48

60

72

90

Total power

KW

13.5

14.5

16.5

33.5

53

65

76

98

Inlet/outlet caliber

mm

φ25

φ25

φ25

φ32

φ42

φ50

Φ60

φ65

Weight

Kg

230

250

280

300

550

700

950

1200

Size

mm

950×

650×

1050

1100×

700×

1350

1150×

850×

1450

1200×

950×

1580

1600×

1000×

1800

1650×

1100×

1850

1800×

1200×

1900

1900×

1200×

2000

After Filtration

(Performance)

Moisture (Water Content)

≤ 8 PPM

Gas Content

≤0.1% (Vol)

Impurities Degree (Filtration precision)

≤ 5 micron

Breakdown Voltage (Dielectric)

≥60 ~ 68 KV

Cleanliness

≤NAS 1638 Grade 6

Note: 1. The dimension and weight will be changed with changing of technical specs.

2. All the specs can be customized according to client's requirements.

Parameters	Unit	ZY-10	ZY-20	ZY-30	ZY-50	ZY-100		ZY-150	ZY-200	ZY-300
Flow rate	L/H	600	1200	1800	3000	6000		9000	12000	18000
Working vacuum	MPa	-0.06 ～ -0.095
Working pressure	MPa	≤0.4				≤0.5
Working without Trouble	H	≥4000
Continuous Working	H	≥150
Temperature range	℃	20 ～ 80
Power supply		380V, 3 phase, 50 Hz (or as per your requirements)
Working noise	dB(A)	≤ 80
Heating power	KW	12	13	15	30	48		60	72	90
Total power	KW	13.5	14.5	16.5	33.5	53		65	76	98
Inlet/outlet caliber	mm	φ25	φ25	φ25	φ32	φ42		φ50	Φ60	φ65
Weight	Kg	230	250	280	300	550		700	950	1200
Size	mm	950× 650× 1050	1100× 700× 1350	1150× 850× 1450	1200× 950× 1580	1600× 1000× 1800		1650× 1100× 1850	1800× 1200× 1900	1900× 1200× 2000
After Filtration (Performance)		Moisture (Water Content)					≤ 8 PPM
		Gas Content					≤0.1% (Vol)
		Impurities Degree (Filtration precision)					≤ 5 micron
		Breakdown Voltage (Dielectric)					≥60 ~ 68 KV
		Cleanliness					≤NAS 1638 Grade 6
