Model No.: PO-600 36000L/H

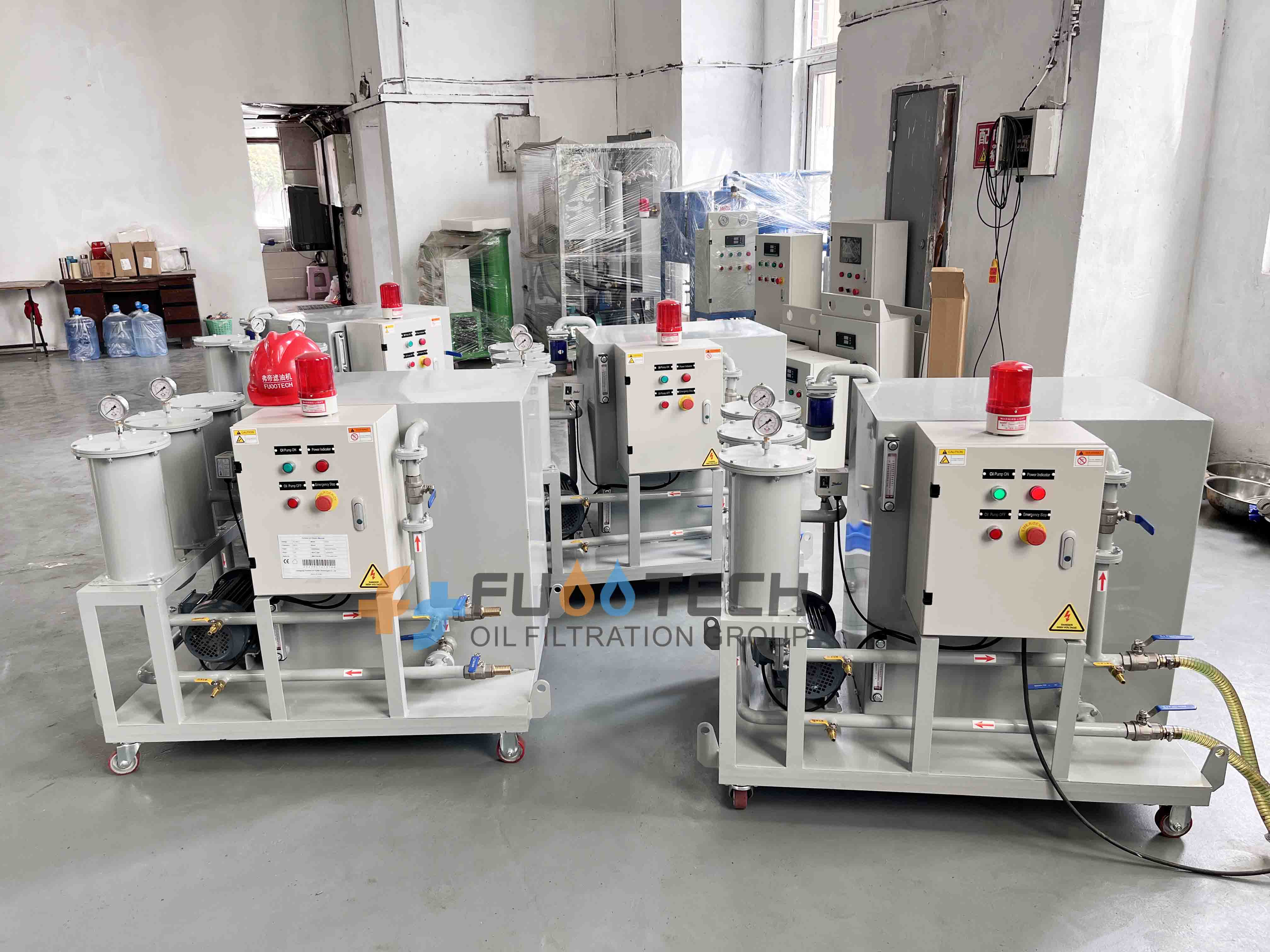

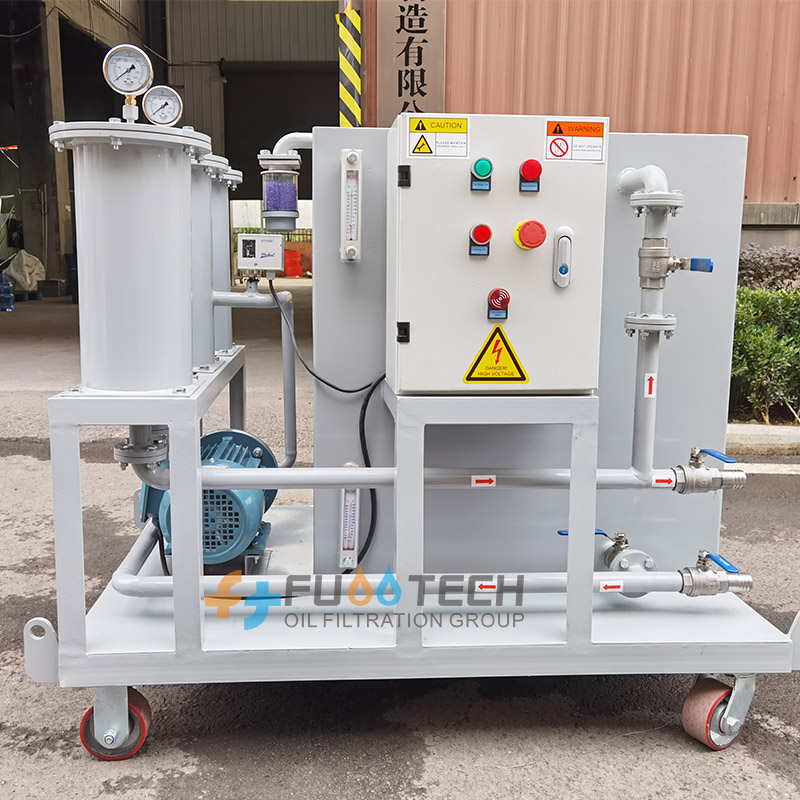

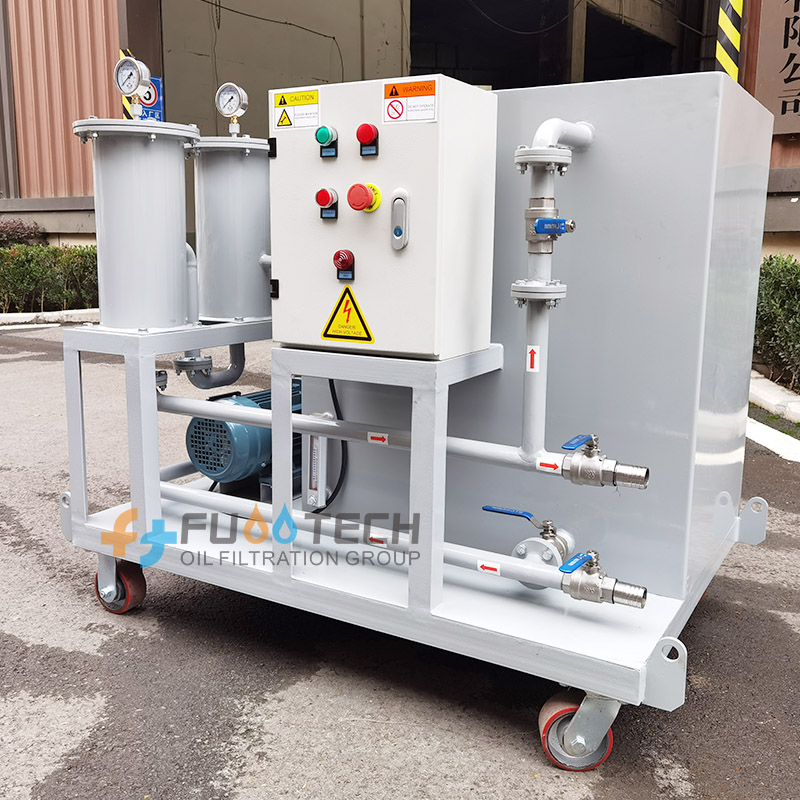

The portable oil filter machine with oil tank can be used to store treated oil. It is also suitable for oiling, replenishing and filtering mechanical equipment. In addition, it can also be used as a buffer tank.

Inquiry Now

Detailed Description

Inquiry Now

		The portable oil filter machine with oil tank can be used to store treated oil. It is also suitable for oiling, replenishing and filtering mechanical equipment. In addition, it can also be used as a buffer tank.



		PO series precision oil purifier cart can finely filter harmful mechanical impurities in oil, and is suitable for medium and low viscosity of turbine oil, transformer oil, hydraulic oil, anti-wear oil, engine oil, gear oil, light oil, etc. Filtration and purification of oil products, multi-stage interception of impurities, oil injection and cleaning of oil system pipelines play a very good role as a helper.


portable oil filter machine working principle:

In view of the cause of pollutants, the whole machine adopts three-stage filtration to remove particles and colloids of different particle sizes in the oil by classification. The gear oil pump is used as the power source of the whole machine, which can fully guarantee the suction and discharge of oil; through the data reflected by the pressure gauges of the filters at all levels, the filters at all levels can be prompted to replace or clean the corresponding filter elements.

Working Process:

The oil to be treated enters the primary filter through the oil inlet valve, and the impurities above 80 μm are effectively
intercepted and attached to the surface of the filter element. The oil then enters the oil pump and is pumped into the secondary filter to remove impurities above 20 μm. The oil passes through the third-stage filter Remove impurities above 10μm and some jelly in the oil, and at the same time, most of the impurities below 10μm are absorbed, and the oil flows out through the check valve.

Equipment technical characteristics:

1. Equipped with three-stage filtration, light and flexible, easy to operate, economical and affordable, no filter paper required, no pollution to the site;

		2. The machine is small, portable and flexible;


		3. Using high-quality filter material, it has a large amount of dirt holding capacity, corrosion resistance, high temperature resistance, good mechanical strength, and high precision of impurity removal;


		4. The mechanical impurities in the oil reach the national new oil standard after being filtered;


5. Provide excellent performance and compact design;

6. The whole machine has high efficiency, low working noise and long service life;

7. This machine can be customized as secondary and tertiary filtration according to customer needs, and the precision of filter elements at all levels can be equipped according to customer requirements;

8. This machine can be customized as a model equipped with a heating device according to the needs of customers, which is suitable for cold regions or oil products with high viscosity.

Technical Parameters

Item	Unit	PO-32	PO-50	PO-100	PO-150	PO-200	PO-300	PO-500		PO-600
Flow rate	L/H	1920	3000	6000	9000	12000	18000	30000		36000
Working Pressure	MPa	≤ 0.4
Pressure when replacing filter	MPa	＞0..2
Operation Temperature	℃	5 ~ 80
Lift	m	5	8	8	10	15	15	18		20
Cleanness	NAS	7	6	6	6	6	5	5		5
After Filtration		Impurity size: ≤ 3 ~ 5 microns
Power supply		380 VAC, 50 Hz, 3 Phase (or as per required)
Working noise	DB (A)	≤ 65 ~ 75
Motor Power	KW	0.75	1.1	1.5	2.5	3	6		9		13
Inlet (outlet) caliber	mm	Ф25	Ф25	Ф25	Ф32	Ф42	Ф50		Ф50		Ф60
Weight	Kg	95	105	120	130	140	160		300		370

Note: 1. The dimension and weight will be changed with changing of technical specs.

2. All the specs can be customized according to client's requirements.
