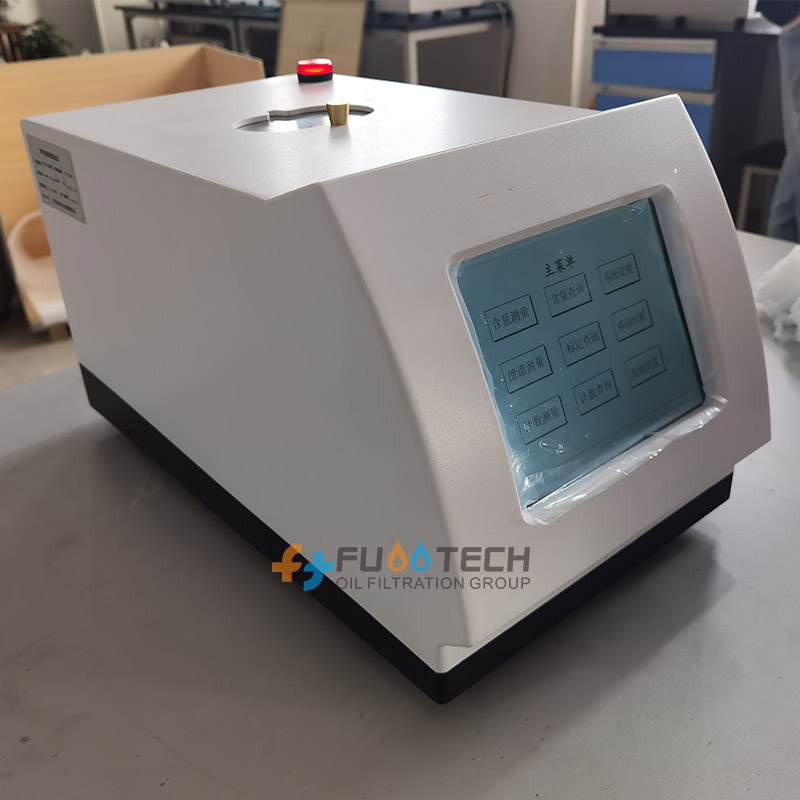

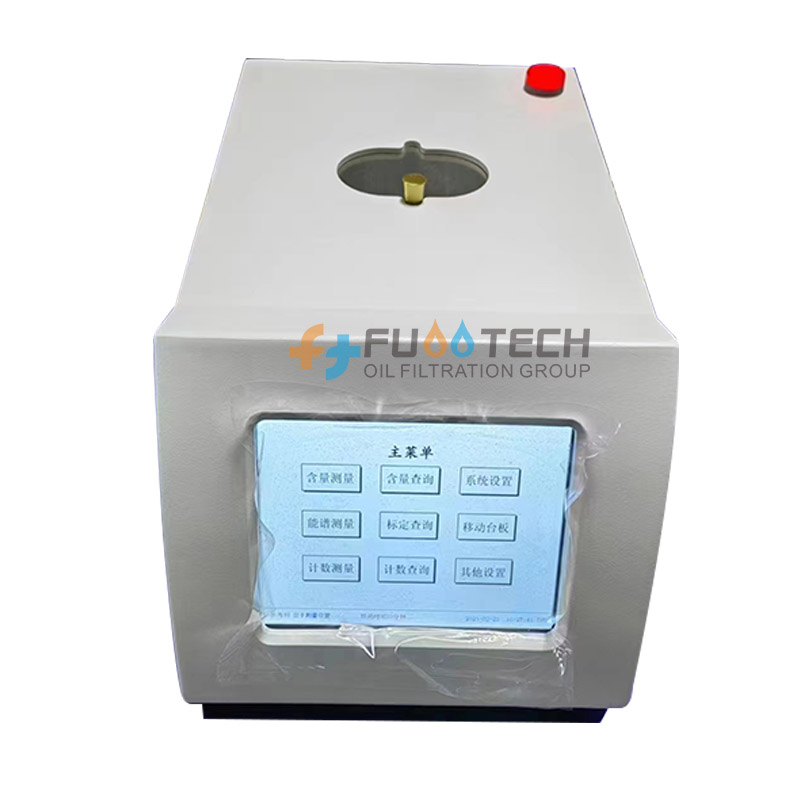

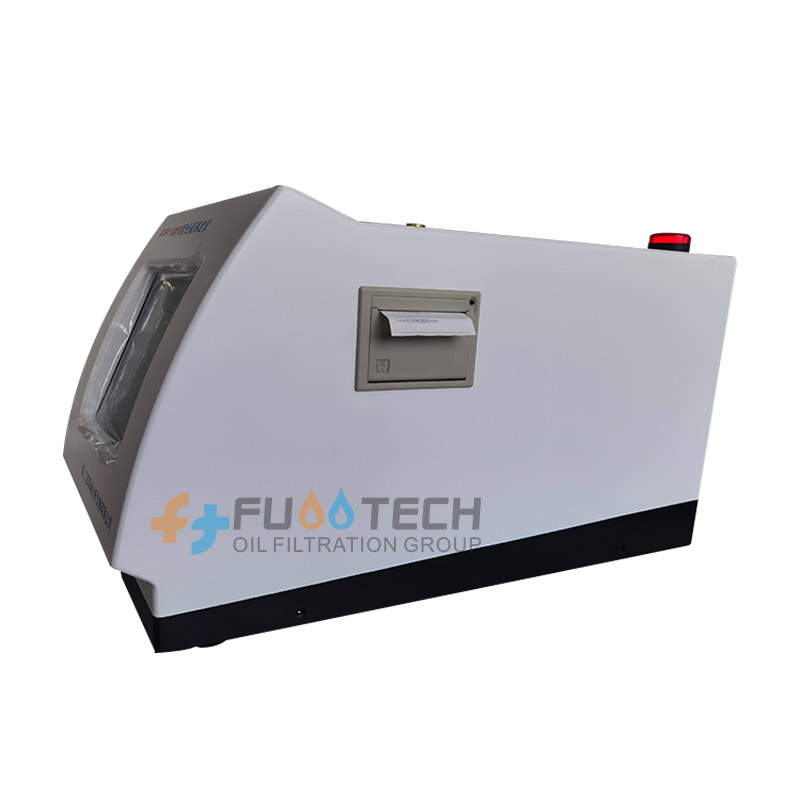

The FTYS-3000 X-ray Fluorescence Sulfur Analyzer produced by our company is a special X-ray fluorescence analyzer developed and manufactured to meet the needs of sulfur content detection in oil products. It adopts the energy dispersion principle, electrical-mechanical-microprocessor integration design, fast analysis speed, and its repeatability and reproducibility meet the testing standards ASTM D4294, GB/T 17040 and GB 11140. It provides an important means for the detection of sulfur content in crude oil or petrochemical production. This analyzer is environmentally friendly and cost effective.
Applications
1. Measure the mass% of total sulfur content in crude oil, petroleum, heavy oil, diesel, kerosene, gasoline, naphtha and other oil products.
2. Measure the total sulfur content in coal chemical products, such as primary benzene.
3. Measure the total sulfur or sulfide content in solid fine powder samples, such as anode carbon blocks, petroleum coke, modified asphalt and other carbon materials.
4. Measure the total sulfur or sulfide content in lubricating oil and petroleum additives.
5. Measure the total sulfur or sulfide content in other liquids.
Technical Parameters
Measurement range
7 ppm ~ 5%
Repeatability (r)
<0.02894 (X+0.1691)
Reproducibility (r)
<0.1215 (X+0.05555)
Oil sample quantity
3 ml (equal to sample depth of 3 mm~4 mm);
Measurement time
30s, 60s, 90s, 120s, 150s, arbitrarily set
Single sample automatic measurement, measurement times
1, 2, 3, 5, 10 times arbitrarily set,
the average value and standard deviation are given after measurement
Calibration curve numbers
Can store 10 calibration curves
Working condition
Ambient temperature: 5~40℃;
Power supply
220V±20V, 50 Hz;
Rated power
50W
Dimensions
460mm×260mm ×260mm
Weight
13 kg
Relative humidity: ≦85% (30 ℃);
Features
1. With electrical-mechanical-microprocessor integration design, compact and beautiful;

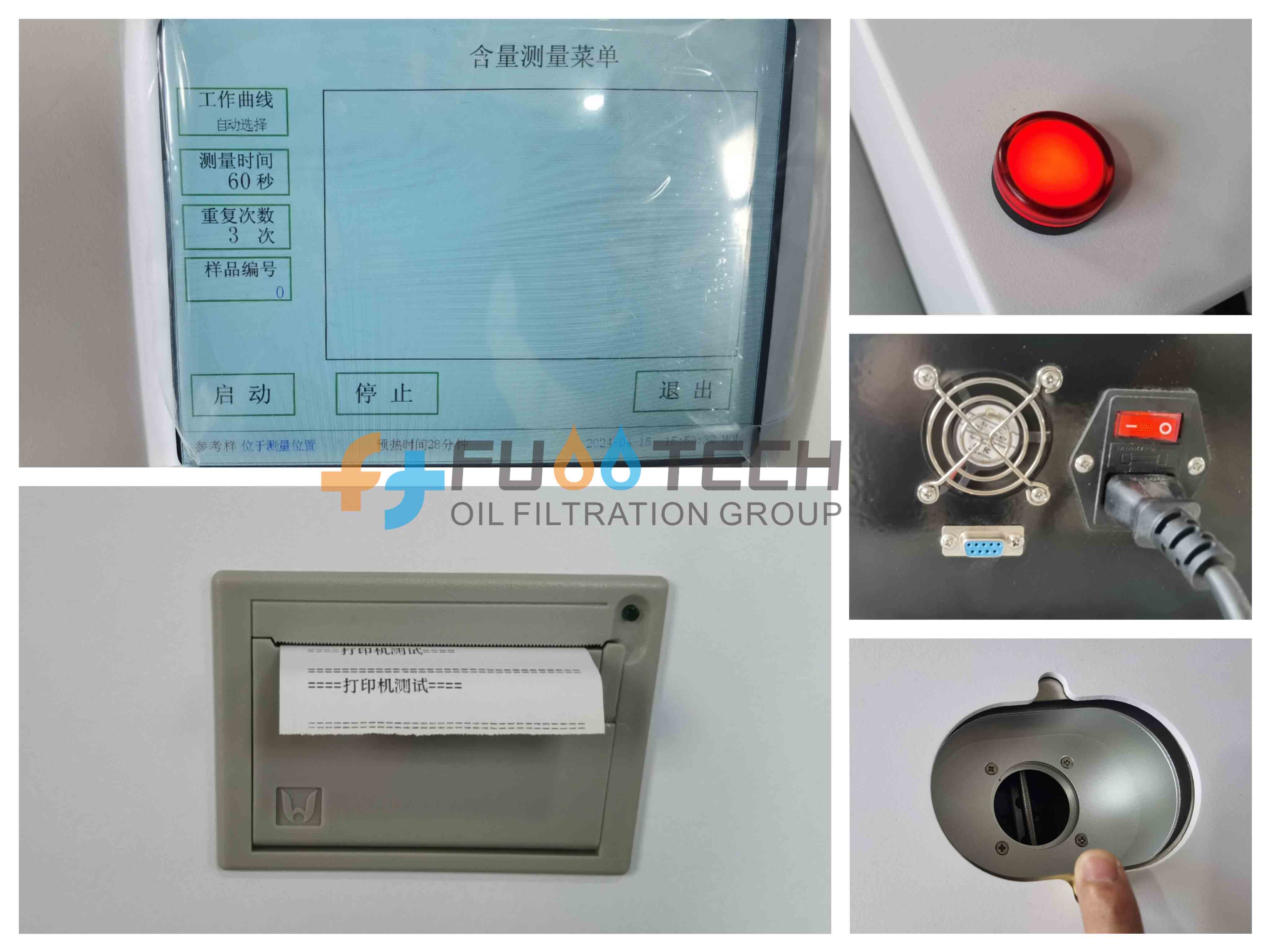

2. With an 8-inch wide-viewing angle capacitive touch screen display. The backlight brightness can be set by software, without a keyboard, and the interface is simple.
3. Wide range of detection products, wide detection range, fast analysis speed, and low consumption of standard samples.
4. Adopts the fluorescence intensity ratio analysis method, temperature and air pressure are automatically corrected, and the carbon-hydrogen ratio (C/H) can also be corrected.
5. The automatic diagnosis function of the instrument can judge the working status and electrical parameters of the instrument.
6. The disposable Mylar film sample cup is used to avoid cross contamination; the sample cup is made of multifunctional pressing parts, which is quick and convenient.
7. The sample holder is accurately positioned, and it is very convenient to place samples and replace oil leakage prevention parts, and avoid the possibility of contamination of the detection system.
