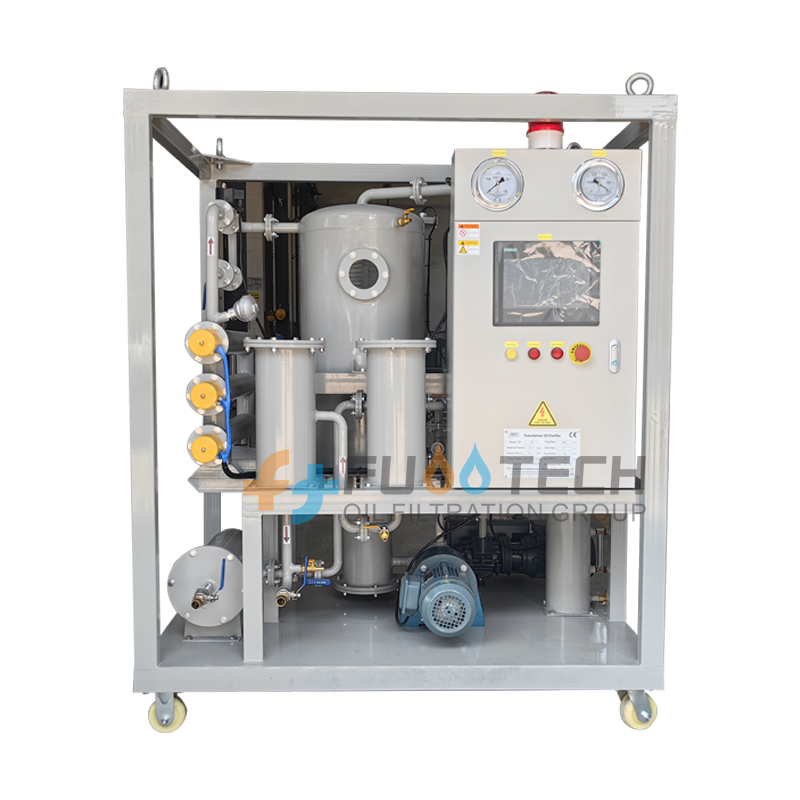

Series Transformer Oil Filtration Machine is mainly designed for the power station, industrial andmining enterprises purifying the unqualified transformer oil when powertransformer below 110 kV, mutual inductor oil, switch oil and so on.
Oil filter machine can remove liquid water, trace water, gas, particles fromoil quickly and effectively, improving oil dielectric strength. Also, it can beused to power equipments to vacuum drying, vacuum oiling, and vacuumpumping.
Features
1). Duplex-Stereo 3D film evaporation technology, combined with unique & advanced dehydration and degassing elements, can rapidly and effectively separate water, gas from oil.
2). Multi-stage precision filtration system, stainless steel filters’ filtration combined with molecular adsorption technologies, remove different sizes of impurities and particles thoroughly.
3). Efficient High density electrical heating system adopts special indirect heating method, heating uniformity, less power consumption, safe, and reliable.
4). Double-safety liquid level controlling system and pressure protective system ensure the machine operation easy and safely.
5). Adopts interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak.
6). Fully automatic temperature controlling system, digital type temperature gauge and temperature sensor, monitoring and controlling oil’s actual heating condition and temperature.
7). Small volume, light weight, easily movable, low maintenance cost and time.
Technical Parameters
|
Parameters |
Unit |
ZY-10 |
ZY-20 |
ZY-30 |
ZY-50 |
ZY-100 |
ZY-150 |
ZY-200 |
ZY-300 |
|
|
Flow rate |
L/H |
600 |
1200 |
1800 |
3000 |
6000 |
9000 |
12000 |
18000 |
|
|
Working vacuum |
MPa |
-0.06 ～ -0.095 |
||||||||
|
Working pressure |
MPa |
≤0.4 |
≤0.5 |
|||||||
|
Working without Trouble |
H |
≥4000 |
||||||||
|
Continuous Working |
H |
≥150 |
||||||||
|
Temperature range |
℃ |
20 ～ 80 |
||||||||
|
Power supply |
|
380V, 3 phase, 50 Hz (or as per your requirements) |
||||||||
|
Working noise |
dB(A) |
≤ 80 |
||||||||
|
Heating power |
KW |
12 |
13 |
15 |
30 |
48 |
60 |
72 |
90 |
|
|
Total power |
KW |
13.5 |
14.5 |
16.5 |
33.5 |
53 |
65 |
76 |
98 |
|
|
Inlet/outlet caliber |
mm |
φ25 |
φ25 |
φ25 |
φ32 |
φ42 |
φ50 |
Φ60 |
φ65 |
|
|
Weight |
Kg |
230 |
250 |
280 |
300 |
550 |
700 |
950 |
1200 |
|
|
Size |
mm |
950× 650× 1050 |
1100× 700× 1350 |
1150× 850× 1450 |
1200× 950× 1580 |
1600× 1000× 1800 |
1650× 1100× 1850 |
1800× 1200× 1900 |
1900× 1200× 2000 |
|
|
After Filtration (Performance) |
Moisture (Water Content) |
≤ 8 PPM |
||||||||
|
Gas Content |
≤0.1% (Vol) |
|||||||||
|
Impurities Degree (Filtration precision) |
≤ 5 micron |
|||||||||
|
Breakdown Voltage (Dielectric) |
≥60 ~ 68 KV |
|||||||||
|
Cleanliness |
≤NAS 1638 Grade 6 |
|||||||||
Note: 1. The dimension and weight will be changed with changing of technical specs.
2. All the specs can be customized according to client's requirements.
